Radiator for 2001-2006 Hyundai Santa Fe - Spectra Premium CU2389

$186.99
WARNING:California Proposition 65▾

Vehicles this part fits

    Part number: CU2389
    UPC: 671607747423
    Condition: New
    Weight: 36.79 LBS
    Item Package Quantity: 1
    $186.99
    Adding to cart… The item has been added

    Have questions?

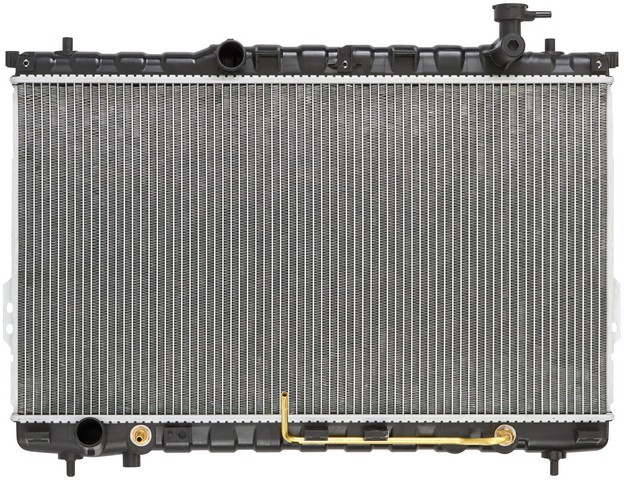

    Spectra Premium Radiator P/N:CU2389
    Spectra Premium Radiator P/N:CU2389
    $186.99
    $186.99

    Spectra Premium CU2389 radiator for the 2001-2006 Hyundai Santa Fe 4-cylinder 2.4L or V6 2.7L moves engine coolant through its core to release heat from the engine. This Spectra Premium radiator is built to take on the same durability and expectations as the OE.

    • Aluminum core with plastic tanks
    • Internal concentric transmission oil cooler with 8mm hose barb fittings
    • Down-flow design with a single core row
    • Inlet at the top left and outlet at the bottom right, each 1.375 in in diameter

    Quick facts

    • Part: Spectra Premium CU2389 radiator
    • Fits: 2001-2006 Hyundai Santa Fe 4-cylinder 2.4L or V6 2.7L
    • Material: aluminum core, plastic tanks
    • Condition: New

    Coolant leaks at the core or tank seams, overheating and a steadily dropping coolant level can all point to a failing radiator. Before you replace the radiator, rule out the thermostat, radiator cap, hoses and water pump, since a fault in any of them can look much the same from the driver's seat.

    Fits

    This is a direct-fit radiator replacement for the 2001-2006 Hyundai Santa Fe 4-cylinder 2.4L or V6 2.7L, which takes one radiator per vehicle. This listing is a single radiator.

    Specifications

    Fit and size

    • Quantity per vehicle: 1
    • Core: 27.875 in wide, 15.75 in high, 0.625 in thick, 1 row
    • Flow type: down flow
    • Inlet: top left, 1.375 in diameter
    • Outlet: bottom right, 1.375 in diameter
    • Inlet and outlet header length: 28.75 in
    • Inlet and outlet header width: 1.9375 in
    • Transmission oil cooler distance between fittings: 17.3125 in
    • Mounting type: post

    Build and materials

    • Core material: aluminum
    • Tank material: plastic
    • Transmission oil cooler: internal, concentric, 8mm hose barb fittings
    • Condition: New
    • Country of origin: Jordan

    In the box

    One radiator with its internal transmission oil cooler. A frame and an engine oil cooler are not included.

    Product information is for general reference and may contain errors. See our Disclaimer.

    Frequently Asked Questions

    Is this the radiator for the 2001-2006 Hyundai Santa Fe 4-cylinder 2.4L or V6 2.7L?

    Yes. The Spectra Premium CU2389 is listed for the 2001-2006 Hyundai Santa Fe with the 4-cylinder 2.4L and the V6 2.7L, and each vehicle takes one.

    Does the Spectra Premium CU2389 include a transmission oil cooler?

    Yes. The Spectra Premium CU2389 has an internal concentric transmission oil cooler with 8mm hose barb fittings. An engine oil cooler and a frame are not included.

    How big is the aluminum core on this radiator, and what are the tanks made of?

    The core is aluminum, 27.875 in wide, 15.75 in high and 0.625 in thick, with one row. The tanks are plastic.

    How can I tell if a radiator with plastic tanks is going bad?

    Coolant on the ground, crusted residue around the core or tank seams, or engine overheating can mean the radiator is failing. A shop can pressure-test the cooling system to confirm.

    Where are the inlet and outlet on this radiator?

    The inlet is at the top left and the outlet at the bottom right, both 1.375 in in diameter. It is a down-flow radiator with post mounting.
