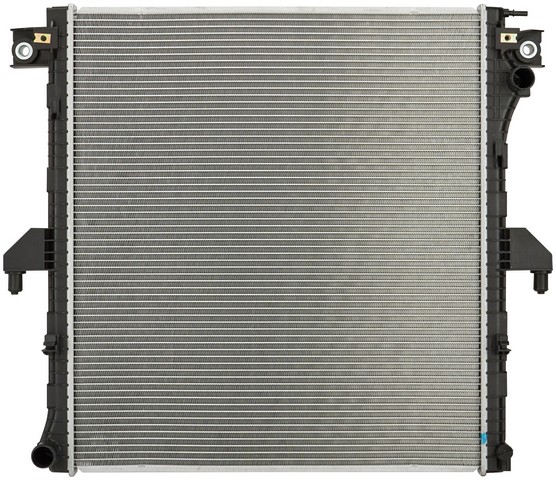

Spectra Premium CU13804 radiator for the 2019-2024 Ford Ranger 4-cylinder 2.3L passes engine heat from the coolant to the air. The structure and design of this Spectra Premium radiator are built to carry the durability and expectations of the OE.
- Aluminum core with plastic tanks
- Cross-flow design with a one-row core
- Inlet and outlet connections with a 1.3125 in diameter, the inlet at the bottom left and the outlet at the top right
- Core measures 26.125 in wide, 23.25 in high and 1.0625 in thick
Quick facts
- Part: Spectra Premium CU13804 radiator
- Fits: 2019-2024 Ford Ranger 4-cylinder 2.3L
- Material: Aluminum core, plastic tanks
- Condition: New
A worn or failing radiator can show up as coolant leaking from the core or tanks, an engine that runs hotter than normal, or a coolant level that keeps dropping, though the thermostat or the water pump can be behind the same signs. Find the cause before replacing the radiator, and check the coolant level only when the engine is cool.
Fits
It is a direct-fit replacement radiator for the 2019-2024 Ford Ranger 4-cylinder 2.3L. That engine takes one radiator, and this listing is one.
Specifications
Fit and size
- Core width: 26.125 in
- Core height: 23.25 in
- Core thickness: 1.0625 in
- Inlet and outlet diameter: 1.3125 in
- Inlet location: bottom left; outlet location: top right
- Inlet and outlet header: 27.125 in long, 1.875 in wide
- Quantity per vehicle: 1
Build and materials
- Type: cross flow, 1 core row
- Core material: aluminum
- Tank material: plastic
- Condition: new
- Country of origin: Indonesia
In the box
One radiator. A frame, an engine oil cooler and a transmission oil cooler are not included.
Interchange: 8013804 · 13804 · 3929 · 2219639 · C13804 · KB3Z8005A · 13804C · A13804 · 4113804 · RA13804C
This part cross-references / interchanges with the following part numbers:
8013804, 13804, 3929, 2219639, C13804, KB3Z8005A, 13804C, A13804, 4113804, RA13804C
Frequently Asked Questions
Is the Spectra Premium CU13804 radiator made for the 2019-2024 Ford Ranger 4-cylinder 2.3L?
Yes. Spectra Premium CU13804 is a direct-fit radiator for the 2019-2024 Ford Ranger 4-cylinder 2.3L, and that engine takes one.
Does this radiator come with a frame or oil coolers?
No. A frame, an engine oil cooler and a transmission oil cooler are not included, and the radiator has no internal oil cooler of either kind.
Are the tanks on the CU13804 radiator plastic or aluminum?
Spectra Premium CU13804 has an aluminum core and plastic tanks. It is a cross-flow design with a one-row core.
How can I check an old radiator for leaks before swapping in the CU13804?
With the engine off and cool, look for wet spots, crusty coolant residue or bent fins on the core and tanks. A shop can pressure-test the cooling system if you cannot see the source.
How big is the core on the Spectra Premium CU13804?
The core is 26.125 in wide, 23.25 in high and 1.0625 in thick. The inlet and outlet connections are each 1.3125 in in diameter.
