Radiator for 2004-2007 Ford Freestar & More - Spectra Premium CU2258

$261.99
WARNING:California Proposition 65▾

Vehicles this part fits

    Part number: CU2258
    UPC: 671607729191
    Condition: New
    Weight: 48.74 LBS
    Item Package Quantity: 1
    $261.99
    Adding to cart… The item has been added

    Have questions?

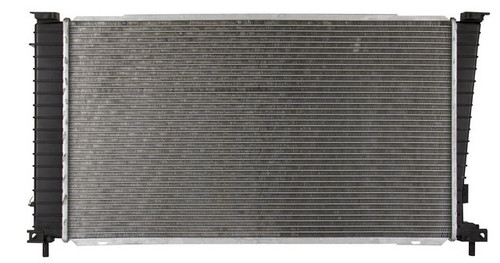

    Spectra Premium Radiator P/N:CU2258
    Spectra Premium Radiator P/N:CU2258
    $261.99
    $261.99

    Spectra Premium CU2258 radiator for the 2004-2007 Ford Freestar V6 3.9L or 4.2L and other vehicles moves heat out of the engine coolant and into the air passing through the core. The structure and design of the Spectra Premium radiator are built to the same durability expectations as the OE.

    • Aluminum core with plastic tanks
    • Cross-flow design with a single-row core 1 inch thick
    • Internal transmission oil cooler with 5 plates and quick-connect fittings
    • Inlet and outlet diameters of 1.5 inch
    • Bottom post and top flange mounting

    Quick facts

    • Part: Spectra Premium CU2258 radiator
    • Fits: 2004-2007 Ford Freestar V6 3.9L or 4.2L and other vehicles
    • Material: Aluminum core, plastic tanks

    A coolant leak at the tanks or core, an engine that runs hot, or coolant that keeps dropping can mean the radiator has failed. Before replacing it, look over the hoses, clamps and fittings for wetness or crusty residue with the engine off and cool, because a leak there can look the same.

    Fits

    This is a radiator for the 2004-2007 Ford Freestar V6 3.9L or 4.2L. It also fits the 2004-2007 Mercury Monterey V6 4.2L, the 1999-2000 Ford Windstar V6 3.0L and the 1999-2003 Windstar V6 3.8L.

    Specifications

    Fit and size

    • Quantity per vehicle: 1
    • Core: 29.875 inch high, 16.8125 inch wide, 1 inch thick, 1 row
    • Inlet header: 18.25 inch long, 1.875 inch wide
    • Outlet header: 18.25 inch long, 3.0625 inch wide
    • Inlet diameter: 1.5 inch; outlet diameter: 1.5 inch
    • Inlet location: top left; outlet location: bottom right
    • Mounting type: bottom post / top flange
    • Transmission oil cooler: 12 inch between fittings

    Build and materials

    • Type: cross flow
    • Core material: aluminum
    • Tank material: plastic
    • Transmission oil cooler: internal, plated, 5 plates, quick-connect fittings
    • Country of origin: Canada

    In the box

    One radiator with its internal transmission oil cooler; each vehicle takes one. A frame and an engine oil cooler are not included.

    Product information is for general reference and may contain errors. See our Disclaimer.

    Frequently Asked Questions

    Is CU2258 a radiator for the 2004-2007 Mercury Monterey V6 4.2L?

    Yes. Spectra Premium CU2258 fits the 2004-2007 Mercury Monterey V6 4.2L.

    Does this work as a radiator for the 1999-2003 Ford Windstar V6 3.8L?

    Yes. Spectra Premium CU2258 fits the 1999-2003 Windstar V6 3.8L and also the 1999-2000 Windstar V6 3.0L.

    Does this radiator include a transmission oil cooler?

    Yes. This radiator has an internal transmission oil cooler with quick-connect fittings. A frame and an engine oil cooler are not included.

    What is this radiator made of?

    The core is aluminum and the tanks are plastic. It is a cross-flow radiator with a single-row core.

    What are the inlet and outlet diameters on this radiator?

    Spectra Premium CU2258 has a 1.5 inch inlet at the top left and a 1.5 inch outlet at the bottom right. The core is 29.875 inch high by 16.8125 inch wide.
