Radiator for 1999-2013 Chevrolet Silverado 1500 & More - Spectra Premium CU2334

$194.99
WARNING:California Proposition 65▾

Vehicles this part fits

    Part number: CU2334
    UPC: 671607741421
    Condition: New
    Weight: 37.70 LBS
    Item Package Quantity: 1
    $194.99
    Adding to cart… The item has been added

    Have questions?

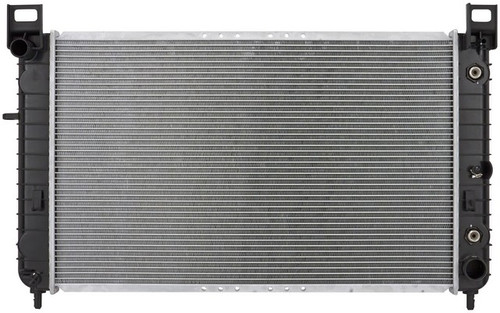

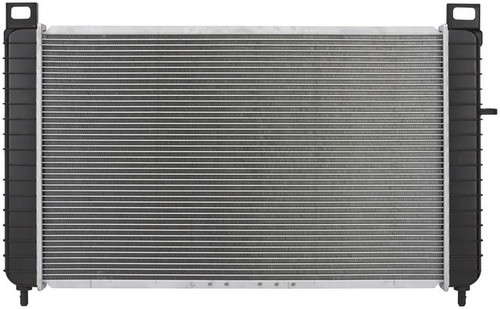

    Spectra Premium Radiator P/N:CU2334
    Spectra Premium Radiator P/N:CU2334
    $194.99
    $194.99

    Spectra Premium CU2334 radiator for the 1999-2004 Chevrolet Silverado 1500 V6 4.3L, the 1999-2013 Silverado 1500 V8 4.8L or 5.3L, the 2009-2012 Silverado 1500 V6 4.3L and other vehicles passes engine coolant through its core so airflow can carry the heat away. The structure and design are built to the same durability and expectations as the OE radiator.

    • Aluminum core with plastic tanks
    • Cross-flow, single-row core, 28.25 in high, 17.25 in wide and 1 in thick
    • Built-in plated transmission oil cooler with 5/8-18 UNF female fittings
    • Inlet at the top left and outlet at the bottom right
    • Bottom post and top flange mounting

    Quick facts

    • Part: Spectra Premium CU2334 radiator
    • Fits: the 1999-2004 Chevrolet Silverado 1500 V6 4.3L, the 1999-2013 Silverado 1500 V8 4.8L or 5.3L, the 2009-2012 Silverado 1500 V6 4.3L and other vehicles
    • Material: Aluminum core, plastic tanks
    • Condition: New

    Before you replace the radiator, rule out the thermostat, hoses, clamps and radiator cap, because coolant leaks, overheating and a low coolant level can come from any of them. If the radiator is the cause, this one replaces it.

    Fits

    The vehicles it fits include the 1999-2013 Chevrolet Silverado 2500 V8 5.3L and the 1999-2004 GMC Sierra 1500 V6 4.3L, and a single radiator covers each of them.

    Specifications

    Fit and size

    • Quantity per vehicle: 1
    • Core height: 28.25 in
    • Core width: 17.25 in
    • Core thickness: 1 in
    • Core rows: 1
    • Inlet diameter: 1.3125 in
    • Outlet diameter: 1.5625 in
    • Inlet header: 20.25 in long, 2.4375 in wide
    • Outlet header: 20.25 in long, 2.4375 in wide
    • Inlet location: top left
    • Outlet location: bottom right
    • Mounting type: bottom post / top flange
    • Transmission oil cooler fittings: 5/8-18 UNF female, 11.5 in apart

    Build and materials

    • Flow type: cross flow
    • Core material: aluminum
    • Tank material: plastic
    • Transmission oil cooler: built in, plated, 3 plates
    • Engine oil cooler: none built in
    • Condition: new
    • Country of origin: China

    In the box

    One radiator with its built-in transmission oil cooler. A frame and an engine oil cooler are not included.

    Product information is for general reference and may contain errors. See our Disclaimer.

    Frequently Asked Questions

    Is the CU2334 a 2000 Chevy Silverado 1500 radiator for the 1999-2013 V8 4.8L or 5.3L?

    Yes. Spectra Premium CU2334 fits the 1999-2013 Chevrolet Silverado 1500 V8 4.8L or 5.3L, plus the 1999-2004 V6 4.3L. If your truck is not named here, look it up in the "Vehicles it fits" section.

    Is this the right GMC Sierra 1500 radiator for the 1999-2004 V6 4.3L?

    Yes. This radiator fits the 1999-2004 GMC Sierra 1500 V6 4.3L and the 1999-2006 Sierra 1500 V8 4.8L or 5.3L, and the truck needs one radiator.

    What is this Spectra Premium radiator made of?

    Spectra Premium CU2334 has an aluminum core and plastic tanks. It is a cross-flow radiator with a single core row.

    Does the CU2334 radiator have a built-in transmission oil cooler?

    Yes. This radiator has a built-in plated transmission oil cooler with three plates and 5/8-18 UNF female fittings spaced 11.5 in apart, and no built-in engine oil cooler.

    Does this radiator come with a frame or an engine oil cooler?

    No. This radiator comes as one unit with its built-in transmission oil cooler. A frame and an engine oil cooler are not included.
