Radiator for 2002-2005 Kia Sedona - Spectra Premium CU2442

$289.99
WARNING:California Proposition 65▾

Vehicles this part fits

    Part number: CU2442
    UPC: 671607747492
    Condition: New
    Weight: 54.02 LBS
    Item Package Quantity: 1
    $289.99
    Adding to cart… The item has been added

    Have questions?

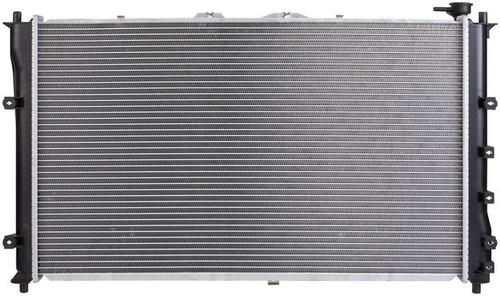

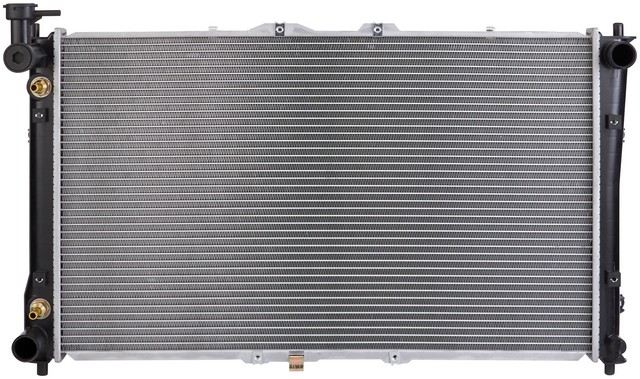

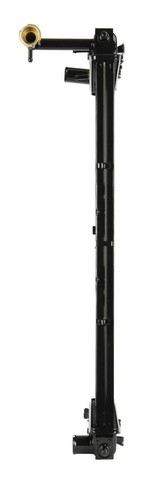

    Spectra Premium Radiator P/N:CU2442
    Spectra Premium Radiator P/N:CU2442
    $289.99
    $289.99

    Spectra Premium CU2442 radiator for the 2002-2005 Kia Sedona V6 3.5L moves engine coolant through its core to release engine heat. The Spectra Premium radiator is built to take on the same durability and expectations as the OE.

    • Single-row aluminum core, 27.6875 in high, 16.4375 in wide and 1.25 in thick
    • Plastic tanks on a cross-flow design, with the inlet at the top right and the outlet at the bottom right
    • Internal concentric transmission oil cooler with 10mm hose barb fittings
    • Inlet and outlet diameters of 1.375 in each
    • Post mounting type

    Quick facts

    • Part: Spectra Premium CU2442 radiator
    • Fits: 2002-2005 Kia Sedona V6 3.5L
    • Material: Aluminum core, plastic tanks
    • Condition: New

    Coolant stains on the core or tanks, a temperature gauge that climbs, or a falling coolant level can mean the radiator is wearing out, though a faulty thermostat or water pump can also be behind overheating, so find the cause before you replace it.

    Fits

    This is a direct-fit radiator for the 2002-2005 Kia Sedona V6 3.5L, and the vehicle takes one. This listing is a single radiator.

    Specifications

    Fit and size

    • Quantity per vehicle: 1
    • Core height: 27.6875 in
    • Core width: 16.4375 in
    • Core thickness: 1.25 in
    • Core rows: 1
    • Inlet diameter: 1.375 in
    • Outlet diameter: 1.375 in
    • Inlet location: top right; outlet location: bottom right
    • Header length: 17.5625 in; header width: 2.3125 in (inlet and outlet)
    • Transmission oil cooler fittings: hose barb 10mm, 11.625 in between fittings
    • Flow type: cross flow
    • Mounting type: post

    Build and materials

    • Core material: aluminum
    • Tank material: plastic
    • Transmission oil cooler: included, internal, concentric
    • Condition: new
    • Country of origin: China

    In the box

    One radiator with its transmission oil cooler built in. A frame and an engine oil cooler are not included.

    Interchange: 2442 · 24642793620462883 · 8012442 · AR2442 · RK948 · 2934 · C2442 · A2442 · 2442C · RAD2442 · 0K52Y15200B · 0K52Y15200C · 0K52Y15200D · 2693 · 432636 · NR2442A · 2480701 · OR2442 · KI3010113 · 2704 · 412442 · 9571A · 9932

    Product information is for general reference and may contain errors. See our Disclaimer.

    This part cross-references / interchanges with the following part numbers:

    2442, 24642793620462883, 8012442, AR2442, RK948, 2934, C2442, A2442, 2442C, RAD2442, 0K52Y15200B, 0K52Y15200C, 0K52Y15200D, 2693, 432636, NR2442A, 2480701, OR2442, KI3010113, 2704, 412442, 9571A, 9932

    Frequently Asked Questions

    Is this a radiator replacement for the 2002-2005 Kia Sedona V6 3.5L?

    Yes. Spectra Premium CU2442 is a radiator for the 2002-2005 Kia Sedona V6 3.5L, and that vehicle takes one.

    What size are the inlet and outlet on this radiator?

    Both the inlet and the outlet are 1.375 inches in diameter. The inlet is at the top right and the outlet at the bottom right.

    Does this radiator include a transmission oil cooler?

    Yes. This radiator has an internal concentric transmission oil cooler with 10mm hose barb fittings. A frame and an engine oil cooler are not included.

    How can I check a radiator for leaks?

    With the engine off and cool, look for coolant stains, wet spots or cracks on the core and tanks. A shop can pressure-test the cooling system if you can't see the source.

    What is the Spectra Premium CU2442 radiator made of?

    Spectra Premium CU2442 has a single-row aluminum core with plastic tanks. It is a cross-flow design that mounts by post.
