Radiator for 2003-2004 Cadillac CTS - Spectra Premium CU2565

$274.99
WARNING:California Proposition 65▾

Vehicles this part fits

    Part number: CU2565
    UPC: 671607749632
    Condition: New
    Weight: 38.27 LBS
    Item Package Quantity: 1
    $274.99
    Adding to cart… The item has been added

    Have questions?

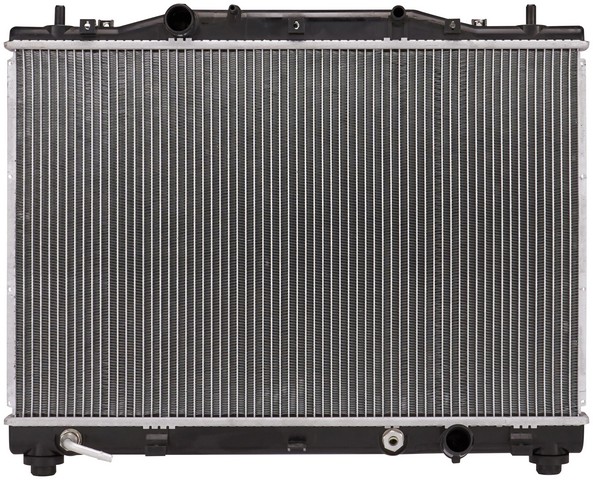

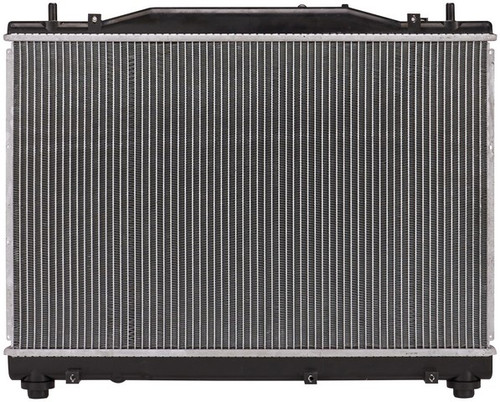

    Spectra Premium Radiator P/N:CU2565
    Spectra Premium Radiator P/N:CU2565
    $274.99
    $274.99

    Spectra Premium CU2565 radiator for the 2003-2004 Cadillac CTS V6 3.2L cools engine coolant as it passes through the core. The structure and design of the Spectra Premium radiator are built to carry the same durability and expectations as the OE.

    • Single-row aluminum core with plastic tanks
    • Cross-flow layout with the inlet at top left and the outlet at bottom right
    • Built-in transmission oil cooler with four plates and 9.5 mm hose barb fittings
    • Inlet and outlet diameters of 1.375 in each

    Quick facts

    • Part: Spectra Premium CU2565 radiator
    • Fits: 2003-2004 Cadillac CTS V6 3.2L
    • Material: aluminum core, plastic tanks
    • Condition: New

    Coolant seepage, a temperature gauge that climbs or a cracked plastic tank can mean the radiator is worn, though a thermostat or a water pump can be behind overheating too, so find the cause before you replace anything.

    Fits

    This radiator fits the 2003-2004 Cadillac CTS V6 3.2L, which takes one.

    Specifications

    Fit and size

    • Quantity per vehicle: 1
    • Core size: 25.875 in wide, 16.75 in high, 1 in thick
    • Inlet and outlet header: 26.6875 in long, 1.875 in wide
    • Inlet diameter: 1.375 in
    • Outlet diameter: 1.375 in
    • Inlet location: top left
    • Outlet location: bottom right
    • Transmission oil cooler fitting distance: 15 in

    Build and materials

    • Core material: aluminum
    • Tank material: plastic
    • Flow type: cross flow, 1 core row
    • Transmission oil cooler: built in, plated type, 4 plates, 9.5 mm hose barb fittings
    • Condition: New
    • Country of origin: Cambodia

    In the box

    One radiator with a built-in transmission oil cooler. An engine oil cooler and a frame are not included.

    Product information is for general reference and may contain errors. See our Disclaimer.

    Frequently Asked Questions

    Is this the right radiator for the 2003-2004 Cadillac CTS V6 3.2L?

    Yes. Spectra Premium CU2565 fits the 2003-2004 Cadillac CTS V6 3.2L, and that car takes one radiator.

    Does this radiator include a transmission oil cooler?

    Yes. The Spectra Premium CU2565 has a built-in plated transmission oil cooler with 9.5 mm hose barb fittings. An engine oil cooler and a frame are not included.

    Where are the inlet and outlet on this radiator, and what size are they?

    The inlet is at the top left and the outlet is at the bottom right. Both are 1.375 in in diameter.

    Is this radiator aluminum or plastic?

    The core is aluminum and the tanks are plastic. It is a single-row, cross-flow design with a core 25.875 in wide and 16.75 in high.

    What should I look for on the plastic tanks of this radiator?

    With the engine off and cool, look for cracks, coolant stains or wet spots at the tanks and core. A shop can pressure-test the cooling system if you are unsure.
