Radiator for 2004-2006 Lexus RX330 - Spectra Premium CU2689

$299.99
WARNING:California Proposition 65▾

Vehicles this part fits

    Part number: CU2689
    UPC: 671607749762
    Condition: New
    Weight: 28.50 LBS
    Item Package Quantity: 1
    $299.99
    Adding to cart… The item has been added

    Have questions?

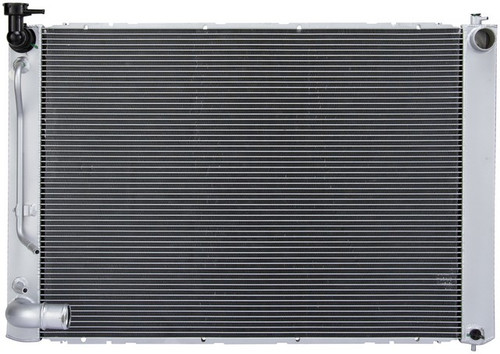

    Spectra Premium Radiator P/N:CU2689
    Spectra Premium Radiator P/N:CU2689
    $299.99
    $299.99

    Spectra Premium CU2689 radiator for the 2004-2006 Lexus RX330 V6 3.3L passes hot engine coolant through its core to shed heat. This Spectra Premium radiator is built to the same durability and expectations as the OE.

    • Cross-flow design with the inlet at the top right and the outlet at the bottom right
    • Internal plated transmission oil cooler with two plates
    • Transmission oil cooler fittings are 10mm hose barbs, 13.75 in apart
    • Saddle mounting type

    Quick facts

    • Part: Spectra Premium CU2689 radiator
    • Fits: 2004-2006 Lexus RX330 V6 3.3L
    • Material: Aluminum
    • Condition: New

    Coolant seepage at the core or tanks, a rising temperature gauge or a low coolant level (check it only with the engine cool) can mean the radiator is failing. A stuck thermostat, a weak water pump or a worn radiator cap can cause overheating too, so find the cause before buying a new radiator.

    Fits

    This is a direct-fit radiator replacement for the 2004-2006 Lexus RX330 V6 3.3L, which takes one per vehicle.

    Specifications

    Fit and size

    • Quantity per vehicle: 1
    • Core height: 26.375 in
    • Core width: 19.1875 in
    • Core thickness: 0.875 in
    • Core rows: 1
    • Inlet diameter: 1.3125 in
    • Outlet diameter: 1.5 in
    • Inlet and outlet header: 19.75 in long, 1.125 in wide

    Build and materials

    • Core and tank material: Aluminum
    • Condition: New
    • Country of origin: Indonesia

    In the box

    One radiator with its internal transmission oil cooler. A frame and an engine oil cooler are not included.

    Interchange: 2689 · 8012689 · 3712 · C2689 · 2219387 · B2689 · RAD2689 · RAD2689P · A2689 · A26891 · 1604120310 · 1604120311 · 1604120312 · OR2689 · 2391 · 2940 · 412689 · 433863 · 9983 · RA2689C

    Product information is for general reference and may contain errors. See our Disclaimer.

    This part cross-references / interchanges with the following part numbers:

    2689, 8012689, 3712, C2689, 2219387, B2689, RAD2689, RAD2689P, A2689, A26891, 1604120310, 1604120311, 1604120312, OR2689, 2391, 2940, 412689, 433863, 9983, RA2689C

    Frequently Asked Questions

    Is this the right radiator for a 2004 Lexus RX330 V6 3.3L?

    Yes. Spectra Premium CU2689 is a direct-fit radiator for the 2004-2006 Lexus RX330 V6 3.3L, which takes one per vehicle.

    Does this radiator replacement work on a 2006 Lexus RX330 V6 3.3L?

    Yes. The 2006 model year is inside the 2004-2006 Lexus RX330 V6 3.3L range this radiator covers.

    Does this radiator have a built-in transmission oil cooler?

    Yes. Spectra Premium CU2689 has an internal plated transmission oil cooler with 10mm hose barb fittings. An engine oil cooler is not included.

    Is a frame included with this aluminum radiator?

    No. The radiator comes without a frame, and the engine oil cooler is not included. The transmission oil cooler is built into the radiator.

    Are the inlet and outlet sizes different on this radiator?

    Yes. The inlet is 1.3125 in in diameter at the top right, and the outlet is 1.5 in in diameter at the bottom right.
