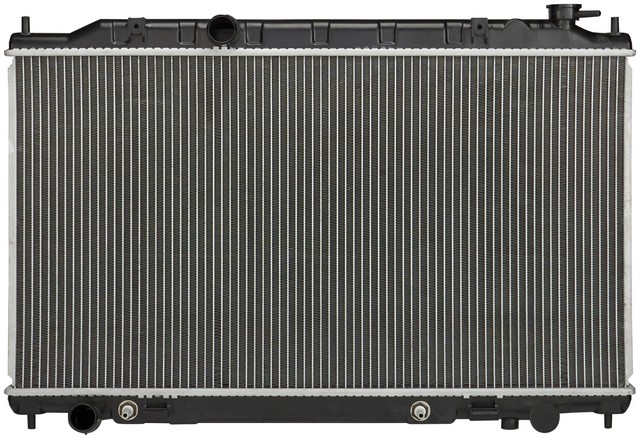

Spectra Premium CU2414 radiator for the 2002-2006 Nissan Altima 4-cylinder 2.5L cools the engine's coolant as it flows through the core. Its structure and design are built to the same durability and expectations as the OE.
- Aluminum core with plastic tanks
- Down flow layout with the inlet at the top left and the outlet at the bottom left
- Internal concentric transmission oil cooler with 8 mm hose barb fittings
- Inlet and outlet diameters of 1.375 in
- Post-type mounting
Quick facts
- Part: Spectra Premium CU2414 radiator
- Fits: 2002-2006 Nissan Altima 4-cylinder 2.5L
- Material: aluminum core, plastic tanks
- Condition: New
A coolant leak, a temperature gauge that climbs or a coolant level that keeps dropping can mean the radiator is failing. Before you replace the radiator, rule out a stuck thermostat, a failed cooling fan, a loose hose clamp or a leaking water pump, since those can look like a bad radiator. Check the coolant level only with the engine cool. The cooling system has a single radiator, and this listing is one.
Fits
This radiator is a direct-fit replacement for the 2002-2006 Nissan Altima with the L4-2.5L engine.
Specifications
Fit and size
- Quantity per vehicle: 1
- Core: 29.0625 in wide, 15.75 in high, 0.625 in thick, 1 row
- Inlet: top left, 1.375 in diameter
- Outlet: bottom left, 1.375 in diameter
- Inlet and outlet headers: 29.9375 in long, 2 in wide
- Transmission oil cooler fittings: hose barb 8 mm, 13.75 in apart
- Mounting type: post
Build and materials
- Flow type: down flow
- Core material: aluminum
- Tank material: plastic
- Transmission oil cooler: internal, concentric
- Condition: new
- Country of origin: Canada
In the box
One radiator with its built-in transmission oil cooler. A frame and an engine oil cooler are not included.
Product information is for general reference and may contain errors. See our Disclaimer.
Frequently Asked Questions
Does the Spectra Premium CU2414 fit the 2002-2006 Nissan Altima 4-cylinder 2.5L?
Yes. Spectra Premium CU2414 is a direct-fit radiator for the 2002-2006 Nissan Altima 4-cylinder 2.5L, and the car takes one.
Does this radiator come with a frame or an engine oil cooler?
No. Spectra Premium CU2414 does not include a frame or an engine oil cooler. It does include an internal transmission oil cooler.
What fittings does the transmission oil cooler on this radiator use?
The concentric transmission oil cooler uses 8 mm hose barb fittings, set 13.75 in apart.
How do I check a radiator for leaks or damage?
With the engine off and cool, look for coolant stains, wet spots, cracks in the plastic tanks or corrosion on the core. A shop can pressure-test the cooling system.
Is this Spectra Premium radiator down flow or cross flow?
It is a down flow radiator with a single-row aluminum core, the inlet at the top left and the outlet at the bottom left.
