Radiator for 2004-2008 Ford F-150 & More - Spectra Premium CU2819

$254.99
WARNING:California Proposition 65▾

Vehicles this part fits

    Part number: CU2819
    UPC: 671607753042
    Condition: New
    Weight: 36.63 LBS
    Item Package Quantity: 1
    $254.99
    Adding to cart… The item has been added

    Have questions?

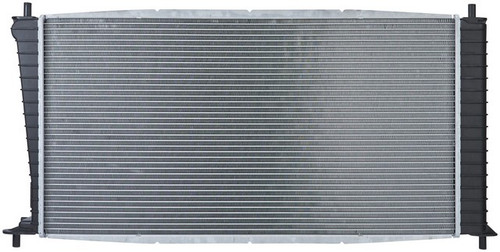

    Spectra Premium Radiator P/N:CU2819
    Spectra Premium Radiator P/N:CU2819
    $254.99
    $254.99

    Spectra Premium CU2819 radiator for the 2004-2005 Ford F-150 V6 4.2L, the 2005-2008 F-150 V8 4.6L or 5.4L and other vehicles cools the engine by passing hot coolant through its core. This Spectra Premium radiator is built to the same durability expectations as the OE part.

    • Aluminum core, one row, 16.875 in wide and 1.25 in thick
    • Plastic tanks with a 1.75 in inlet and a 1.5 in outlet
    • Cross-flow layout with the inlet at the top right and the outlet at the bottom right
    • Built-in transmission oil cooler with 5 plates and M18x1.5 female fittings
    • Post mounting type

    Quick facts

    • Part: Spectra Premium CU2819 radiator
    • Fits: the 2004-2005 Ford F-150 V6 4.2L, the 2005-2008 F-150 V8 4.6L or 5.4L and other vehicles
    • Material: aluminum core, plastic tanks
    • Condition: New

    A failing radiator can show up as coolant drips or stains at the tanks or core, a coolant level that keeps dropping, or an engine temperature that climbs. Before you replace the radiator, rule out a loose hose, a worn radiator cap and a sticking thermostat, since any of them could produce similar symptoms. A shop can pressure-test the system.

    Fits

    The 2005-2006 Ford Expedition V8 5.4L and the 2005-2008 Ford Lobo V8 4.6L or 5.4L are among the other vehicles it fits, and each takes one radiator. Open the "Vehicles it fits" section to check your exact model and engine.

    Specifications

    Fit and size

    • Quantity per vehicle: 1
    • Core width: 16.875 in
    • Core thickness: 1.25 in
    • Core rows: 1
    • Inlet and outlet headers: 17.375 in long, 3.125 in wide
    • Inlet diameter: 1.75 in
    • Outlet diameter: 1.5 in
    • Inlet location: top right; outlet location: bottom right
    • Transmission oil cooler fitting distance: 12 in
    • Mounting type: post

    Build and materials

    • Core material: aluminum
    • Tank material: plastic
    • Flow type: cross flow
    • Transmission oil cooler: internal, plated, 5 plates, M18x1.5 female fittings
    • Condition: new
    • Country of origin: China

    In the box

    One radiator with its built-in transmission oil cooler. A frame and an engine oil cooler are not included.

    Product information is for general reference and may contain errors. See our Disclaimer.

    Frequently Asked Questions

    Is this one of the Ford F-150 radiators that fits a 2005-2008 Ford F-150 V8 5.4L?

    Yes, Spectra Premium CU2819 fits the 2005-2008 Ford F-150 V8 4.6L or 5.4L and the 2004-2005 F-150 V6 4.2L; open the "Vehicles it fits" section to check your exact model and engine.

    Is CU2819 a Ford Expedition radiator for 2005-2006 models with the V8 5.4L?

    Yes, Spectra Premium CU2819 fits the 2005-2006 Ford Expedition V8 5.4L, and that vehicle takes one radiator.

    How are the inlet and outlet laid out on this cross-flow radiator?

    This radiator is cross flow. The inlet is at the top right with a 1.75 in diameter, and the outlet is at the bottom right with a 1.5 in diameter.

    Does this radiator have a transmission oil cooler built in?

    Yes, Spectra Premium CU2819 has an internal transmission oil cooler with 5 plates and M18x1.5 female fittings set 12 in apart; an engine oil cooler is not included.

    What can a leaking aluminum-core radiator look like?

    Coolant drips or stains at the plastic tanks or the core, a falling coolant level or an engine running hot can all point to a leak. Check the level only when the engine is cool.
