Radiator for 2006-2011 Chevrolet Impala & More - Spectra Premium CU2837

$252.99
WARNING:California Proposition 65▾

Vehicles this part fits

    Part number: CU2837
    UPC: 671607761375
    Condition: New
    Weight: 29.22 LBS
    Item Package Quantity: 1
    $252.99
    Adding to cart… The item has been added

    Have questions?

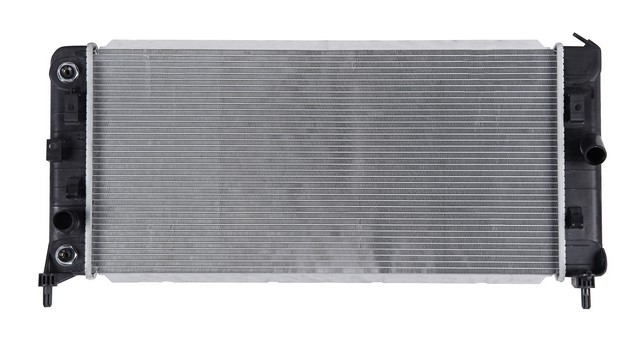

    Spectra Premium Radiator P/N:CU2837
    Spectra Premium Radiator P/N:CU2837
    $252.99
    $252.99

    Spectra Premium CU2837 radiator for the 2006-2009 Chevrolet Impala V8 5.3L, the 2006-2011 Impala V6 3.5L or 3.9L and other vehicles carries hot engine coolant through an aluminum core to shed heat. Spectra Premium radiators are built to the same durability and expectations as the OE.

    • Aluminum core with plastic tanks
    • Cross-flow design with a single-row core
    • Internal transmission oil cooler with 3 plates and Quick Connect fittings
    • Bottom Post / Top Saddle mounting

    Quick facts

    • Part: Spectra Premium CU2837 radiator
    • Fits: the 2006-2009 Chevrolet Impala V8 5.3L, the 2006-2011 Impala V6 3.5L or 3.9L and other vehicles
    • Material: Aluminum core, plastic tanks
    • Condition: New

    Coolant seeping from the core or tanks, an engine that runs hot or steady coolant loss can point to a failing radiator. Before you replace it, rule out a worn cap, a collapsed hose, a stuck thermostat or a weak water pump, since any of them can also push the temperature gauge up.

    Fits

    The radiator is listed for a wide range of Chevrolet, Buick and Pontiac models, including the 2008-2009 Buick LaCrosse V8 5.3L and the 2008-2009 Buick Allure V8 5.3L, and a car takes one radiator.

    Specifications

    Fit and size

    • Quantity per vehicle: 1
    • Core size: 29.3125 in high, 14.125 in wide, 0.875 in thick
    • Inlet and outlet diameter: 1.3125 in each
    • Inlet and outlet headers: 15 in long, 2 in wide
    • Inlet location: Bottom left
    • Mounting type: Bottom Post / Top Saddle
    • Transmission oil cooler fitting distance: 11.5 in

    Build and materials

    • Core material: Aluminum
    • Tank material: Plastic
    • Flow type: Cross flow, 1 core row
    • Transmission oil cooler: Internal, plated, Quick Connect fittings
    • Condition: New
    • Country of origin: China

    In the box

    One radiator with its built-in transmission oil cooler. A frame and an engine oil cooler are not included.

    Interchange: 103026 · 10182343109171100 · 21576 · 8012837 · AR2837 · RK1136 · 2837 · C2837 · 0AGM5785 · 2219088 · B2837 · 15140592 · 2837C · RAD2837 · A2837 · 2402837 · OR2837 · 2376 · 412837 · 432441 · RA2837C

    Product information is for general reference and may contain errors. See our Disclaimer.

    This part cross-references / interchanges with the following part numbers:

    103026, 10182343109171100, 21576, 8012837, AR2837, RK1136, 2837, C2837, 0AGM5785, 2219088, B2837, 15140592, 2837C, RAD2837, A2837, 2402837, OR2837, 2376, 412837, 432441, RA2837C

    Frequently Asked Questions

    Is this radiator right for a 2006-2009 Chevy Impala V8 5.3L?

    Yes, Spectra Premium CU2837 is listed for the 2006-2009 Chevrolet Impala V8 5.3L; for a different make or model, look your car up in the "Vehicles it fits" section.

    Does this radiator come with a transmission oil cooler?

    Yes, Spectra Premium CU2837 has an internal transmission oil cooler with Quick Connect fittings; an engine oil cooler and a frame are not included.

    What size are the inlet and outlet on this cross-flow radiator?

    The inlet and outlet of this radiator are each 1.3125 inches in diameter, and the inlet sits at the bottom left.

    Is this radiator all aluminum?

    No. The core is aluminum and the tanks are plastic.

    Does this radiator replace number 2402837?

    Yes. 2402837 is one of the interchange numbers listed for Spectra Premium CU2837, a cross-flow radiator with a single-row core.
