Radiator for 2005-2010 Jeep Grand Cherokee & More - Spectra Premium CU2840

$147.99
WARNING:California Proposition 65▾

Vehicles this part fits

    Part number: CU2840
    UPC: 671607753066
    Condition: New
    Weight: 66.73 LBS
    Item Package Quantity: 1
    $147.99
    Adding to cart… The item has been added

    Have questions?

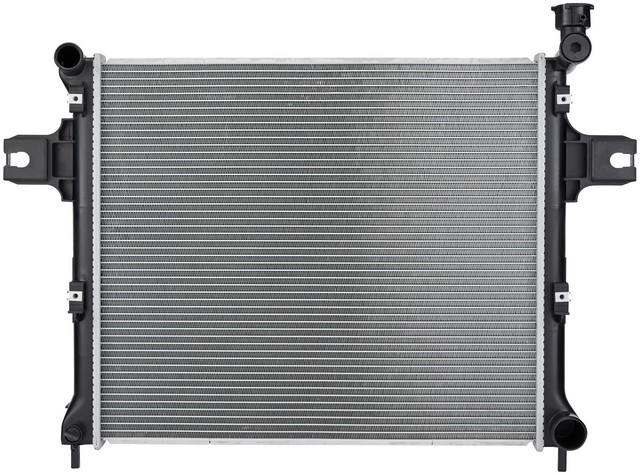

    Spectra Premium Radiator P/N:CU2840
    Spectra Premium Radiator P/N:CU2840
    $147.99
    $147.99

    Spectra Premium CU2840 radiator for the 2005-2010 Jeep Grand Cherokee V8 5.7L and other vehicles passes engine heat from the coolant to the air. Its structure and design are built to carry the same durability expectations as the OE radiator.

    • Aluminum core with one row, in a cross-flow layout
    • Plastic tank material
    • Inlet at the top left and outlet at the bottom right
    • Bottom post and top flange mounting

    Quick facts

    • Part: Spectra Premium CU2840 radiator
    • Fits: 2005-2010 Jeep Grand Cherokee V8 5.7L and other vehicles
    • Material: Aluminum core, plastic tank
    • Condition: New

    Coolant stains or corrosion on the core, a leak under the vehicle, or a temperature gauge that climbs higher than normal can mean a radiator is failing. Before you replace the radiator, rule out a weak hose, the cap or the thermostat as the source of the leak or overheating. If the radiator is the cause, this one replaces it.

    Fits

    This radiator fits the 2005-2010 Jeep Grand Cherokee V8 5.7L and the 2006-2010 Jeep Commander V8 5.7L.

    Specifications

    Fit and size

    • Quantity per vehicle: 1
    • Core size: 20 in wide, 23.0625 in high, 1.25 in thick
    • Inlet: top left, 1.5 in diameter
    • Outlet: bottom right, 1.8125 in diameter
    • Inlet and outlet header: 21.1875 in long, 2.5 in wide
    • Mounting type: bottom post / top flange

    Build and materials

    • Core material: aluminum
    • Tank material: plastic
    • Core rows: 1, cross flow
    • Internal engine and transmission oil coolers: none
    • Condition: new
    • Country of origin: China

    In the box

    One radiator, which is the quantity one vehicle needs. A frame, an engine oil cooler and a transmission oil cooler are not included.

    Interchange: 103116 · 2840 · 8012840 · AR2840 · RK1139 · 3292 · C2840 · 55116842AB · 0ACR5686 · 2219120 · B2840 · 2840C · RAD2840 · A2840 · 61038 · 2402840 · OR2840 · CH3010327 · CH3010328 · 2998 · 220160501 · 412840 · 434036 · RA2840C · 735000

    Product information is for general reference and may contain errors. See our Disclaimer.

    This part cross-references / interchanges with the following part numbers:

    103116, 2840, 8012840, AR2840, RK1139, 3292, C2840, 55116842AB, 0ACR5686, 2219120, B2840, 2840C, RAD2840, A2840, 61038, 2402840, OR2840, CH3010327, CH3010328, 2998, 220160501, 412840, 434036, RA2840C, 735000

    Frequently Asked Questions

    Is this a radiator for the 2005-2010 Jeep Grand Cherokee V8 5.7L?

    Yes. Spectra Premium CU2840 is listed for the 2005-2010 Jeep Grand Cherokee V8 5.7L, and that vehicle takes one radiator.

    Is this a radiator for the 2006-2010 Jeep Commander V8 5.7L?

    Yes. This radiator is listed for the 2006-2010 Jeep Commander V8 5.7L as well, with one radiator needed per vehicle.

    Does the Spectra Premium radiator include an oil cooler?

    No. Spectra Premium CU2840 has no internal engine or transmission oil cooler, and no separate oil cooler comes with it.

    What are the core and tank of this radiator made of?

    The core is aluminum and the tank material is plastic. The core is a single row with a cross-flow layout.

    What size are the inlet and outlet on this radiator?

    The inlet is 1.5 in in diameter and sits at the top left. The outlet is 1.8125 in in diameter and sits at the bottom right.
