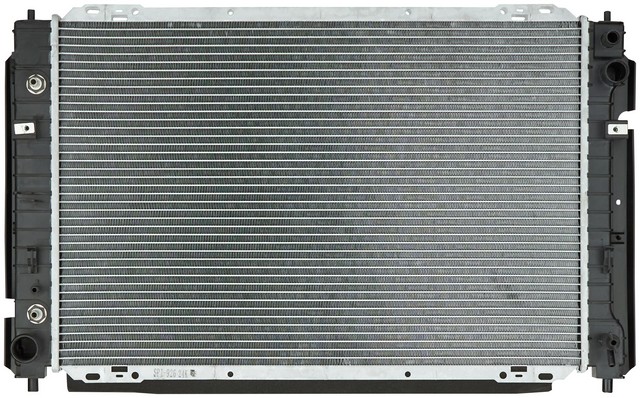

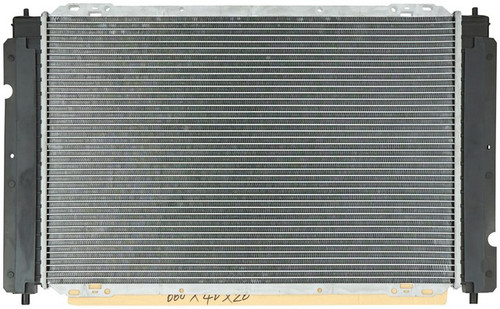

Spectra Premium CU2307 radiator for the 2001-2007 Ford Escape V6 3.0L and other vehicles passes engine heat from the coolant to the air moving through its core. Its structure and design are built to match the durability and expectations of the OE.
- Aluminum core with plastic tanks and a single core row
- Cross-flow layout with the inlet at top right and the outlet at bottom left
- Internal concentric transmission oil cooler with 10mm hose barb fittings
- 1.25 in inlet diameter and 1.5 in outlet diameter
- Post mounting type
Quick facts
- Part: Spectra Premium CU2307 radiator
- Fits: 2001-2007 Ford Escape V6 3.0L and other vehicles
- Material: Aluminum core, plastic tanks
- Condition: New
Coolant leaking at the tanks or core, a temperature gauge that climbs, or a coolant smell can mean a radiator is wearing out. A thermostat, water pump, radiator cap, hose or cooling fan can be behind the same overheating, so find the cause before you buy a radiator.
Fits
This radiator is a direct-fit replacement for the 2001-2007 Ford Escape V6 3.0L, the 2005-2008 Mercury Mariner V6 3.0L and the 2001-2006 Mazda Tribute V6 3.0L.
Specifications
Fit and size
- Quantity per vehicle: 1
- Core height: 27.5625 in
- Core width: 18.125 in
- Core thickness: 1 in, 1 core row
- Inlet header: 18.875 in long, 1.9375 in wide
- Outlet header: 18.875 in long, 1.9375 in wide
- Inlet diameter: 1.25 in; outlet diameter: 1.5 in
- Inlet location: top right; outlet location: bottom left
- Transmission oil cooler fittings: hose barb 10mm, 12 in between fittings
- Mounting type: post
Build and materials
- Flow type: cross flow
- Core material: aluminum
- Tank material: plastic
- Transmission oil cooler: internal, concentric, included
- Condition: new
- Country of origin: Cambodia
In the box
One radiator with its internal transmission oil cooler. A frame and an engine oil cooler are not included. This listing is a single radiator, and each vehicle takes one.
Product information is for general reference and may contain errors. See our Disclaimer.
Frequently Asked Questions
Will this radiator fit a 2001-2007 Ford Escape V6 3.0L?
Yes. Spectra Premium CU2307 is a direct-fit radiator for the 2001-2007 Ford Escape V6 3.0L.
Is this a radiator for the 2001-2006 Mazda Tribute V6 3.0L?
Yes. This radiator is listed for the 2001-2006 Mazda Tribute V6 3.0L, and the vehicle takes one.
Does the Spectra Premium radiator include a transmission oil cooler?
Yes. Spectra Premium CU2307 has an internal concentric transmission oil cooler with 10mm hose barb fittings set 12 inches apart.
What size is the core on this radiator and what is it made of?
The aluminum core is 27.5625 in high, 18.125 in wide and 1 in thick, with a single core row and plastic tanks.
Does this radiator come with a mounting frame?
No. The listing is one radiator with a post mounting type; a frame and an engine oil cooler are not included.
