Back Glass Lift Support for 1994-1998 Jeep Grand Cherokee - Stabilus 4B-2379IG

$20.99
WARNING:California Proposition 65▾

Vehicles this part fits

    Part number: 4B-2379IG
    UPC: 194879007991
    Condition: New
    Weight: 1.20 LBS
    Item Package Code: EA
    Part Has Core (Y/N): N
    Item Package Quantity: 1
    $20.99
    Adding to cart… The item has been added

    Have questions?

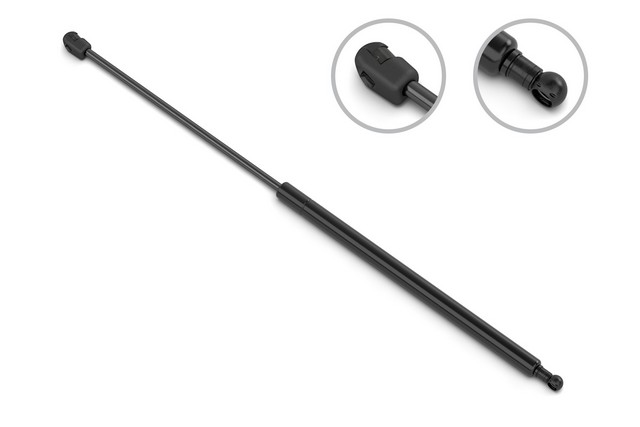

    Stabilus Back Glass Lift Support P/N:4B-2379IG
    Stabilus Back Glass Lift Support P/N:4B-2379IG
    $20.99
    $20.99

    Stabilus 4B-2379IG back glass lift support for the 1994-1998 Jeep Grand Cherokee holds the back glass open and controls its motion as it lifts. It replaces the worn OE unit to restore proper back glass operation.

    • LIFT-O-MAT® nitrogen-charged gas lift support
    • Patented Labyrinth Piston manages extension speed for smooth motion and a controlled stop
    • Hydraulic damping helps prevent bouncing and shuddering as the back glass opens
    • High-precision sealing and corrosion-resistant materials help maintain consistent performance across thousands of operating cycles
    • Fully sealed design needs no lubrication, adjustment or routine maintenance

    Quick facts

    • Part: Stabilus 4B-2379IG back glass lift support
    • Fits: the 1994-1998 Jeep Grand Cherokee
    • Material: Nylon ball socket ends
    • Condition: New

    A back glass that sags, won't stay open, or bounces and shudders as it lifts can mean a worn lift support. Before you replace it, rule out a stiff or damaged hinge and loose or worn ball studs, since those can cause similar trouble.

    Fits

    This is a direct-fit replacement for the 1994-1998 Jeep Grand Cherokee, engineered to OE specification for exact fit, form and function with no modification required. It is sold individually, and the pair on the vehicle is normally replaced together.

    Specifications

    Fit and size

    • Quantity per vehicle: 2
    • Compressed length: 275.5 mm (10.85 in)
    • Extended length: 473 mm (18.62 in)
    • Stroke length: 197.5 mm (7.77 in)
    • Ball diameter: 15 mm (0.591 in)
    • Maximum force: 19 lb

    Build and materials

    • Type: Gas
    • End types: Ball socket at both ends
    • End material: Nylon
    • Condition: New
    • Country of origin: United States

    In the box

    One back glass lift support; the 1994-1998 Jeep Grand Cherokee takes two. Mounting hardware is not included, so plan on new hardware where the old pieces cannot be reused.

    Interchange: 819-4748 · 819-8097
    5507 6210 · LS10261 · D95706DL · 84678 · 4678 · D4678 · D95706 · 901610 · 2379IG · 612925 · SG314017 · TSG314017

    Product information is for general reference and may contain errors. See our Disclaimer.

    This part cross-references / interchanges with the following part numbers:

    LS10261, D95706DL, 84678, 5507 6210, 55076210, 4678, D4678, D95706, 901610, 819-4748, 8194748, 819-8097, 8198097, 2379IG, 612925, SG314017, TSG314017

    Frequently Asked Questions

    Does the Stabilus 4B-2379IG back glass lift support fit the 1994-1998 Jeep Grand Cherokee?

    Yes. Stabilus 4B-2379IG fits the 1994-1998 Jeep Grand Cherokee, which takes two, and this listing is one lift support.

    Does the Stabilus 4B-2379IG lift support come with mounting hardware?

    No. This listing is one lift support with ball-socket ends, and mounting hardware is not included.

    Is this Stabilus back glass lift support gas-charged?

    Yes. Stabilus 4B-2379IG is a LIFT-O-MAT® nitrogen-charged gas lift support with hydraulic damping and nylon ball-socket ends.

    How long is this lift support when extended and compressed?

    This back glass lift support measures 473 mm (18.62 in) extended and 275.5 mm (10.85 in) compressed, with a 197.5 mm (7.77 in) stroke.

    Can a worn back glass lift support make the glass bounce or drop?

    Yes. A worn lift support can leave the glass bouncing, shuddering or unable to stay open; the hydraulic damping on this unit helps prevent bounce and shudder as the glass opens.
