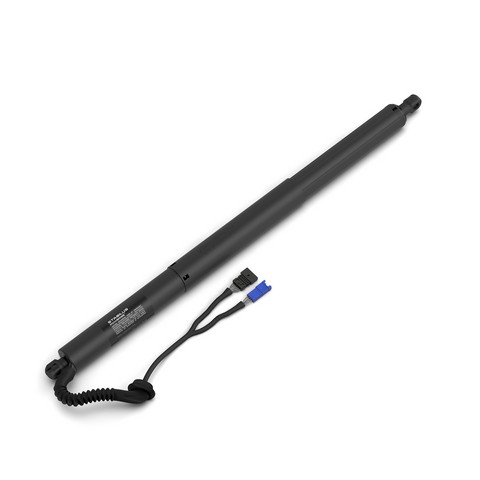

Left Liftgate Lift Support for 2018 BMW X5 - Stabilus 3A-409684

$380.99
WARNING:California Proposition 65▾

Vehicles this part fits

    Part number: 3A-409684
    UPC: 194879042725
    Condition: New
    Weight: 3.98 LBS
    Item Package Code: EA
    Part Has Core (Y/N): N
    Item Package Quantity: 1
    $380.99
    Adding to cart… The item has been added

    Have questions?

    Stabilus Liftgate Lift Support P/N:3A-409684
    Stabilus Liftgate Lift Support P/N:3A-409684
    $380.99
    $380.99

    Stabilus 3A-409684 left liftgate lift support for the 2018 BMW X5 provides powered opening and closing of the liftgate. This Stabilus liftgate lift support is a POWERISE® electromechanical spindle drive that moves the liftgate with controlled motion.

    • Stop-and-hold positioning that supports intermediate stopping for programmable opening height
    • Integrated spring assist that helps reduce operating effort during manual use
    • Automotive-grade materials for corrosion resistance, durability, toughness and wear resistance
    • Nylon ball sockets at both ends

    Quick facts

    • Part: Stabilus 3A-409684 liftgate lift support
    • Fits: 2018 BMW X5
    • Position: Left
    • Material: Nylon ball socket ends
    • Condition: New

    A liftgate that stops partway, moves slowly under power or takes extra effort by hand can point to a worn lift support. These signs alone do not prove this part is the problem, since a weak vehicle battery can also keep a powered liftgate from moving normally.

    Fits

    This lift support fits the 2018 BMW X5 and is engineered to OE specification for exact fit, form and function. This listing is one left-side support; the 2018 BMW X5 takes one on this side, and the right side is ordered separately.

    Specifications

    Fit and size

    • Position: Left
    • Quantity per vehicle: 1
    • Compressed length: 400 mm (15.75 in)
    • Extended length: 539 mm (21.22 in)
    • Stroke length: 139 mm (5.47 in)
    • Connector: female, rectangular, adapter type

    Build and materials

    • Type: electro-mechanical
    • End types: ball socket at both ends
    • End material: nylon
    • Condition: New
    • Country of origin: Mexico

    In the box

    One left liftgate lift support with its wiring harness and installation instructions. Mounting hardware is not included, so plan on new mounting hardware, since the old pieces may not be reusable.

    Installation notes

    • Installation instructions come with the part.
    • No modification, lubrication or adjustment is required.

    Interchange: 51 24 7 434 041
    310722 · 464409 · 615046

    Product information is for general reference and may contain errors. See our Disclaimer.

    This part cross-references / interchanges with the following part numbers:

    51 24 7 434 041, 51247434041, 310722, 464409, 615046

    Frequently Asked Questions

    Is the Stabilus 3A-409684 left liftgate lift support right for the 2018 BMW X5?

    Yes. Stabilus 3A-409684 is the left-side liftgate lift support for the 2018 BMW X5; the right side is a separate part.

    What is included with the Stabilus 3A-409684 liftgate lift support?

    The Stabilus 3A-409684 comes with its wiring harness and installation instructions. Mounting hardware is not included, so plan on new hardware.

    How long is this liftgate lift support when extended?

    Extended length is 539 mm (21.22 in) and compressed length is 400 mm (15.75 in), which gives a stroke length of 139 mm (5.47 in).

    Can this liftgate lift support hold the liftgate partway open?

    Yes. The stop-and-hold positioning on this liftgate lift support supports intermediate stopping for programmable opening height functionality.

    Does this powered liftgate lift support need lubrication or adjustment during installation?

    No. This liftgate lift support needs no modification, lubrication or adjustment, and installation instructions come with it.
