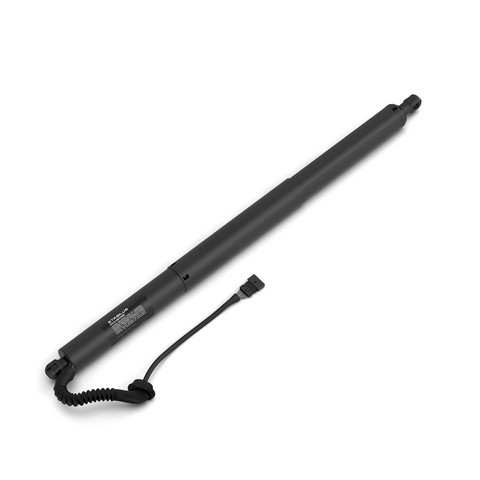

Stabilus 3A-410879 left liftgate lift support for the 2014-2017 BMW X5 opens and closes the liftgate under power. This Stabilus liftgate lift support replaces the powered unit on the left side of the liftgate.
A liftgate that stops opening partway, will not hold its position or makes noise while moving can point to a worn drive. A latch, a wiring connector or the vehicle's battery can be behind those signs too, so find the cause before buying. Replacing the left and right liftgate lift supports together is the usual practice, and this listing is the left one only.
Engineered to OE specification, it is a direct fit for the 2014-2017 BMW X5.
Fit and size
Build and materials
One left liftgate lift support with its wiring harness. The 2014-2017 BMW X5 takes one on this side, and the right side is a separate part. Mounting hardware is not included, so plan on new fasteners.
Interchange: 51 24 7 294 469 · E89030L · 300714 · 869980 · PG5000L · 615016
This part cross-references / interchanges with the following part numbers:
Is the Stabilus 3A-410879 the left liftgate lift support for the 2014-2017 BMW X5?
Yes. Stabilus 3A-410879 is the left liftgate lift support for the 2014-2017 BMW X5, and the right side is a separate part.
Does this left liftgate lift support come with its wiring harness and mounting hardware?
It includes the wiring harness and installation instructions. Mounting hardware is not included.
How long is this liftgate lift support when compressed and extended?
Stabilus 3A-410879 measures 400 mm (15.75 in) compressed and 539 mm (21.22 in) extended, with a 139 mm (5.47 in) stroke.
Can this liftgate lift support stop partway open?
Yes. Its stop-and-hold positioning supports intermediate stopping for programmable opening height functionality, and the integrated spring assist helps reduce effort in manual operation.
Is 51 24 7 294 469 an interchange number for this liftgate lift support?
Yes, 51 24 7 294 469 is listed as an interchange number for this part, along with E89030L and PG5000L.
