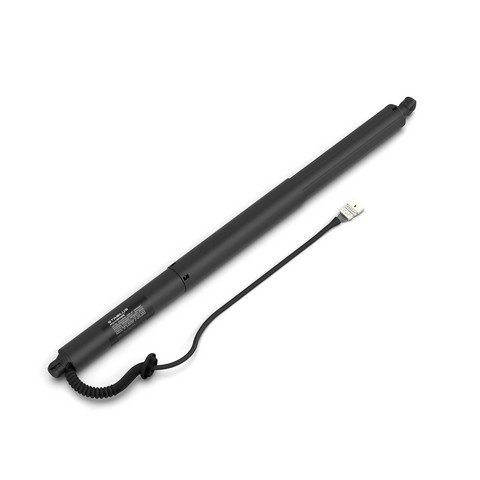

Stabilus 3A-511516 liftgate lift support for the 2017-2019 Mini Cooper Countryman restores powered opening and closing of the liftgate. This Stabilus liftgate lift support is a POWERISE electromechanical spindle drive that replaces the original.
- POWERISE electromechanical spindle drive for powered opening and closing with controlled motion
- Stop-and-hold positioning allows intermediate stopping for programmable opening height
- Integrated spring assist reduces operating effort and helps with manual operation
- Automotive-grade materials for corrosion resistance, durability and wear resistance
Quick facts
- Part: Stabilus 3A-511516 liftgate lift support
- Fits: 2017-2019 Mini Cooper Countryman
- Material: Nylon ball socket ends
- Condition: New
A liftgate that will not power open, stops short or will not hold its position can mean the liftgate lift support is worn. Before you replace it, rule out a blown fuse, a damaged wire or a faulty liftgate switch, because any of them can leave the liftgate refusing to move.
Fits
It fits the 2017-2019 Mini Cooper Countryman and is engineered to OE specification for exact form, fit and function. That car takes two, so order two and fit them together.
Specifications
Fit and size
- Quantity per vehicle: 2
- Compressed length: 407 mm (16.02 in)
- Extended length: 567 mm (22.32 in)
- Stroke length: 160 mm (6.3 in)
- Connector: female rectangular adapter
Build and materials
- Type: electromechanical
- Ends: ball socket at both ends
- End material: nylon, both ends
- Condition: new
- Country of origin: Germany
In the box
One liftgate lift support with a wiring harness and installation instructions. Mounting hardware is not included, so plan on new hardware, since the old pieces may not be reusable.
Installation notes
- Installation instructions come with the part for the steps.
- No modification, lubrication or adjustment is required.
Interchange: 51 24 7 405 763 · 51 24 9 447 876
51249482767 · 7405763 · 9447876 · 9482767 · 094460 · 101134
This part cross-references / interchanges with the following part numbers:
51247405763, 51 24 7 405 763, 51 24 9 447 876, 51249447876, 51249482767, 7405763, 9447876, 9482767, 094460, 101134
Frequently Asked Questions
Is the Stabilus 3A-511516 right for the 2017-2019 Mini Cooper Countryman?
Yes. Stabilus 3A-511516 is engineered to OE specification for exact form, fit and function on the 2017-2019 Mini Cooper Countryman, and that car takes two.
Does the Stabilus POWERISE liftgate lift support come with a wiring harness?
Yes. The Stabilus 3A-511516 comes with a wiring harness and installation instructions. Mounting hardware is not included.
How far does this liftgate lift support extend?
Its stroke is 160 mm (6.3 in). The length runs from 407 mm (16.02 in) compressed to 567 mm (22.32 in) extended.
Can this POWERISE liftgate lift support hold the liftgate partway open?
Yes. Stop-and-hold positioning lets the liftgate stop at an intermediate point, which supports a programmable opening height.
Does this lift support need lubrication or adjustment after installing?
No. It is engineered to go in without modification, lubrication or adjustment, and installation instructions come with the part.
