Lift-O-Mat by Stabilus - Precision Motion with Controlled Damping The Lift-O-Mat by Stabilus combines advanced hydraulic damping with precise motion control to deliver smooth, dependable performance. Using an innovative oil channeling system, Lift-O-Mat adjusts its damping according to an oil column that flows through a patented labyrinth piston. This unique design allows each Lift-O-Mat to be finely tuned for its application, with damping speeds determined by customized oil viscosities and labyrinth piston configurations. Built for Professionals Engineered with high-quality materials and stabilized by a precision seal-guide system, Lift-O-Mat is crafted to withstand demanding applications with durability and reliable operation. This lift support is the ideal solution for applications requiring smooth, controlled lifting and lowering, making it a trusted choice across automotive, furniture, and ergonomic equipment industries. Why Choose Lift-O-Mat? - Precision Damping: Achieve consistent motion control with custom-tuned oil viscosities and labyrinth piston designs. - High-Quality Build: High-grade materials and a proprietary seal-guide system ensure performance and durability. - Application-Specific Engineering: Every Lift-O-Mat is designed to meet the exact requirements of its application, delivering reliability you can trust. Choose Lift-O-Mat by Stabilus for hydraulic damping that provides a refined, controlled user experience.
Clog free design prevents binding due to contamination.
Part coatings tested to automotive standards for corrosion resistance.
Easy to install and require no special tools.
Based on the OE design to ensure proper fit form and function.
For best results replace in pairs.
Patented Labyrinth Piston provides clog free and smooth operation during opening and closing.

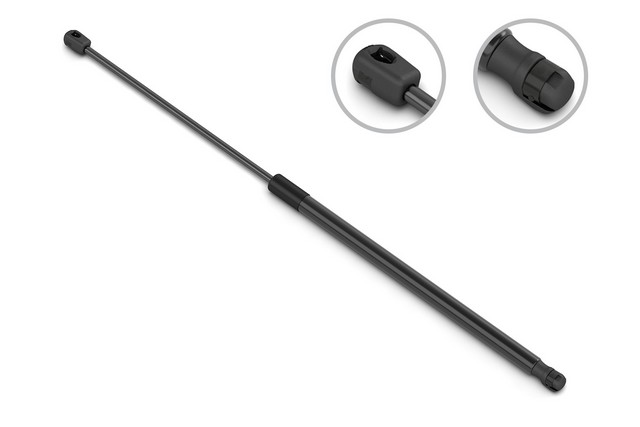

Stabilus Liftgate Lift Support
A hydraulically dampened gas charged lift support.
| Name | Value |
|---|---|
| California Proposition 65 | <b>WARNING:</b> This product can expose you to chemicals including di(2-ethylhexyl) phthalate (DEHP), which is known to the State of California to cause canc |
| CarLight Truck | Y |
| Medium Truck | N |
| Heavy Truck | N |
| Agricultural Equipment | N |
| Snowmobile | N |
| Personal Watercraft | N |
| IndustrialOff Highway | N |
| MotorCycleRV | N |
| Marine | N |
| Small Engine | N |
| Associated Comment | LIFTGATE LIFT SUPPORT |
| High Performance | N |
| Engine Specific | N |
| Transmission Specific | N |
| NonVehicle Specific | N |
| Country of Origin | Mexico |
| Weight - Each (Gross Pounds) | 2.7252 |
| Weight - Case (Gross Pounds) | 20.1732 |
| Height - Each (Inch) | 32.5 |
| Height - Case (Inch) | 32.5 |
| Length - Each (Inch) | 1 |
| Length - Case (Inch) | 1 |
| Width - Each (Inch) | 3.5 |
| Width - Case (Inch) | 3.5 |
| Mounting Hardware Included | Yes |
| End 2 Type | Ball Socket |
| End 1 Type | Ball Socket |
| Maximum Force (Pound) | 146 |
| Type | GAS |
| Installation Instructions Included | Yes |
| End 2 Material | Nylon |
| End 1 Material | Nylon |
| Short Description | 99-02 HON |
| Shoulder Length (Millimeter) | 649 |
| Thread Length (Millimeter) | 10.0 |
| Overall Length (Millimeter) | 10.0 |
| Ball Diameter (Millimeter) | 28 |
| Shoulder Length (Inch) | 10 |
| Thread Length (Inch) | 0.394 |
| Overall Length (Inch) | 0.394 |
| Ball Diameter (Inch) | 1.102 |
| Wiring Harness Included | 0.394 |
| Stroke Length (Millimeter) | 242 |
| Life Cycle Status | Available to Order |
| Application Specific | Y |
| Prop 65 Chemical | DEHP |
| Item Level GTIN | 00194879003733 |
| Prop 65 Affected | Yes |
| Quantity Per Application | 2 |
| Stroke Length (Inch) | 9.53 |
| Compressed Length (Millimeter) | 442 |
| Compressed Length (Inch) | 17.40 |
| Extended Length (Millimeter) | 684 |
| Extended Length (Inch) | 26.93 |
| Hazardous Material | No |
| Minimum Order Quantity | 1 |
| Make | Model | Year | Engine | Type |
|---|---|---|---|---|
| HONDA | ODYSSEY | 02-99 | All | Liftgate Lift Support |
| HONDA | ODYSSEY | 02-99 | V6-3.5L | Liftgate Lift Support |
