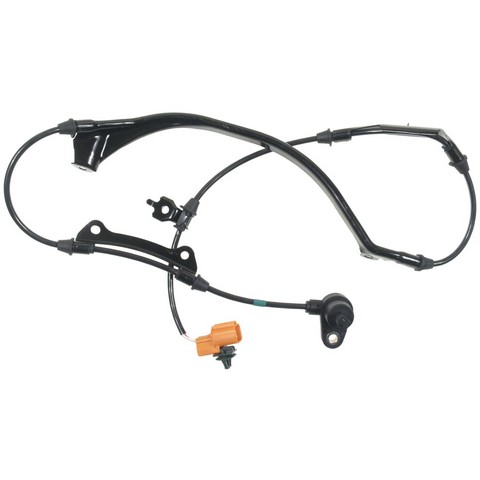

Standard Ignition ALS1011 rear right ABS wheel speed sensor for the 1999-2001 Honda Odyssey reads wheel rotation and sends the signal to the ABS system. The ABS control unit uses that signal to detect a wheel that is starting to lock.
- Synthetic material made to withstand harsh operating conditions
- Location grommets and wire clips on the harness for mounting and routing the wire
- Sealed connector for protection in harsh conditions
- Tested on vehicles for correct integration with electronic safety systems
Quick facts
- Part: Standard Ignition ALS1011 ABS wheel speed sensor
- Fits: 1999-2001 Honda Odyssey
- Position: Rear right
An ABS or traction control warning light can mean a wheel speed sensor has failed. Before you replace this sensor, rule out damage to the wiring harness, the connector or the tone ring, and have the codes read so you do not swap a sensor that still works.
Fits
This sensor fits the 1999-2001 Honda Odyssey.
Specifications
Fit and size
- Position: Rear right
- Mounting location: Wheel
- Quantity per vehicle: 1
- Harness length: 47 in (1190 mm)

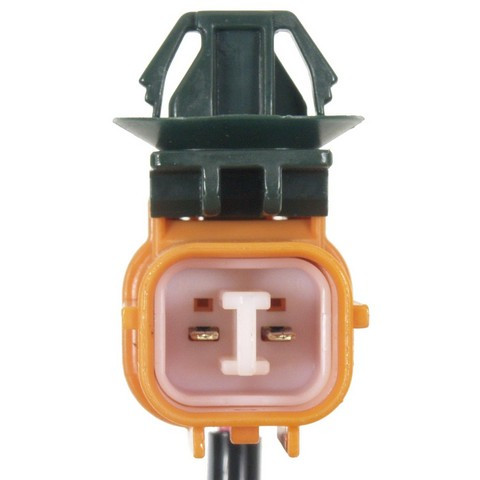

- Connector: 1 female, square
- Terminals: 2 male, blade
Build and materials
- Material: synthetic material
- Connector: sealed
- Country of origin: Mexico
In the box
One ABS wheel speed sensor with its harness. This listing is one sensor for the rear right wheel, and that side takes one; the rear left is a separate part. Hardware is not included, so plan on new fasteners rather than reusing the old ones.
Interchange: ABS1121 · SU9046 · 531569 · 57470S0XA01 · 57470S0XA02
Product information is for general reference and may contain errors. See our Disclaimer.
This part cross-references / interchanges with the following part numbers:
ABS1121, SU9046, 531569, 57470S0XA01, 57470S0XA02, ALS1011
Frequently Asked Questions
Is the Standard Ignition ALS1011 the right sensor for the 1999-2001 Honda Odyssey?
Yes. Standard Ignition ALS1011 is a rear right ABS wheel speed sensor for the 1999-2001 Honda Odyssey, so it goes on the right rear wheel only.
Does the Standard Ignition ABS wheel speed sensor come with mounting hardware?
No, hardware is not included, though the harness carries location grommets and wire clips for mounting and routing the wire.
How long is the harness on this rear right wheel speed sensor?
The Standard Ignition ALS1011 harness is 47 inches (1190 mm) long and ends in one female square connector with two male blade terminals.
Could this wheel speed sensor be why my ABS light is on?
An ABS or traction control light can mean a wheel speed sensor has failed. A shop can read the codes to see which wheel the fault is at.
Is 57470S0XA01 an interchange number for the Standard Ignition ALS1011?
Yes, Standard Ignition ALS1011 replaces 57470S0XA01; the other listed numbers are 57470S0XA02, ABS1121, SU9046 and 531569.
