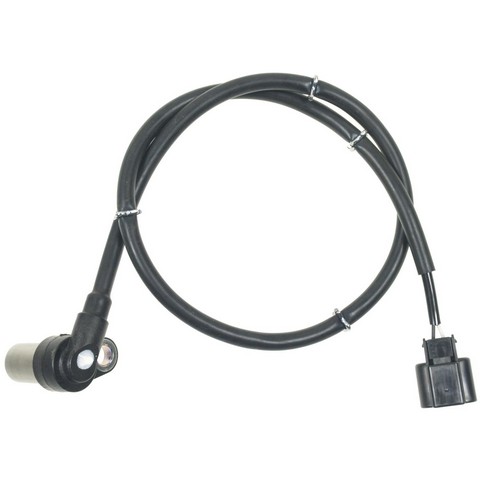

Standard Ignition ALS1156 front left ABS wheel speed sensor for the 1998-2008 Mitsubishi Montero Sport reports wheel rotation speed to the ABS. This Standard Ignition ABS wheel speed sensor is engineered specifically for Mitsubishi vehicles.
- Synthetic material made to withstand harsh operating conditions
- Grommets and wire clips come on the harness for mounting and routing
- Tested on vehicles for correct integration with electronic safety systems
- Sealed connector protects against harsh conditions
- Harness 28 in (710 mm) long with one rectangular male connector
Quick facts
- Part: Standard Ignition ALS1156 ABS wheel speed sensor
- Fits: 1998-2008 Mitsubishi Montero Sport
- Position: Front left
- Condition: New
A lit ABS warning light can mean a worn or damaged wheel speed sensor. Before you replace the sensor, rule out damaged wiring at the connector and a damaged tone ring, since either can trigger the same light.
Fits
This sensor is a direct-fit replacement for the 1998-2008 Mitsubishi Montero Sport. The listing is one sensor for the front left wheel; the front right wheel takes its own sensor, ordered separately.
Specifications
Fit and size
- Position: Front left
- Mounting location: Wheel
- Quantity for this position: 1
- Number of bolt holes: 1
- Harness length: 28 in (710 mm)
Build and materials
- Condition: New
- Connector: 1 rectangular, male
- Terminals: 2 female blade
- Harness: grommets and wire clips included
- Country of origin: China
In the box
One front left ABS wheel speed sensor with its harness grommets and wire clips. Mounting hardware is not included, so plan on a new bolt.
Interchange: ABS1266 · SU12607 · 531689 · MR307038
Product information is for general reference and may contain errors. See our Disclaimer.
This part cross-references / interchanges with the following part numbers:
ABS1266, SU12607, 531689, MR307038, ALS1156
Frequently Asked Questions
Is the Standard Ignition ALS1156 the right ABS wheel speed sensor for the 1998-2008 Mitsubishi Montero Sport?
Yes, Standard Ignition ALS1156 is the front left ABS wheel speed sensor for the 1998-2008 Mitsubishi Montero Sport, and the front right wheel uses a separate sensor.
Does the ALS1156 come with a mounting bolt?
No, mounting hardware is left out, so plan on a new bolt; the grommets and wire clips are already on the harness.
How long is the harness on this ABS wheel speed sensor?
The harness is 28 inches (710 mm) long. It ends in one rectangular male connector with two female blade terminals.
What can a failing front left ABS wheel speed sensor look like?
The ABS warning light can come on. A shop can scan the ABS module and test the sensor's signal to see whether the sensor is the cause.
Is the connector on the Standard Ignition ALS1156 sealed?
Yes. The ALS1156 uses a sealed connector made for harsh conditions, and Standard Ignition tests its ABS speed sensors on vehicles for correct integration with electronic safety systems.
