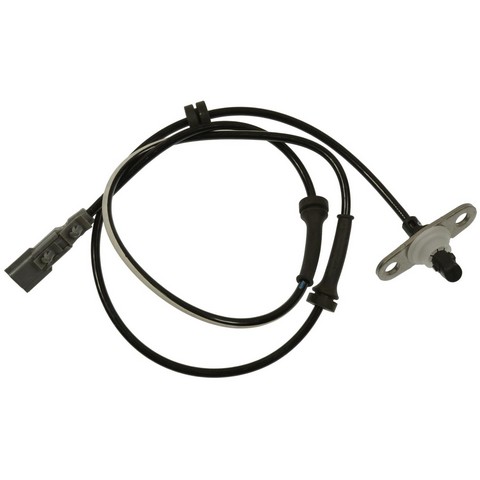

Standard Ignition ALS2901 rear right ABS wheel speed sensor for the 2016-2024 Nissan Titan XD reports how fast that wheel is turning. The ABS module uses that signal to spot a wheel that is starting to lock under braking.
- Synthetic material construction made to withstand harsh operating conditions
- Sealed connector built for protection in harsh conditions
- Tested on vehicles for correct integration with electronic safety systems
Quick facts
- Part: Standard Ignition ALS2901 ABS wheel speed sensor
- Fits: 2016-2024 Nissan Titan XD
- Position: Rear right
- Material: Synthetic
- Condition: New
A lit ABS or traction control warning light can point to a wheel speed sensor problem, though a damaged wire or connector can set it too. With the engine off, look over the harness and connector near the rear right wheel for damage or corrosion; a shop can scan for the stored code.
Fits
This sensor fits the 2016-2024 Nissan Titan XD, which takes one at this position. The listing is one sensor for the rear right wheel, and the other side is a separate part ordered on its own.
Specifications
Fit and size
- Position: Rear right
- Quantity per vehicle: 1 at this position

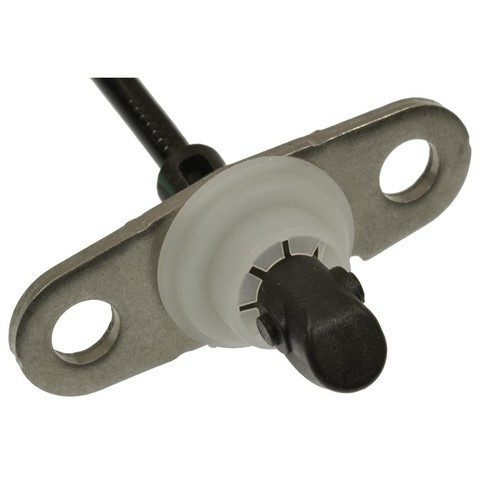

- Mounting location: Wheel
- Mounting type: Bolt mount
- Connector: Rectangular, female, 1 connector
- Terminals: 2, male pin
Build and materials
- Material: Synthetic
- Connector: Sealed
- Condition: New
- Country of origin: China
In the box
One ABS wheel speed sensor with its wire harness. Mounting hardware and a dust shield are not included, so plan on new mounting bolts rather than reusing the old ones.
Installation notes
- Location grommets and wire clips are on the harness for mounting and routing, which saves technicians time.
Product information is for general reference and may contain errors. See our Disclaimer.
Frequently Asked Questions
Does the Standard Ignition ALS2901 fit the 2016-2024 Nissan Titan XD?
Yes. The Standard Ignition ALS2901 is the rear right ABS wheel speed sensor for the 2016-2024 Nissan Titan XD, and the truck takes one at this position.
Is this Standard Ignition ABS wheel speed sensor sold for one wheel only?
Yes. This listing is a single sensor for the rear right wheel. The sensor for the other side is ordered separately.
Do bolts come with the Standard Ignition ALS2901 sensor?
No. The Standard Ignition ALS2901 comes without mounting hardware or a dust shield, so plan on new bolts instead of reusing the old ones.
What kind of connector does this rear right ABS sensor have?
It has one rectangular female connector with two male pin terminals. The connector is a sealed type for protection in harsh conditions.
Has this ABS wheel speed sensor been tested on vehicles?
Yes. It is tested on vehicles for correct integration with electronic safety systems, and its construction uses a synthetic material made for harsh operating conditions.
