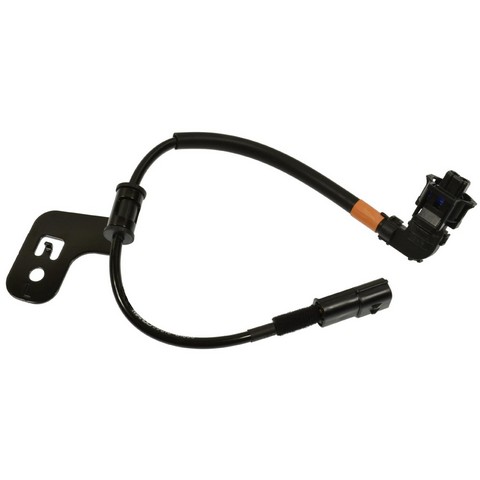

Standard Ignition ALS2834 front left ABS wheel speed sensor for the 2014-2016 Hyundai Genesis reports wheel rotation speed to the ABS control unit. Anti-lock and traction control systems rely on that signal.
- Synthetic material made to withstand harsh operating conditions
- Sealed connectors for protection in harsh conditions
- Wiring harness and mounting bracket come with the sensor
- Tested on vehicles for correct integration with electronic safety systems
Quick facts
- Part: Standard Ignition ALS2834 ABS wheel speed sensor
- Fits: 2014-2016 Hyundai Genesis
- Position: Front left
- Material: Synthetic material
- Condition: New
An ABS or traction control warning light, or an ABS that acts up in normal driving, can mean the sensor is failing. Those signs alone do not prove it, since damaged wiring can cause them too.
Fits
This sensor is a direct-fit replacement for the 2014-2016 Hyundai Genesis. It is engineered specifically for Hyundai vehicles.
Specifications
Fit and size
- Position: front left
- Quantity per application: 1
- Harness length: 14 in (356 mm)
- Bolt holes: 1

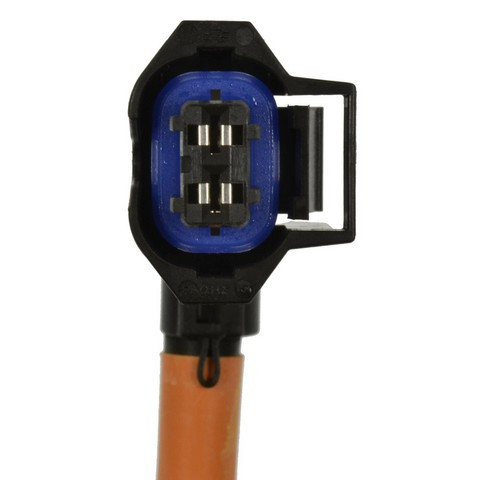

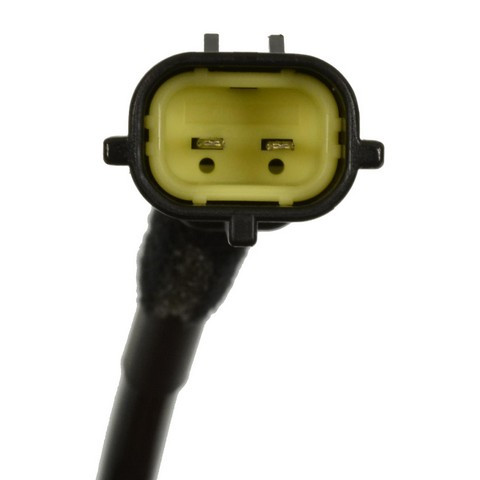

- Connectors: 2, oval and rectangle shapes
- Terminals: 4, blade type
Build and materials
- Mounting: bolt mount with bracket
- Material: synthetic material
- Connector and terminal gender: male and female
- Condition: new
- Country of origin: Korea, Republic of
In the box
One front left ABS wheel speed sensor with its wiring harness and mounting bracket. The front left takes one sensor, and the front right is ordered separately. A dust shield and mounting hardware are not included, so plan on a new bolt rather than reusing the old one.
Installation notes
- Location grommets and wire clips come on the harness for proper mounting and routing, saving technicians time.
Interchange: ABS2834 · ABSB10287 · 533205 · 59810B1050 · 810B1050
Product information is for general reference and may contain errors. See our Disclaimer.
This part cross-references / interchanges with the following part numbers:
ABS2834, ABSB10287, 533205, 59810B1050, 810B1050, ALS2834
Frequently Asked Questions
Does the Standard Ignition ALS2834 fit the 2014-2016 Hyundai Genesis?
Yes, Standard Ignition ALS2834 is a front left ABS wheel speed sensor for the 2014-2016 Hyundai Genesis; the front right takes a separate sensor.
Does this ABS wheel speed sensor come with a bracket and harness?
Yes, it includes the wiring harness and a mounting bracket. A dust shield and mounting hardware are not included.
How long is the wiring harness on the ALS2834 sensor?
The Standard Ignition ALS2834 harness is 14 inches (356 mm) long. It has two connectors, oval and rectangle in shape, with four blade terminals.
What can a failing front left wheel speed sensor cause?
An ABS or traction control warning light can come on, or the ABS may act up in normal driving. A shop can scan the system to see which part is at fault.
Is 59810B1050 an interchange number for this sensor?
Yes. 59810B1050 is listed as an interchange number for the Standard Ignition ALS2834, along with 810B1050, 533205, ABS2834 and ABSB10287.
