Rear Right ABS Wheel Speed Sensor for 2012 Hyundai Sonata - Standard Ignition ALS2572

$286.99

Vehicles this part fits

    Part number: ALS2572
    UPC: 727943614377
    Condition: New
    Weight: 0.47 LBS
    Item Package Quantity: 1
    $286.99
    Adding to cart… The item has been added

    Have questions?

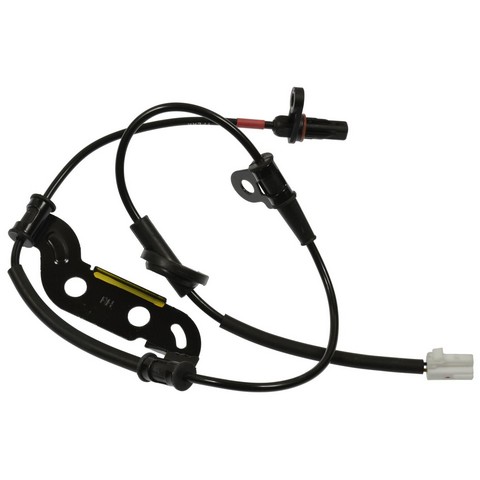

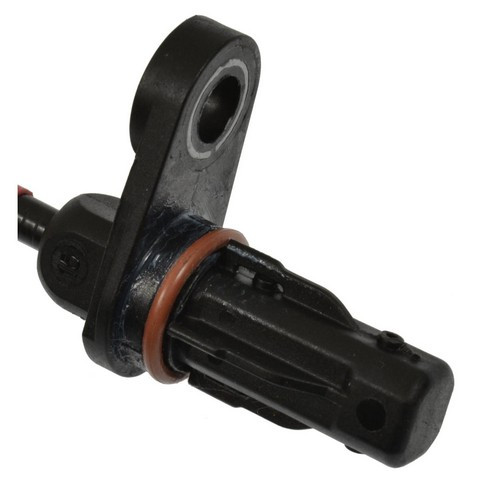

    Standard Ignition ABS Wheel Speed Sensor P/N:ALS2572
    Standard Ignition ABS Wheel Speed Sensor P/N:ALS2572
    $286.99
    $286.99

    Standard Ignition ALS2572 rear right ABS wheel speed sensor for the 2012 Hyundai Sonata reports its wheel's rotation speed to the ABS module. The ABS uses that signal to detect a wheel that is about to lock.

    • Durable synthetic material made to withstand harsh operating conditions
    • Location grommets and wire clips on the harness for proper mounting and routing
    • Sealed connector that protects the terminals in harsh conditions
    • Tested on vehicles for correct integration with electronic safety systems

    Quick facts

    • Part: Standard Ignition ALS2572 ABS wheel speed sensor
    • Fits: 2012 Hyundai Sonata
    • Position: Rear right
    • Condition: New

    A lit ABS warning light can mean this sensor has worn out, though a damaged tone ring or a corroded connector at the wheel can be behind it as well.

    Fits

    This is a direct-fit replacement for the 2012 Hyundai Sonata, engineered specifically for Hyundai vehicles and tested on vehicles for proper fit. This listing is one sensor for the rear right wheel; the 2012 Hyundai Sonata takes one at this position, and the left side is a separate part.

    Specifications

    Fit and size

    • Position: rear right, at the wheel
    • Quantity per vehicle: 1
    • Mounting: bolt mount, 4 bolt holes
    • Harness length: 800 mm (31.5 in)

    Build and materials

    • Connector: 1 rectangular connector
    • Terminals: 3 female blade terminals
    • Wiring harness: included
    • Condition: new
    • Country of origin: Republic of Korea

    In the box

    One rear right ABS wheel speed sensor with its wiring harness, location grommets and wire clips.

    Interchange: ABS2572 · ABSD31055 · 532942 · 599304R000 · 9304R000

    Product information is for general reference and may contain errors. See our Disclaimer.

    This part cross-references / interchanges with the following part numbers:

    ABS2572, ABSD31055, 532942, 599304R000, 9304R000, ALS2572

    Frequently Asked Questions

    Is the Standard Ignition ALS2572 the right wheel speed sensor for a 2012 Hyundai Sonata?

    Yes. Standard Ignition ALS2572 is the rear right ABS wheel speed sensor for the 2012 Hyundai Sonata. The left side takes a separate sensor.

    Does this Standard Ignition ABS wheel speed sensor come with its harness?

    Yes. Standard Ignition ALS2572 includes a wiring harness, 800 mm (31.5 in) long, with location grommets and wire clips for mounting and routing.

    What kind of connector does this wheel speed sensor have?

    It has one rectangular connector with three female blade terminals. The connector is an OE-style sealed type made for harsh conditions.

    Will a bad rear right ABS wheel speed sensor turn on the ABS light?

    Yes, it can. A failed sensor can light the ABS warning light, and a shop can scan the ABS module for codes to see which wheel's sensor is at fault.

    Does the ALS2572 bolt on or press in at the wheel?

    Standard Ignition ALS2572 is a bolt-mount sensor with 4 bolt holes, and it mounts at the wheel.
