Rear Left ABS Wheel Speed Sensor for 2013 Ram 2500 & More - Standard Ignition ALS2816

$102.99

Vehicles this part fits

    Part number: ALS2816
    UPC: 727943933430
    Condition: New
    Weight: 0.31 LBS
    Item Package Quantity: 1
    $102.99
    Adding to cart… The item has been added

    Have questions?

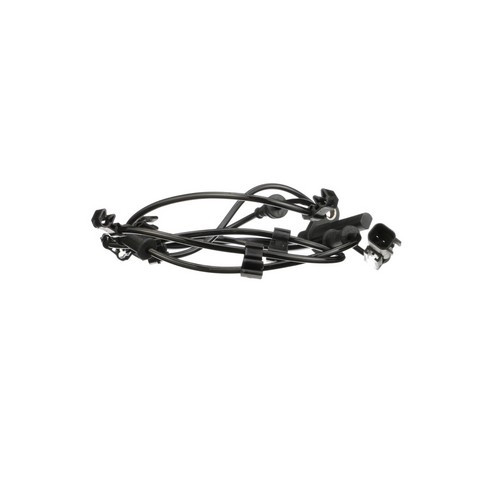

    Standard Ignition ABS Wheel Speed Sensor P/N:ALS2816
    Standard Ignition ABS Wheel Speed Sensor P/N:ALS2816
    $102.99
    $102.99

    Standard Ignition ALS2816 rear left ABS wheel speed sensor for the 2013 Ram 2500 and other vehicles reads wheel rotation and reports it to the ABS. It is engineered specifically for Ram vehicles.

    • Synthetic material made to withstand harsh operating conditions
    • Grommets and wire clips on the harness for proper mounting and routing
    • Sealed connector made for protection in harsh conditions
    • Tested on vehicles for fit and correct integration with electronic safety systems

    Quick facts

    • Part: Standard Ignition ALS2816 ABS wheel speed sensor
    • Fits: 2013 Ram 2500 and other vehicles
    • Position: Rear left
    • Condition: New

    An ABS or traction control warning light can mean a wheel speed sensor has failed. A damaged tone ring, a corroded connector or a worn wheel bearing can be behind the same warning, so find the cause before buying a sensor.

    Fits

    This sensor fits the 2013 Ram 2500 and the 2013-2016 Ram 3500.

    Specifications

    Fit and size

    • Position: rear left
    • Quantity per application: 1
    • Mounting location: wheel
    • Harness length: 73 in (1854 mm)
    • Number of bolt holes: 1

    Build and materials

    • Mounting type: bolt mount
    • Connector: 1 square female connector
    • Terminals: 2 male pin terminals
    • Condition: new
    • Country of origin: China

    In the box

    One ABS wheel speed sensor with its harness, for the rear left. This side takes one, and the rear right is a separate part.

    Interchange: ABS2816 · 68160915AA · ABSC20638 · 533187

    Product information is for general reference and may contain errors. See our Disclaimer.

    This part cross-references / interchanges with the following part numbers:

    ABS2816, 68160915AA, ABSC20638, 533187

    Frequently Asked Questions

    Is this wheel speed sensor right for the 2013-2016 Ram 3500?

    Yes. Standard Ignition ALS2816 fits the 2013-2016 Ram 3500 and the 2013 Ram 2500, and it is the rear left sensor.

    Which wheel does the Standard Ignition ALS2816 go on?

    The rear left wheel. This listing is one sensor, and the rear right side is a separate part that is ordered on its own.

    Do the grommets and wire clips come on the harness of this ABS sensor?

    Yes. OE location grommets and wire clips are on the harness for proper mounting and routing.

    What connector and harness length does the ALS2816 have?

    Standard Ignition ALS2816 has a 73 in (1854 mm) harness ending in one square, sealed female connector with two male pin terminals.

    What can a faulty rear wheel speed sensor look like?

    An ABS or traction control warning light can come on, or the ABS may stop working. A shop can read the fault code and test the sensor.
