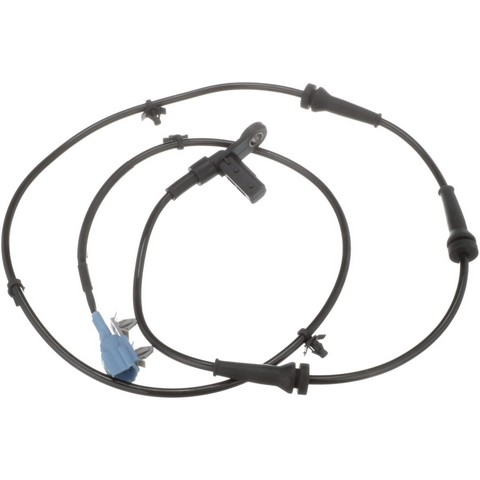

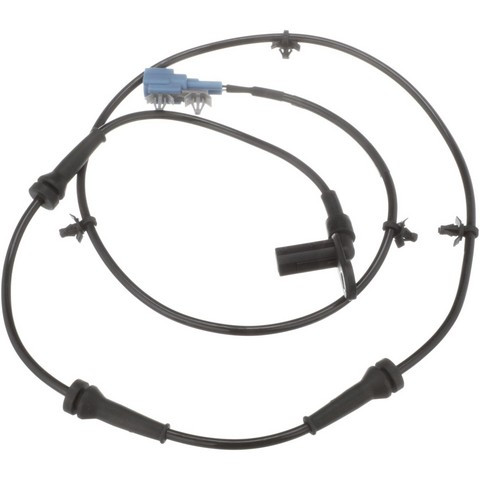

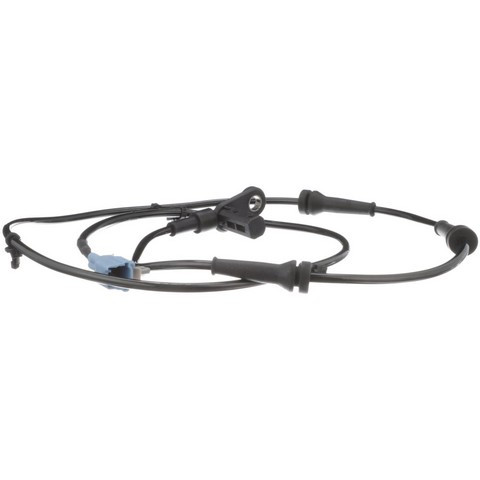

Standard Ignition ALS306 rear left ABS wheel speed sensor for the 2004-2009 Nissan Quest reports wheel speed to the ABS. It bolts on at the wheel and is engineered specifically for Nissan vehicles.
- Synthetic material made to withstand harsh operating conditions
- Grommets and wire clips on the harness for mounting and routing
- Sealed connector for protection in harsh conditions
- Tested on vehicles for correct integration with electronic safety systems
Quick facts
- Part: Standard Ignition ALS306 ABS wheel speed sensor
- Fits: 2004-2009 Nissan Quest
- Position: Rear left
- Condition: New
A lit ABS warning light can mean a wheel speed sensor is not sending a signal. Before you replace this sensor, rule out a damaged harness or connector, since either can light the same warning. This listing is one sensor for the rear left position; the rear right is its own part.
Fits
This sensor is a direct-fit replacement for the 2004-2009 Nissan Quest, and it is tested on vehicles for proper fit.
Specifications
Fit and size
- Position: rear left
- Quantity: 1 for the rear left position
- Mounting: bolt mount at the wheel, 1 bolt hole
- Harness length: 54 in (1370 mm)
Build and materials
- Connector: rectangular, female, 1 connector
- Terminals: 2, male pin
- Condition: new
- Country of origin: China
In the box
One ABS wheel speed sensor. Mounting hardware and a dust shield are not included, and the old mounting bolt may not be reusable, so plan on a new one.
Product information is for general reference and may contain errors. See our Disclaimer.
Frequently Asked Questions
Is this Standard Ignition ABS wheel speed sensor made for the 2004-2009 Nissan Quest?
Yes. Standard Ignition ALS306 is a rear left ABS wheel speed sensor for the 2004-2009 Nissan Quest. The rear right sensor is a separate part.
Does the ALS306 sensor come with a mounting bolt?
No. Mounting hardware and a dust shield are not included with Standard Ignition ALS306, so plan on a new bolt when you fit it.
What harness length and connector does this rear left ABS sensor have?
The harness is 54 in (1370 mm) long and ends in a rectangular female connector with two male pin terminals.
Can an ABS warning light mean the rear left wheel speed sensor has failed?
Yes, it can mean a sensor is not sending a signal. A shop can test the circuit, and a lit ABS light is worth having checked promptly.
What is the Standard Ignition ALS306 sensor made of?
Standard Ignition ALS306 is made of a synthetic material designed to withstand harsh operating conditions, and it uses a sealed connector.
