Front Right ABS Wheel Speed Sensor for 2020-2024 Kia Soul - Standard Ignition ALS3229

$109.99
WARNING:California Proposition 65▾

Vehicles this part fits

    Part number: ALS3229
    UPC: 033086663890
    Condition: New
    Weight: 0.47 LBS
    Item Package Quantity: 1
    $109.99
    Adding to cart… The item has been added

    Have questions?

    Standard Ignition ABS Wheel Speed Sensor P/N:ALS3229
    Standard Ignition ABS Wheel Speed Sensor P/N:ALS3229
    $109.99
    $109.99

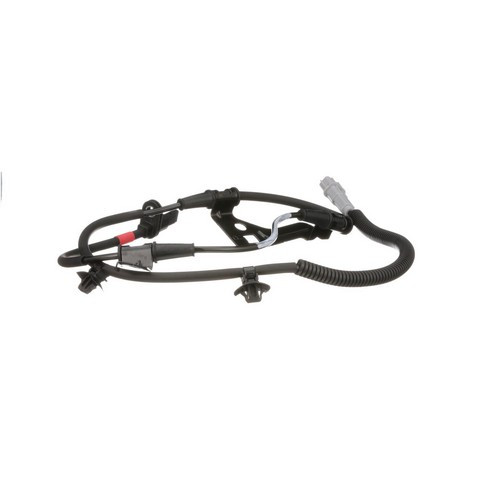

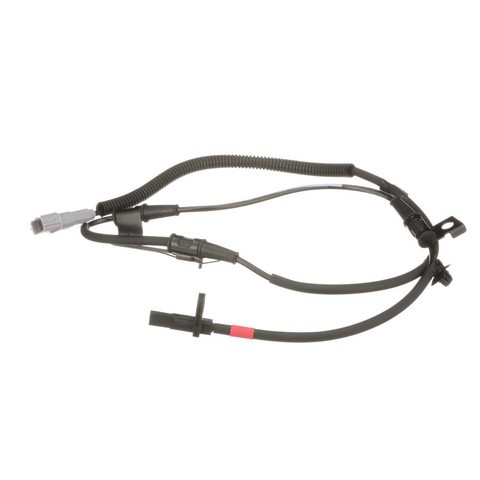

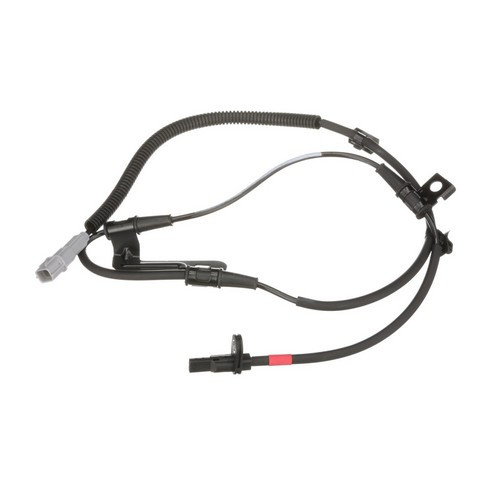

    Standard Ignition ALS3229 front right ABS wheel speed sensor for the 2020-2024 Kia Soul reports wheel speed to the ABS. It is engineered specifically for Kia vehicles and bolts on at the spindle.

    • Synthetic material construction made to withstand harsh operating conditions
    • Location grommets and wire clips on the harness for mounting and routing
    • Tested on vehicles for correct integration with electronic safety systems
    • Sealed connector for protection in harsh conditions

    Quick facts

    • Part: Standard Ignition ALS3229 ABS wheel speed sensor
    • Fits: 2020-2024 Kia Soul
    • Position: Front right
    • Condition: New

    A lit ABS or traction control warning light can mean this sensor is worn, though a damaged tone ring or a faulty harness connection can also be behind it, so find the cause before replacing the part.

    Fits

    It is a direct-fit replacement for the 2020-2024 Kia Soul. The front axle takes one sensor on each side; this listing is the front right one, and the front left is a separate part.

    Specifications

    Fit and size

    • Position: Front right
    • Mounting location: Spindle
    • Mounting: Bolt mount, 3 mounting holes
    • Harness length: 41.5 in (1054.1 mm)
    • Quantity per application: 1

    Build and materials

    • Connector: 1 rectangular male connector
    • Terminals: 2 male pin terminals
    • Wiring harness: included
    • Condition: New
    • Country of origin: China

    In the box

    One front right ABS wheel speed sensor with its wiring harness and mounting bracket. Mounting hardware and a dust shield are not included, so plan on new bolts; the old ones may not be reusable.

    Product information is for general reference and may contain errors. See our Disclaimer.

    Frequently Asked Questions

    Is the Standard Ignition ALS3229 the right ABS wheel speed sensor for the front right of a 2020-2024 Kia Soul?

    Yes. Standard Ignition ALS3229 is the front right wheel speed sensor for the 2020-2024 Kia Soul. The front left side takes a separate sensor.

    Does this ABS wheel speed sensor come with a bracket and wiring harness?

    Yes. The sensor comes with its wiring harness and a mounting bracket. Mounting bolts and a dust shield are not included.

    What connector does the Standard Ignition ALS3229 use?

    It has one rectangular male connector with two male pin terminals. The harness is 41.5 in (1054.1 mm) long.

    How do I check a worn front right ABS wheel speed sensor?

    Watch for an ABS or traction control warning light. Checking the sensor's signal and harness means getting at the wheel area, so a shop can test it with a scan tool.

    Is the Standard Ignition ALS3229 tested on vehicles?

    Yes. Standard Ignition tests its ABS speed sensors on vehicles for correct integration with electronic safety systems.
