Transmission Control Solenoid for 2004-2024 Toyota 4Runner & More - Standard Ignition TCS125

$487.99

Vehicles this part fits

    Part number: TCS125
    UPC: 033086065281
    Condition: New
    Weight: 0.30 LBS
    Item Package Quantity: 1
    $487.99
    Adding to cart… The item has been added

    Have questions?

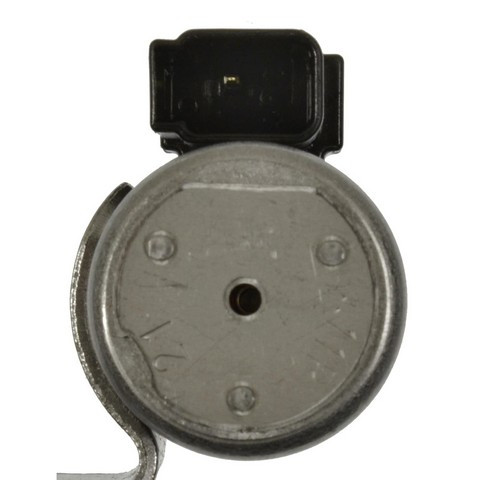

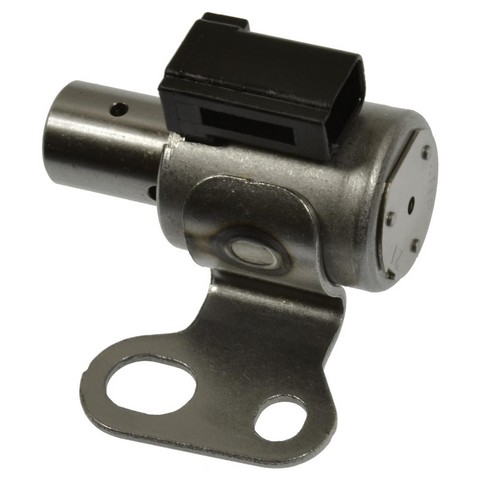

    Standard Ignition Automatic Transmission Control Solenoid P/N:TCS125
    Standard Ignition Automatic Transmission Control Solenoid P/N:TCS125
    $487.99
    $487.99

    Standard Ignition TCS125 transmission control solenoid for the 2004-2024 Toyota 4Runner and other vehicles controls fluid pressure inside the automatic transmission.

    • 100% copper winding for positive valve actuation on command
    • Stainless steel filter screen that keeps contamination out of the valve components
    • Precision-ground pintle that moves freely to block or vent fluid pressure
    • Connector and terminals matched to the harness for a precise connection
    • 100% end-of-line testing of each solenoid

    Quick facts

    • Part: Standard Ignition TCS125 transmission control solenoid
    • Also called: automatic transmission control solenoid
    • Fits: 2004-2024 Toyota 4Runner and other vehicles
    • Material: Metal
    • Condition: New

    A sticking or failed solenoid can show up as harsh, delayed or erratic shifts, or as a transmission warning light. Those signs can come from other faults too, so with the engine off, look over the connector and harness for damage or corrosion before you replace the solenoid.

    Fits

    The 2004-2024 Toyota 4Runner, 2007-2014 Toyota FJ Cruiser and 2004-2009 Lexus GX470 are among the vehicles this solenoid fits, and each takes one. Its resistance and inductance are matched to OE for fit, form and function.

    Specifications

    Fit and size

    • Quantity per vehicle: 1
    • Solenoid quantity included: 1
    • Connector: 1 rectangular, female
    • Terminal: 1 blade, male
    • Attachment method: push on

    Build and materials

    • Material: Metal
    • Filter screen: stainless steel
    • Mounting bracket: included
    • Condition: New
    • Country of origin: Japan

    In the box

    One solenoid with a mounting bracket. The wiring harness, gaskets and hardware are not included; plan on new hardware, since the old pieces may not be reusable.

    Interchange: TCS319 · TCS39 · TCS668 · 3524060020

    Product information is for general reference and may contain errors. See our Disclaimer.

    This part cross-references / interchanges with the following part numbers:

    TCS319, TCS39, TCS668, 3524060020, TCS125

    Frequently Asked Questions

    Is the Standard Ignition TCS125 right for a 2004-2024 Toyota 4Runner?

    Yes, the Standard Ignition TCS125 fits the 2004-2024 Toyota 4Runner, which takes one; for another model, check your year and model in the "Vehicles it fits" section.

    Does the TCS125 solenoid come with a wiring harness or gaskets?

    No, the Standard Ignition TCS125 comes as one solenoid with a mounting bracket; the wiring harness, gaskets and hardware are not included.

    What connector does this automatic transmission control solenoid have?

    This solenoid has one rectangular female connector with a single male blade terminal. It attaches by push-on.

    Which shifting problems can point to a failing transmission control solenoid?

    Harsh, delayed or erratic shifts, or a transmission warning light, can mean a solenoid is sticking or has failed. A shop can test it to confirm.

    Is each Standard Ignition TCS125 solenoid tested?

    Yes. Each one goes through 100% end-of-line testing to meet or exceed OE performance.
