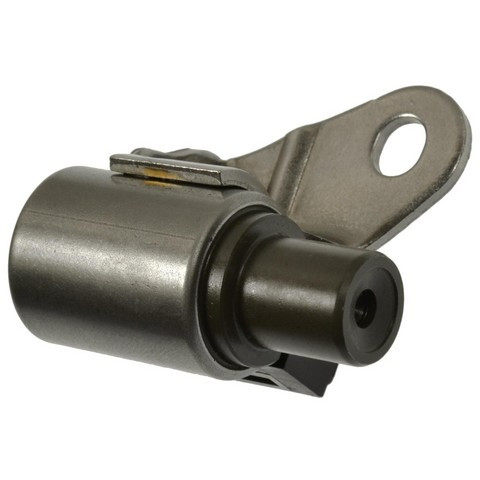

Standard Ignition TCS157 transmission control solenoid for the 2009-2016 Toyota Corolla and other vehicles blocks or vents fluid pressure inside the transmission on command. This automatic transmission control solenoid has resistance and inductance matched to OE for proper fit, form and function.
- 100% copper winding for positive valve actuation on command
- Precision-ground pintle that moves freely to block or vent fluid pressure
- Stainless steel filter screen that keeps contamination out of the valve components
- Rectangular female connector with a male blade terminal
- 100% end-of-line testing of every solenoid
Quick facts
- Part: Standard Ignition TCS157 transmission control solenoid
- Also called: automatic transmission control solenoid
- Fits: 2009-2016 Toyota Corolla and other vehicles
- Material: Metal, plastic
- Condition: New
Harsh or delayed shifts or a transmission warning light can point to a solenoid problem, though other faults produce them too. Before you replace this solenoid, rule out a damaged connector or wiring fault and other transmission problems, so you do not fit a new part to a different fault.
Fits
This solenoid fits the 2009-2016 Toyota Corolla, the 2007-2018 Toyota Yaris and the 2007-2008 Toyota Matrix, and a single solenoid goes in each of them. Its connector and terminals match OE for a precise connection to the wire harness.
Specifications
Fit and size
- Mounting location: inside the transmission
- Attachment method: bolt mount, 1 mounting hole
- Quantity per vehicle: 1
- Connector: rectangular, female, quantity 1
- Terminal: male blade, quantity 1
- Harness: none, no wire
Build and materials
- Material: metal, plastic
- Winding: 100% copper
- Filter screen: stainless steel
- Mounting bracket: included
- Condition: new
- Country of origin: Taiwan
In the box
One transmission control solenoid with its mounting bracket. Gaskets, hardware and a wiring harness are not included, so plan on new mounting bolts, since the old ones may not be reusable.
Interchange: TCS80 · TCS35 · TCS700 · 3524052050 · 3524052051
Product information is for general reference and may contain errors. See our Disclaimer.
This part cross-references / interchanges with the following part numbers:
TCS80, TCS35, TCS700, TCS157, 3524052050, 3524052051
Frequently Asked Questions
Does the Standard Ignition TCS157 transmission control solenoid fit the 2009-2016 Toyota Corolla?
Yes. Standard Ignition TCS157 is listed for the 2009-2016 Toyota Corolla, and the car takes one solenoid.
Does the TCS157 come with a wiring harness or gaskets?
No. Standard Ignition TCS157 is one solenoid with a mounting bracket. The wiring harness, gaskets and hardware are not included.
What connector and terminal does this transmission control solenoid have?
It has one rectangular female connector and one male blade terminal. The solenoid bolts on through a single mounting hole.
What does the stainless steel screen on this solenoid do?
The stainless steel filter screen prevents contamination of the valve components. The precision-ground pintle moves freely to block or vent fluid pressure.
Is 3524052050 an interchange number for this solenoid?
Yes. The Standard Ignition TCS157 interchange list includes 3524052050, along with 3524052051, TCS80, TCS35 and TCS700.
