Standard Ignition Door Lock Actuator P/N:DLA-5
Standard Motor Products

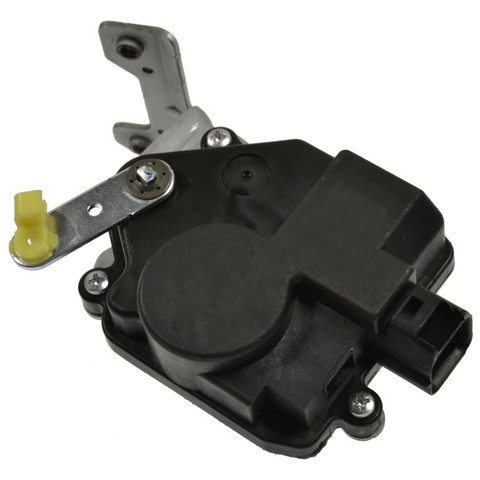

Standard Ignition DLA-791 rear left door lock actuator for the 2001-2005 Hyundai Santa Fe moves the door's lock mechanism when you use the power lock switch. The electric unit sits in the door and drives the lock when the switch or key fob sends a signal.
A failing actuator can show up as a lock that ignores the switch or key fob, a lock that works only some of the time, or a buzzing noise from the door. Before you replace the actuator, rule out a blown fuse, a faulty lock switch and a damaged wire or loose connector at the door, because the lock may be failing for one of those reasons.
This door lock actuator replacement is a direct-fit part for the 2001-2005 Hyundai Santa Fe, which takes one for the rear left door. This listing is one actuator for that side; the rear right door takes its own, ordered separately.
Fit and size
Build and materials
One door lock actuator with its latch. The wiring harness, mounting hardware and activation rods are not included; plan on new bolts, since the old ones may not be reusable.
Interchange: DLA1514 · DLA1260 · DLA1014 · 9577026000
Product information is for general reference and may contain errors. See our Disclaimer.
This part cross-references / interchanges with the following part numbers:
Does the Standard Ignition DLA-791 fit the rear left door of a 2001-2005 Hyundai Santa Fe?
Yes. Standard Ignition DLA-791 is the rear left door lock actuator for the 2001-2005 Hyundai Santa Fe, and that vehicle takes one for the rear left door.
Does this Standard Ignition door lock actuator come with the latch and wiring harness?
It includes the latch. The wiring harness, mounting hardware and activation rods are not included.
What kind of connector does the DLA-791 actuator use?
Standard Ignition DLA-791 has one square female connector with five male blade terminals.
How can I tell if a door lock actuator is going bad?
Common signs are a lock that ignores the switch or key fob, a lock that works only some of the time, or a buzzing noise from the door. A shop can test the actuator and its wiring.
Does DLA1514 interchange with the Standard Ignition DLA-791?
Yes, DLA1514 is one of the interchange numbers for Standard Ignition DLA-791, along with DLA1260, DLA1014 and 9577026000.
