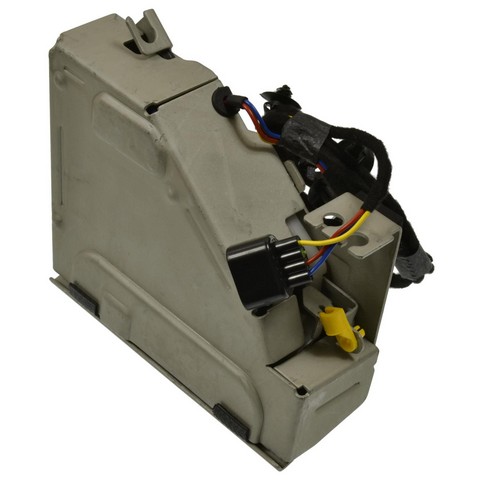

Standard Ignition DLA857 rear left door lock actuator for the 2010-2013 Ford Transit Connect moves the door lock when you use the power lock switch. It replaces an actuator that has worn out or failed on that door.
- Designed to meet Federal Safety Standards to reduce the possibility of passenger entrapment
- Corrosion-resistant housing that adds to the latch's durability
- Tested for reliable service
- Latch included with the actuator
Quick facts
- Part: Standard Ignition DLA857 door lock actuator
- Fits: 2010-2013 Ford Transit Connect
- Position: Rear left
- Condition: New
A door that ignores the power lock switch, or a buzz from inside the door with no lock movement, can mean this actuator is worn, though the power lock switch or the wiring to the door can produce the same signs, so trace the cause first.
Fits
This is a direct-fit replacement for the 2010-2013 Ford Transit Connect, which takes one for the rear left position. The rear right side is a separate part, ordered on its own.
Specifications
Fit and size
- Position: Rear left
- Quantity per vehicle: 1
- Attachment method: Bolt on
- Connector: 1 oval, female
- Terminals: 4 female blade
Build and materials
- Condition: New
- Country of origin: Turkey
In the box
One door lock actuator with latch. Mounting hardware, activation rods and the wiring harness are not included, so plan on new fasteners, since the old ones may not be reusable.
Interchange: DLA1580 · DLA817 · DLA1080 · 9T1Z6126413A
Product information is for general reference and may contain errors. See our Disclaimer.
This part cross-references / interchanges with the following part numbers:
DLA1580, DLA817, DLA1080, 9T1Z6126413A
Frequently Asked Questions
Does the Standard Ignition DLA857 fit the rear left door of the 2010-2013 Ford Transit Connect?
Yes. Standard Ignition DLA857 is the rear left door lock actuator for the 2010-2013 Ford Transit Connect, and the rear right door has its own actuator.
Does the DLA857 door lock actuator come with the latch?
Yes, this rear left actuator includes the latch. Mounting hardware, activation rods and the wiring harness are not included, so plan on new fasteners.
What connector does this rear left door lock actuator have?
This actuator has one oval female connector with four female blade terminals.
How can I tell if my rear left door lock actuator is going bad?
Signs can include the door not locking or unlocking from the power switch, slow lock movement or a buzz from inside the door. A shop can test the electrical side.
Is this Standard Ignition door lock actuator built to a safety standard?
Yes. Standard Ignition DLA857 is designed to meet Federal Safety Standards aimed at reducing passenger entrapment, and its housing resists corrosion.
