VVT Sprocket for 2012-2019 Ford Explorer & More - Standard Ignition VVT560

$110.99

Vehicles this part fits

    Part number: VVT560
    UPC: 033086103204
    Condition: New
    Weight: 2.18 LBS
    Item Package Quantity: 1
    $110.99
    Adding to cart… The item has been added

    Have questions?

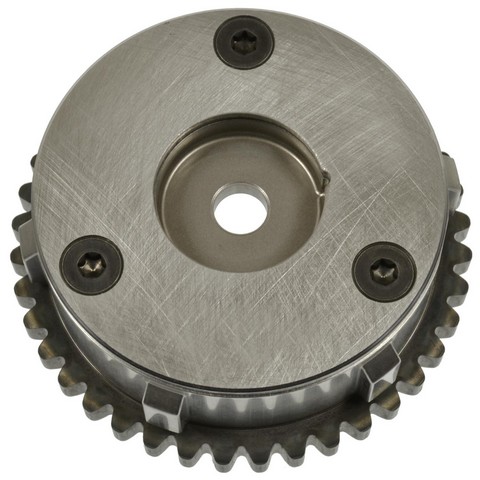

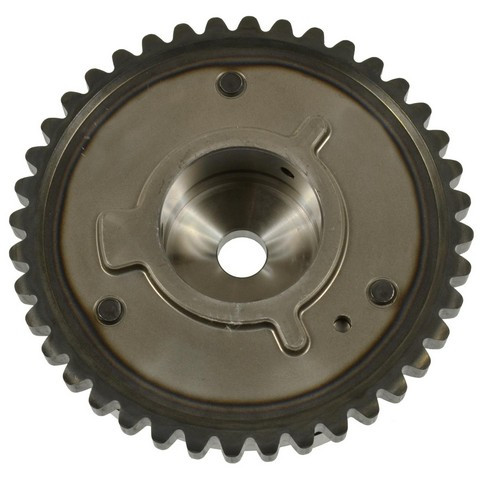

    Standard Ignition Engine Variable Valve Timing (VVT) Sprocket P/N:VVT560
    Standard Ignition Engine Variable Valve Timing (VVT) Sprocket P/N:VVT560
    $110.99
    $110.99

    Standard Ignition VVT560 VVT sprocket for the 2012-2015 Ford Explorer 4-cylinder 2.0L, the 2016-2019 Explorer 4-cylinder 2.3L and other vehicles is the toothed sprocket in the engine's variable valve timing system. Another name for it is an engine variable valve timing VVT sprocket.

    • Precision-machined for accurate variable valve timing
    • Designed to lower leakage and lash for noise-free operation
    • 42-tooth sprocket with tooth profiles shaped for quiet operation
    • 100% end-of-line testing on every unit

    Quick facts

    • Part: Standard Ignition VVT560 VVT sprocket
    • Also called: engine variable valve timing VVT sprocket
    • Fits: the 2012-2015 Ford Explorer 4-cylinder 2.0L, the 2016-2019 Explorer 4-cylinder 2.3L and other vehicles
    • Position: Intake, exhaust
    • Material: Metal
    • Condition: New

    A worn sprocket can show up as a rough idle, a rattle at startup or a timing-related check engine light. A worn timing chain or a faulty VVT solenoid can be behind those signs too, so find the cause before buying.

    Fits

    It is a direct-fit OE replacement, and the vehicles it fits include the 2013-2018 Ford Escape 4-cylinder 2.0L and the 2015-2017 Ford Mustang 4-cylinder 2.3L, with one sprocket listed for each. To check another car, open the "Vehicles it fits" section and look up your exact model and engine.

    Specifications

    Fit and size

    • Position: Intake, exhaust
    • Quantity per vehicle: 1
    • Outside diameter: 98.044 mm (3.86 in)
    • Inside diameter: 33.528 mm (1.32 in)
    • Lug hole diameter: 10.668 mm (0.42 in)
    • Thickness: 8.382 mm (0.33 in)
    • Number of teeth: 42, tooth width 8.382 mm (0.33 in)
    • Mounting hole quantity: 1
    • Number of timing marks: 3

    Build and materials

    • Material: Metal
    • Number of rows: 1
    • Keyway notch: Yes
    • Condition: New
    • Country of origin: China

    In the box

    One VVT sprocket. Mounting hardware is not included, so plan on a new bolt, because the old one may not be reusable.

    Product information is for general reference and may contain errors. See our Disclaimer.

    Frequently Asked Questions

    Does the Standard Ignition VVT560 fit the 2013-2018 Ford Escape 4-cylinder 2.0L?

    Yes, Standard Ignition VVT560 fits the 2013-2018 Ford Escape 4-cylinder 2.0L, with one sprocket listed for it. For another car, open the "Vehicles it fits" section and check your model and engine.

    Does this VVT sprocket come with the installation bolt?

    No. The Standard Ignition VVT560 listing is one VVT sprocket, and mounting hardware is not included, so plan on a new bolt.

    How many teeth does the VVT560 sprocket have?

    This sprocket has 42 teeth in one row. It measures 98.044 mm (3.86 in) outside diameter, 33.528 mm (1.32 in) inside diameter and 8.382 mm (0.33 in) thick.

    What can a failing VVT sprocket do to engine performance?

    A failing sprocket can leave valve timing off, which can show up as reduced power, hesitation or a timing-related check engine light. A shop can read the codes and confirm the cause.

    Does Standard Ignition test every VVT560 sprocket?

    Yes. Each Standard Ignition VVT560 sprocket undergoes 100% end-of-line testing.
