Left VVT Sprocket for 2011-2018 Subaru Forester & More - Standard Ignition VVT570

$359.99

Vehicles this part fits

    Part number: VVT570
    UPC: 033086179506
    Condition: New
    Weight: 3.00 LBS
    Item Package Quantity: 1
    $359.99
    Adding to cart… The item has been added

    Have questions?

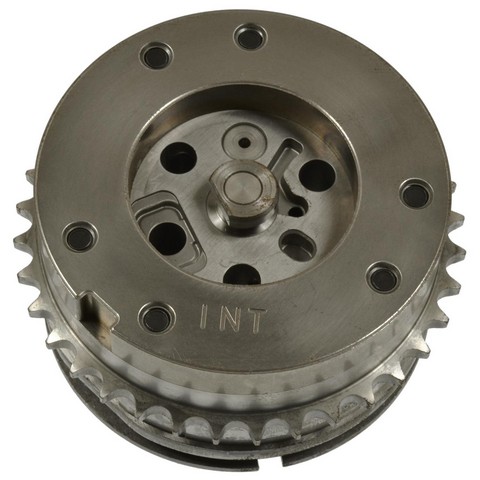

    Standard Ignition Engine Variable Valve Timing (VVT) Sprocket P/N:VVT570

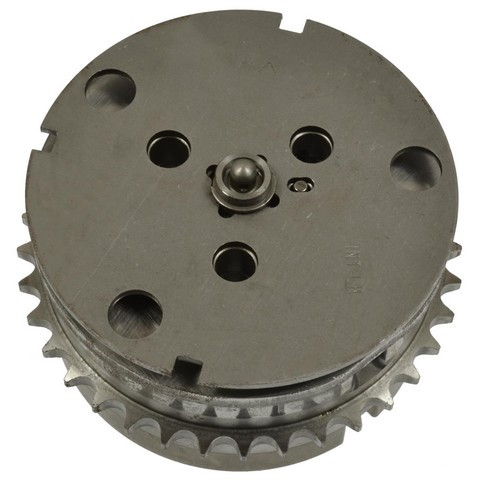

    Standard Ignition Engine Variable Valve Timing (VVT) Sprocket P/N:VVT570
    $359.99
    $359.99

    Standard Ignition VVT570 left VVT sprocket for the 2011-2018 Subaru Forester H4 2.5L and other vehicles works in the intake-side variable valve timing system. Some catalogs call it an engine variable valve timing vvt sprocket.

    • Designed to lower leakage and lash for noise-free operation
    • 42 teeth with a tooth profile made for quiet operation
    • Precision-machined for accurate variable valve timing
    • Every sprocket goes through 100% end-of-line testing
    • Six timing marks and a keyway notch

    Quick facts

    • Part: Standard Ignition VVT570 VVT sprocket
    • Also called: engine variable valve timing vvt sprocket
    • Fits: 2011-2018 Subaru Forester H4 2.5L and other vehicles
    • Position: Intake (left)
    • Material: Metal
    • Condition: New

    A worn or failing VVT sprocket can show up as a rough idle, a rattle or tick near the timing area, or poor drivability. These signs alone do not prove the sprocket is at fault, since a faulty camshaft position sensor can also cause a rough idle. This listing is one sprocket for the left intake side; the right side is ordered separately.

    Fits

    It is a direct-fit OE replacement across a wide range of Subaru models, including the 2013-2014 Subaru Outback H4 2.5L and the 2013-2014 Subaru Legacy H4 2.5L. If your Subaru is not named here, look it up in the "Vehicles it fits" section.

    Specifications

    Fit and size

    • Position: Intake (left)
    • Quantity per application: 1
    • Number of teeth: 42
    • Outside diameter: 93.726 mm (3.69 in)
    • Inside diameter: 44.958 mm (1.77 in)
    • Thickness and tooth width: 4.064 mm (0.16 in)
    • Mounting hole quantity: 1
    • Number of timing marks: 6

    Build and materials

    • Material: Metal
    • Keyway notch: Yes
    • Adjustable: No
    • Condition: New
    • Country of origin: China

    In the box

    One VVT sprocket. Mounting hardware is not included, so plan on a new installation bolt.

    Product information is for general reference and may contain errors. See our Disclaimer.

    Frequently Asked Questions

    Will the Standard Ignition VVT570 fit a 2011-2018 Subaru Forester H4 2.5L?

    Yes. Standard Ignition VVT570 is listed for the 2011-2018 Subaru Forester H4 2.5L. It is the left intake VVT sprocket, and the right side is a separate part.

    Does the Standard Ignition VVT570 come with an installation bolt?

    No. The VVT570 is listed with hardware not included, so plan on a new installation bolt. The listing is one left intake VVT sprocket.

    How many teeth does this VVT sprocket have?

    This VVT sprocket has 42 teeth. Outside diameter is 93.726 mm (3.69 in), inside diameter is 44.958 mm (1.77 in), and it has one mounting hole.

    What can a failing left intake VVT sprocket sound or feel like?

    A failing sprocket can show up as a rattle or tick near the timing area, a rough idle or poor drivability. Checks that need the engine running are a job for a shop.

    Is each Standard Ignition VVT570 sprocket tested?

    Yes. Each Standard Ignition VVT570 goes through 100% end-of-line testing, and the sprocket is precision-machined for accurate variable valve timing.
