Right VVT Sprocket for 2011-2015 Subaru Forester & More - Standard Ignition VVT579

$563.99

Vehicles this part fits

    Part number: VVT579
    UPC: 033086191713
    Condition: New
    Weight: 3.40 LBS
    Sold as: 1 (right intake side)
    $563.99
    Adding to cart… The item has been added

    Have questions?

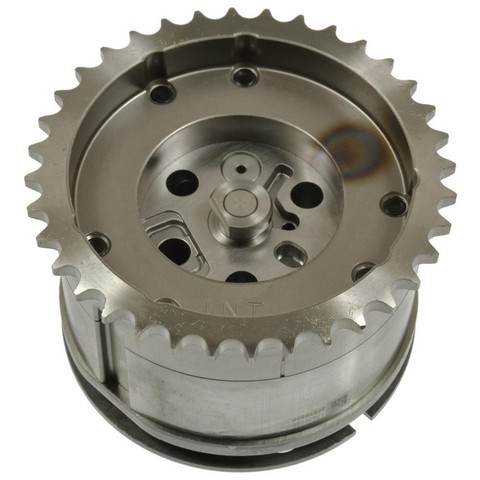

    Standard Ignition Engine Variable Valve Timing (VVT) Sprocket P/N:VVT579
    Standard Ignition Engine Variable Valve Timing (VVT) Sprocket P/N:VVT579
    $563.99
    $563.99

    Standard Ignition VVT579 right VVT sprocket for the 2011-2015 Subaru Forester H4 2.5L and other vehicles helps the engine vary its valve timing.

    • Designed to lower leakage and lash for noise-free operation
    • Tooth profile made for quiet operation
    • Precision-machined for accurate variable valve timing
    • 100% end-of-line testing on every sprocket

    Quick facts

    • Part: Standard Ignition VVT579 VVT sprocket
    • Also called: engine variable valve timing vvt sprocket
    • Fits: 2011-2015 Subaru Forester H4 2.5L and other vehicles
    • Position: Intake (right)
    • Material: Metal
    • Condition: New

    A rough idle, a rattle from the timing area or a check engine light can mean the sprocket is worn, though the camshaft position sensor or the VVT oil control valve can be behind them too. Some catalogs list this part as an engine variable valve timing VVT sprocket.

    Fits

    This is a direct-fit OE replacement for the 2011-2015 Subaru Forester H4 2.5L, the 2013-2014 Subaru Outback H4 2.5L and the 2013-2014 Subaru Legacy H4 2.5L. The listing is one sprocket for the right intake side, which takes one; the left intake side is a separate part ordered on its own.

    Specifications

    Fit and size

    • Position: Intake (right)
    • Quantity: 1 (right intake side)
    • Outside diameter: 3.68 in (93.472 mm)
    • Inside diameter: 2.91 in (73.914 mm)
    • Thickness: 0.16 in (4.064 mm)
    • Number of teeth: 36
    • Mounting holes: 1

    Build and materials

    • Material: Metal
    • Timing marks: 5
    • Keyway notch: Yes
    • Condition: New
    • Country of origin: China

    In the box

    One VVT sprocket. Hardware is not included, so plan on new bolts, since the old ones may not be reusable.

    Interchange: 35-1377
    VV5084 · VVTC20038 · ECP1781 · 13320AA030 · 13320AA031 · 13320AA032

    Product information is for general reference and may contain errors. See our Disclaimer.

    This part cross-references / interchanges with the following part numbers:

    VV5084, VVTC20038, ECP1781, 35-1377, VVT579, 13320AA030, 13320AA031, 13320AA032

    Frequently Asked Questions

    Does the Standard Ignition VVT579 fit the 2011-2015 Subaru Forester H4 2.5L?

    Yes. Standard Ignition VVT579 is the right intake VVT sprocket for the 2011-2015 Subaru Forester H4 2.5L, and it is also listed for other Subaru vehicles.

    Does the VVT579 sprocket come with an installation bolt?

    No. This listing is one VVT sprocket and hardware is not included, so have new bolts on hand for the job.

    How many teeth does the Standard Ignition VVT579 sprocket have?

    Standard Ignition VVT579 has 36 teeth, a 3.68 in (93.472 mm) outside diameter, a 2.91 in (73.914 mm) inside diameter and one mounting hole.

    Is it safe to keep driving with a worn VVT sprocket?

    No. Have it checked or replaced promptly, because a worn sprocket can affect valve timing and how the engine runs. A shop can test the VVT system.

    Does Standard Ignition test every VVT579 sprocket?

    Yes. Every Standard Ignition VVT579 sprocket goes through 100% end-of-line testing.
