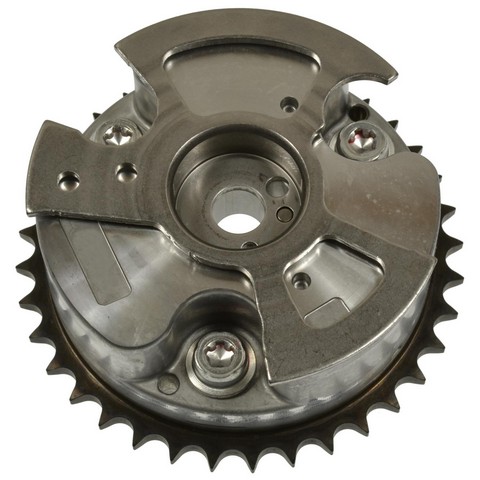

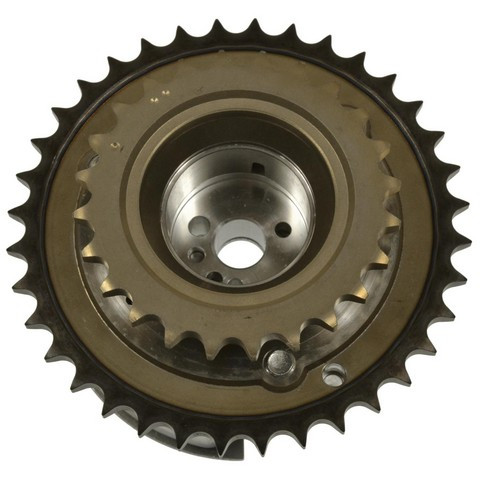

Standard Ignition VVT652 VVT sprocket for the 2016-2018 Lexus RC300 V6 3.5L and other vehicles helps the engine adjust valve timing. The catalog also lists it as an engine variable valve timing VVT sprocket.
- Precision-machined for accurate variable valve timing
- Designed to lower leakage and lash for noise-free operation
- Tooth profiles shaped for quiet operation
- Single-row sprocket with 36 teeth and 4 timing marks
- 100% end-of-line testing on every sprocket
Quick facts
- Part: Standard Ignition VVT652 VVT sprocket
- Also called: engine variable valve timing vvt sprocket
- Fits: 2016-2018 Lexus RC300 V6 3.5L and other vehicles
- Material: Metal
- Condition: New
A worn VVT sprocket can show up as a rough idle, a rattle from the timing drive or a cam timing warning light. A stretched timing chain or a faulty VVT solenoid can be behind these signs too, so find the cause before buying. This listing is one sprocket; most fitments take two and a few take one.
Fits
This VVT sprocket is a direct-fit replacement for the 2015-2018 Lexus RC350 V6 3.5L, the 2016-2017 Lexus IS300 V6 3.5L and other Lexus models. Open the "Vehicles it fits" section to check your exact model and engine.
Specifications
Fit and size
- Quantity per vehicle: 2 for most fitments, 1 for a few
- Outside diameter: 111.506 mm (4.39 in)
- Inside diameter: 33.782 mm (1.33 in)
- Lug hole diameter: 12.446 mm (0.49 in)
- Thickness: 4.572 mm (0.18 in)
- Tooth width: 4.572 mm (0.18 in)
- Number of teeth: 36
- Mounting holes: 1
- Timing marks: 4
Build and materials
- Type: VVT sprocket, 1 gear, 1 row
- Material: Metal
- Adjustable: No
- Keyway notch: No
- Condition: New
- Country of origin: Japan
In the box
One VVT sprocket. Hardware is not included, so plan on new fasteners rather than reusing old ones.
Interchange: 35-1450
VV5157 · VVTC20054 · ECP1854 · 1305031161 · 1305031162 · 1305031163
Product information is for general reference and may contain errors. See our Disclaimer.
This part cross-references / interchanges with the following part numbers:
VV5157, VVTC20054, ECP1854, 35-1450, VVT652, 1305031161, 1305031162, 1305031163
Frequently Asked Questions
Is the Standard Ignition VVT652 VVT sprocket right for a 2016-2018 Lexus RC300 V6 3.5L?
Yes. Standard Ignition VVT652 is a direct-fit replacement for the 2016-2018 Lexus RC300 V6 3.5L. For another engine or model, open the "Vehicles it fits" section.
Does the VVT652 sprocket come with bolts or other hardware?
No. The listing is one VVT sprocket and hardware is not included, so plan on new fasteners instead of reusing the old ones.
How many teeth does this VVT sprocket have, and how big is it?
This sprocket has 36 teeth in a single row. It measures 111.506 mm (4.39 in) across, with a 33.782 mm (1.33 in) inside diameter and 4 timing marks.
What can a worn VVT sprocket sound or feel like?
A worn sprocket can come with a rough idle, a rattle from the timing drive or a cam timing warning light. A shop can test the VVT system, since the engine must run to check it.
Does Standard Ignition VVT652 replace ECP1854?
Yes. ECP1854 is one of the numbers Standard Ignition VVT652 replaces, along with 35-1450 and VV5157. All of its interchange numbers are on the Interchange line.
