Right VVT Sprocket for 2012-2015 Toyota Camry & More - Standard Ignition VVT527

$327.99

Vehicles this part fits

    Part number: VVT527
    UPC: 727943772442
    Condition: New
    Weight: 2.50 LBS
    Item Package Quantity: 1
    $327.99
    Adding to cart… The item has been added

    Have questions?

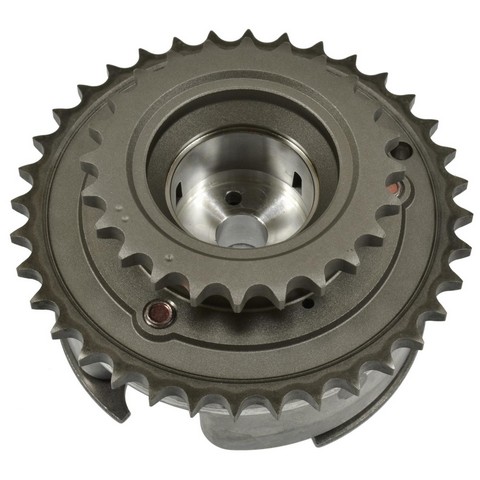

    Standard Ignition Engine Variable Valve Timing (VVT) Sprocket P/N:VVT527
    Standard Ignition Engine Variable Valve Timing (VVT) Sprocket P/N:VVT527
    $327.99
    $327.99

    Standard Ignition VVT527 VVT sprocket for the 2012-2015 Toyota Camry V6 3.5L and other vehicles helps the engine adjust valve timing. It is also called an engine variable valve timing sprocket.

    • Designed to lower leakage and lash for noise-free operation
    • Tooth profiles shaped for quiet operation
    • Precision-machined for accurate variable valve timing
    • 100% end-of-line testing on every sprocket
    • Metal construction with a keyway notch and three timing marks

    Quick facts

    • Part: Standard Ignition VVT527 VVT sprocket
    • Also called: engine variable valve timing sprocket
    • Fits: 2012-2015 Toyota Camry V6 3.5L and other vehicles
    • Material: Metal
    • Condition: New

    A rough idle or a drop in drivability can mean this sprocket is worn, though a fault in the VVT solenoid or the camshaft position sensor can show up the same way, so trace the cause before you buy a replacement. This listing is one sprocket, and the 2012-2015 Toyota Camry V6 3.5L takes two.

    Fits

    The 2012-2015 Toyota Camry V6 3.5L, the 2010-2016 Toyota Highlander V6 3.5L and the 2010-2012 Toyota RAV4 V6 3.5L are among the vehicles this direct-fit replacement VVT sprocket fits.

    Specifications

    Fit and size

    • Quantity per vehicle: 2 on most fits, 1 on a few
    • Outside diameter: 111.506 mm (4.39 in)
    • Inside diameter: 33.782 mm (1.33 in)
    • Lug hole diameter: 12.446 mm (0.49 in)
    • Mounting hole quantity: 1
    • Thickness: 4.826 mm (0.19 in)
    • Number of teeth: 38 and 24 (two gears, two rows)
    • Tooth width: 4.826 mm (0.19 in)

    Build and materials

    • Material: Metal
    • Adjustable: No
    • Hardware: not included
    • Condition: New
    • Country of origin: China

    In the box

    One VVT sprocket. Mounting hardware is not included, so plan on a new installation bolt rather than reusing the old one.

    Product information is for general reference and may contain errors. See our Disclaimer.

    Frequently Asked Questions

    Does the Standard Ignition VVT527 fit the 2010-2016 Toyota Highlander V6 3.5L?

    Yes, the Standard Ignition VVT527 fits the 2010-2016 Toyota Highlander V6 3.5L; to check another car, use the "Vehicles it fits" section on this page.

    Is an installation bolt included with the VVT527 sprocket?

    No, the VVT527 comes as the sprocket alone with mounting hardware not included, so plan on a new bolt rather than reusing the old one.

    How many teeth does the VVT527 sprocket have?

    The Standard Ignition VVT527 has two gears in two rows, with 38 and 24 teeth. Its outside diameter is 111.506 mm (4.39 in) and its inside diameter is 33.782 mm (1.33 in).

    Will a worn VVT sprocket affect idle and drivability?

    It can: this sprocket helps keep valve timing accurate, and a worn one may leave the engine idling rough, so a shop can test the VVT system to confirm.

    Is each Standard Ignition VVT sprocket tested before use?

    Yes, each Standard Ignition VVT sprocket goes through 100% end-of-line testing.
