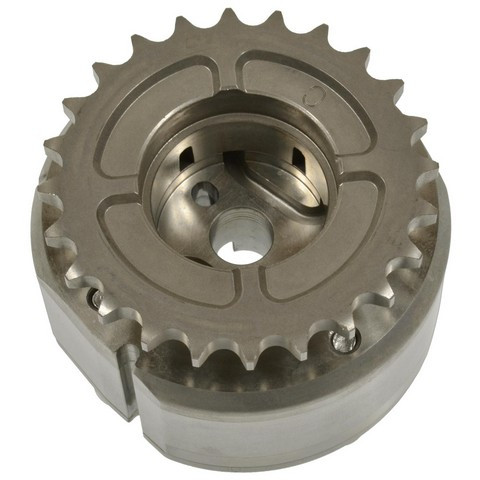

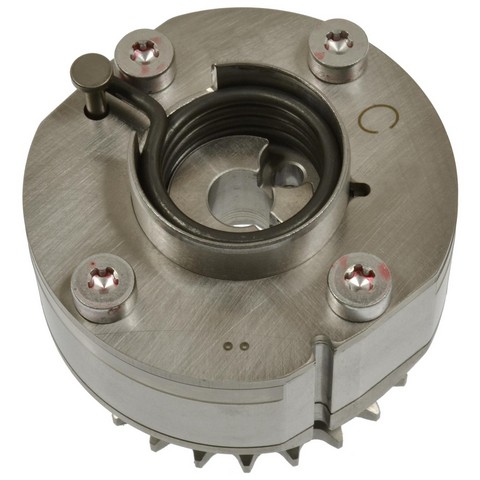

Standard Ignition VVT601 left VVT sprocket for the 2008 Toyota Camry V6 3.5L and other vehicles helps keep variable valve timing accurate. It is a direct-fit OE replacement, and its OE-matching tooth profiles give quiet operation.
- Precision-machined for accurate variable valve timing
- Designed to lower leakage and lash, which supports noise-free operation
- Helps restore engine horsepower and torque curves while supporting lower emissions
- 100% end-of-line testing on every sprocket
Quick facts
- Part: Standard Ignition VVT601 VVT sprocket
- Also called: engine variable valve timing vvt sprocket
- Fits: 2008 Toyota Camry V6 3.5L and other vehicles
- Position: Exhaust (left)
- Material: Metal
- Condition: New
A worn VVT sprocket can show up as a rough idle, noise from the timing area or a warning light, but faults in other engine parts can look the same, so find out why before you replace it. A first check you can do with the engine off and cool is the oil level on the dipstick; a shop can read the codes and test the rest.
Fits
The 2006-2008 Toyota RAV4 V6 3.5L and the 2008 Toyota Highlander V6 3.5L take this sprocket too, along with many other vehicles. This listing is one sprocket for the left exhaust side; the other side is a separate part, normally replaced at the same time.
Specifications
Fit and size
- Position: Exhaust (left)
- Outside diameter: 82.55 mm (3.25 in)
- Inside diameter: 37.592 mm (1.48 in)
- Thickness: 5.588 mm (0.22 in)
- Number of teeth: 24
- Mounting hole: 1, with a lug hole diameter of 12.192 mm (0.48 in)
- Keyway notch: yes
- Timing marks: 1
Build and materials
- Material: Metal
- Number of rows: 1
- Adjustable: No
- Condition: New
- Country of origin: China
In the box
One VVT sprocket for the left exhaust side. Quantity per vehicle is one or two depending on the vehicle. Hardware and a bolt are not included, so plan on new bolts.
Product information is for general reference and may contain errors. See our Disclaimer.
Frequently Asked Questions
Does the VVT601 sprocket fit the 2008 Toyota Camry V6 3.5L?
Yes. Standard Ignition VVT601 fits the 2008 Toyota Camry V6 3.5L and the 2006-2008 Toyota RAV4 V6 3.5L. Look up your own car in the "Vehicles it fits" section.
Does the VVT601 sprocket come with a bolt?
No. This listing is one sprocket; hardware and a bolt are not included, so plan on new bolts.
How many teeth and what outside diameter does this VVT sprocket have?
Standard Ignition VVT601 has 24 teeth and an outside diameter of 82.55 mm (3.25 in), with an inside diameter of 37.592 mm (1.48 in).
Is this engine variable valve timing VVT sprocket for the left exhaust side?
Yes. This sprocket is for the exhaust, left position. The other side is a separate part.
Is each VVT601 sprocket tested at the end of the line?
Yes. Every unit undergoes 100% end-of-line testing to meet or exceed OE performance.
