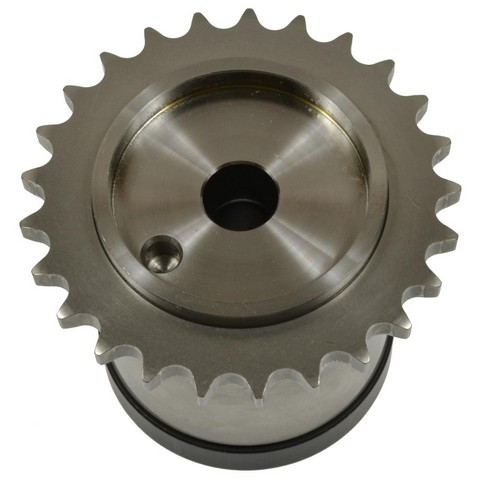

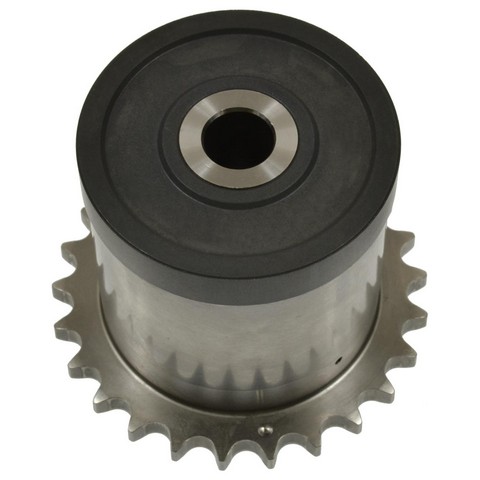

Standard Ignition VVT541 VVT sprocket for the 1990-1999 Nissan Sentra 4-cylinder 1.6L and other vehicles is the toothed sprocket in the engine's variable valve timing system. Parts lists also call it an engine variable valve timing vvt sprocket.
- Designed to help restore horsepower and torque curves while reducing emissions
- Designed to lower leakage and lash for noise-free operation
- 25 teeth with a tooth profile made for quiet operation
- Precision-machined for accurate variable valve timing
- 100% end-of-line testing on every sprocket
Quick facts
- Part: Standard Ignition VVT541 VVT sprocket
- Also called: engine variable valve timing vvt sprocket
- Fits: 1990-1999 Nissan Sentra 4-cylinder 1.6L and other vehicles
- Material: Metal
- Condition: New
A worn VVT sprocket can bring a rough idle, ticking or rattling from the timing area, or a timing-related warning light, but those signs have other possible sources. Before you replace it, find the cause: with the engine off and cool, look over the sprocket teeth for chips, cracks and wear. A shop can run any test that needs the engine running.
Fits
It is a direct-fit replacement for the 1990-1999 Nissan Sentra 4-cylinder 1.6L, the 1995-1998 Nissan 200SX 4-cylinder 1.6L and the 1991-1993 Nissan NX 4-cylinder 1.6L. This listing is one sprocket; the 1991-1993 Nissan NX 4-cylinder 1.6L takes one, and so do the other two.
Specifications
Fit and size
- Quantity per vehicle: 1
- Outside diameter: 78.74 mm (3.1 in)
- Inside diameter: 45.72 mm (1.8 in)
- Thickness: 5.08 mm (0.2 in)
- Number of teeth: 25
- Tooth width: 5.08 mm (0.2 in)
- Mounting hole quantity: 1
- Lug hole diameter: 13.208 mm (0.52 in)
Build and materials
- Material: Metal
- Adjustable: No
- Number of timing marks: 1
- Keyway notch: No
- Condition: New
- Country of origin: Japan
In the box
One VVT sprocket. Mounting hardware is not included, so plan on a new bolt, because the old one may not be reusable.
Interchange: 35-1339
VV5041 · VVTB10154 · ECP1743 · 1302557Y10 · 1302557Y20
Product information is for general reference and may contain errors. See our Disclaimer.
This part cross-references / interchanges with the following part numbers:
VV5041, VVTB10154, ECP1743, 1302557Y10, 1302557Y20, 35-1339, VVT541
Frequently Asked Questions
Does the Standard Ignition VVT541 fit a 1995-1998 Nissan 200SX 4-cylinder 1.6L?
Yes. The Standard Ignition VVT541 VVT sprocket is listed for the 1995-1998 Nissan 200SX 4-cylinder 1.6L, and the 1991-1993 Nissan NX 4-cylinder 1.6L takes it too.
Does the Standard Ignition VVT541 come with a mounting bolt?
No. Mounting hardware is not included; the Standard Ignition VVT541 is one VVT sprocket, so plan on a new bolt, since the old one may not be reusable.
How many teeth does this VVT sprocket have, and how big is it?
It has 25 teeth, a 78.74 mm (3.1 in) outside diameter and a 45.72 mm (1.8 in) inside diameter. It is 5.08 mm (0.2 in) thick.
Are chipped teeth a reason to replace a VVT sprocket?
Yes. Chipped, cracked or worn teeth, seen with the engine off and cool, mean the sprocket needs replacing. A shop can test the timing system for anything that needs the engine running.
Does the Standard Ignition VVT541 replace ECP1743?
Yes. ECP1743 is one of the numbers this sprocket replaces, along with 35-1339 and VV5041.
