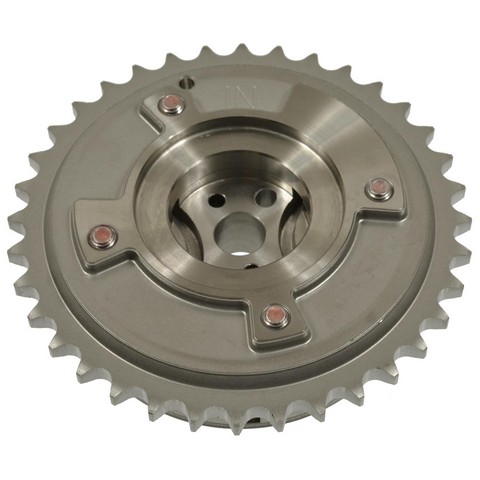

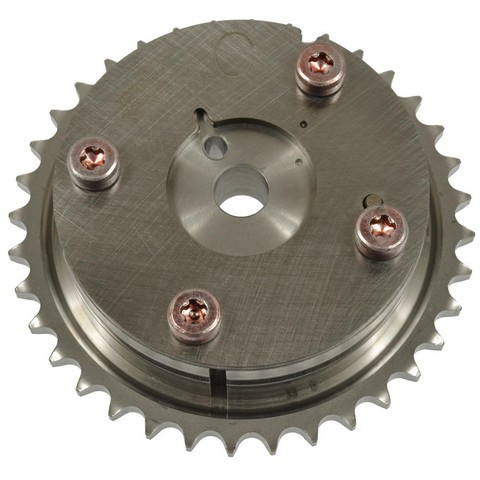

Standard Ignition VVT574 VVT sprocket for the 2012-2017 Toyota Camry 4-cylinder 2.5L and other vehicles is the intake sprocket that sets variable valve timing for the engine.
- Designed to lower leakage and lash, which leads to noise-free operation
- 36 teeth with tooth profiles made for quiet operation
- Precision-machined for accurate variable valve timing
- 100% end-of-line testing on every sprocket
- Metal body with a keyway notch and 3 timing marks
Quick facts
- Part: Standard Ignition VVT574 VVT sprocket
- Also called: engine variable valve timing vvt sprocket
- Fits: 2012-2017 Toyota Camry 4-cylinder 2.5L and other vehicles
- Position: Intake
- Material: Metal
- Condition: New
A rough idle, noise from the timing area or a warning light can mean the sprocket is worn, though the VVT solenoid or a camshaft position sensor can be behind the same signs, so find the cause before replacing anything.
Fits
A wide range of Toyota and Scion models take this direct-fit OE replacement, led by the 2012-2017 Toyota Camry 4-cylinder 2.5L, the 2012-2016 Toyota RAV4 4-cylinder 2.5L and the 2012-2019 Toyota Highlander 4-cylinder 2.7L. Each engine takes one sprocket. If your car is not named here, open the "Vehicles it fits" section to check your exact model and engine.
Specifications
Fit and size
- Position: Intake
- Quantity per vehicle: 1
- Outside diameter: 112.014 mm (4.41 in)
- Inside diameter: 33.782 mm (1.33 in)
- Lug hole diameter: 12.192 mm (0.48 in)
- Thickness: 5.334 mm (0.21 in)
- Tooth width: 5.334 mm (0.21 in)
- Number of teeth: 36
- Mounting hole quantity: 1
Build and materials
- Material: Metal
- Keyway notch: Yes
- Number of timing marks: 3
- Condition: New
- Country of origin: China
In the box
One VVT sprocket. The installation bolt and other hardware are not included, so plan on a new bolt.
Product information is for general reference and may contain errors. See our Disclaimer.
Frequently Asked Questions
Does the Standard Ignition VVT574 fit a 2012-2016 Toyota RAV4 4-cylinder 2.5L?
Yes. Standard Ignition VVT574 is listed for the 2012-2016 Toyota RAV4 4-cylinder 2.5L. Open the "Vehicles it fits" section to check other models and engines.
Does this engine variable valve timing VVT sprocket come with a bolt?
No. Standard Ignition VVT574 is one sprocket without the installation bolt or other hardware, so plan on a new bolt.
What are the diameter and tooth count of this intake VVT sprocket?
It has 36 teeth, a 112.014 mm (4.41 in) outside diameter and a 33.782 mm (1.33 in) inside diameter.
What noises or idle problems can come from a worn intake VVT sprocket?
A worn sprocket can show up as a rough idle or noise from the timing drive, and a warning light can come with them. A shop can test variable valve timing; it is not a driveway check.
Does Standard Ignition test the VVT574 sprocket?
Yes. Every Standard Ignition VVT574 sprocket goes through 100% end-of-line testing.
