VVT Sprocket for 2006-2010 Hyundai Sonata & More - Standard Ignition VVT569

$267.99

Vehicles this part fits

    Part number: VVT569
    UPC: 033086120515
    Condition: New
    Weight: 1.60 LBS
    Item Package Quantity: 1
    $267.99
    Adding to cart… The item has been added

    Have questions?

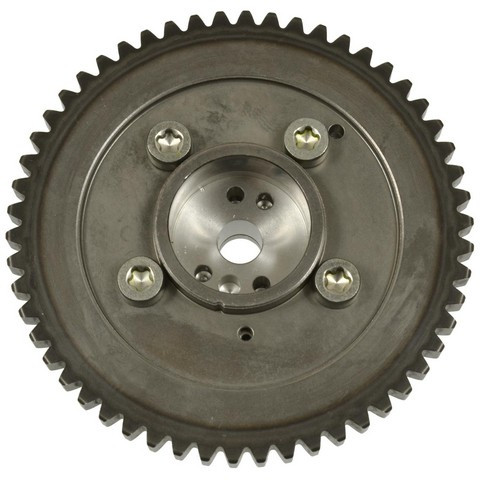

    Standard Ignition Engine Variable Valve Timing (VVT) Sprocket P/N:VVT569
    Standard Ignition Engine Variable Valve Timing (VVT) Sprocket P/N:VVT569
    $267.99
    $267.99

    Standard Ignition VVT569 VVT sprocket for the 2006-2010 Hyundai Sonata 4-cylinder 2.4L and other vehicles is the intake-side sprocket that lets the engine adjust valve timing.

    • Designed to lower leakage and lash for noise-free operation
    • 54-tooth sprocket with a tooth profile shaped for quiet operation
    • Precision-machined for accurate variable valve timing
    • Every sprocket goes through 100% end-of-line testing

    Quick facts

    • Part: Standard Ignition VVT569 VVT sprocket
    • Also called: engine variable valve timing vvt sprocket
    • Fits: 2006-2010 Hyundai Sonata 4-cylinder 2.4L and other vehicles
    • Position: Intake
    • Material: Metal
    • Condition: New

    A rough idle, a rattle from the front of the engine or a cam timing fault code can mean the sprocket is worn. A worn timing chain can also rattle or set timing codes, so these signs alone do not prove the sprocket is the problem.

    Fits

    This intake VVT sprocket is a direct-fit replacement for the 2006-2010 Hyundai Sonata 4-cylinder 2.4L, the 2011 Kia Sorento 4-cylinder 2.4L, and the 2010-2013 Hyundai Tucson 4-cylinder 2.4L and 2011-2013 Tucson 4-cylinder 2.0L. The 2006-2010 Hyundai Sonata 4-cylinder 2.4L takes one sprocket, and this listing is a single unit. If your car is not named here, open the "Vehicles it fits" section to check your exact model and engine.

    Specifications

    Fit and size

    • Position: Intake
    • Quantity per vehicle: 1
    • Outside diameter: 106.934 mm (4.21 in)
    • Inside diameter: 31.496 mm (1.24 in)
    • Lug hole diameter: 10.414 mm (0.41 in)
    • Thickness: 8.128 mm (0.32 in)
    • Tooth width: 8.128 mm (0.32 in)
    • Number of teeth: 54
    • Mounting hole quantity: 1
    • Number of timing marks: 5

    Build and materials

    • Material: Metal
    • Condition: New
    • Country of origin: China

    In the box

    One VVT sprocket. Mounting hardware is not included, so plan on new bolts.

    Product information is for general reference and may contain errors. See our Disclaimer.

    Frequently Asked Questions

    Does the Standard Ignition VVT569 fit the 2006-2010 Hyundai Sonata 4-cylinder 2.4L?

    Yes, Standard Ignition VVT569 is a direct-fit replacement for the 2006-2010 Hyundai Sonata 4-cylinder 2.4L. For other models, open the "Vehicles it fits" section and check your exact engine.

    Does the Standard Ignition VVT569 come with an installation bolt?

    No. Standard Ignition VVT569 is the sprocket alone and hardware is not included, so plan on new bolts.

    How many teeth does the VVT569 sprocket have, and how big is it?

    The sprocket has 54 teeth, a 106.934 mm outside diameter, a 31.496 mm inside diameter and an 8.128 mm tooth width.

    Can a rough idle point to a worn VVT sprocket?

    Yes, it can be one sign, along with a rattle from the front of the engine or a cam timing fault code. A shop can test cam timing with a scan tool.

    Is this Standard Ignition engine variable valve timing VVT sprocket an intake-side part?

    Yes. Standard Ignition VVT569 is for the intake position and has 54 teeth, one mounting hole and 5 timing marks.
