VVT Sprocket for 2006-2007 Ford Fusion & More - Standard Ignition VVT702

$152.99

Vehicles this part fits

    Part number: VVT702
    UPC: 033086437415
    Condition: New
    Weight: 2.20 LBS
    Item Package Quantity: 1
    $152.99
    Adding to cart… The item has been added

    Have questions?

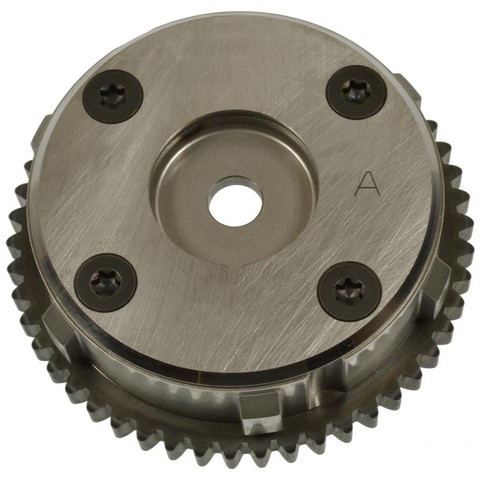

    Standard Ignition Engine Variable Valve Timing (VVT) Sprocket P/N:VVT702
    Standard Ignition Engine Variable Valve Timing (VVT) Sprocket P/N:VVT702
    $152.99
    $152.99

    Standard Ignition VVT702 VVT sprocket for the 2006-2007 Ford Fusion 4-cylinder 2.3L and other vehicles helps set the intake variable valve timing. Also called an engine variable valve timing vvt sprocket, it is a direct-fit OE replacement that undergoes 100% end-of-line testing to meet or exceed OE performance.

    • Designed to lower leakage and lash for noise-free operation
    • Sprocket tooth profiles shaped for quiet operation
    • Precision-machined for accurate variable valve timing
    • 54-tooth sprocket with a keyway notch and one timing mark

    Quick facts

    • Part: Standard Ignition VVT702 VVT sprocket
    • Also called: engine variable valve timing vvt sprocket
    • Fits: 2006-2007 Ford Fusion 4-cylinder 2.3L and other vehicles
    • Position: Intake
    • Material: Metal
    • Condition: New

    A rough idle, a rattle or ticking at the engine, or a check engine light can mean this sprocket is worn, though the VVT solenoid or the camshaft position sensor can be behind the same signs, so find the cause before you replace it.

    Fits

    It fits the 2006-2007 Ford Fusion 4-cylinder 2.3L and the 2006-2007 Mercury Milan 4-cylinder 2.3L, and each takes one.

    Specifications

    Fit and size

    • Position: Intake
    • Quantity per vehicle: 1
    • Outside diameter: 98.552 mm (3.88 in)
    • Inside diameter: 33.782 mm (1.33 in)
    • Thickness: 8.128 mm (0.32 in)
    • Number of teeth: 54
    • Mounting hole quantity: 1; lug hole diameter: 10.668 mm (0.42 in)

    Build and materials

    • Material: Metal
    • Construction: one row, one timing mark, keyway notch
    • Adjustable: No
    • Condition: New
    • Country of origin: China

    In the box

    One VVT sprocket. A bolt, washer and other hardware are not included, so plan on new fasteners rather than reusing the old ones.

    Product information is for general reference and may contain errors. See our Disclaimer.

    Frequently Asked Questions

    Is the Standard Ignition VVT702 sprocket right for a 2006-2007 Ford Fusion 4-cylinder 2.3L?

    Yes. Standard Ignition VVT702 fits the 2006-2007 Ford Fusion 4-cylinder 2.3L and the 2006-2007 Mercury Milan 4-cylinder 2.3L, and each takes one.

    How many teeth does the VVT702 sprocket have?

    The Standard Ignition VVT702 has 54 teeth in one row, with a 98.552 mm (3.88 in) outside diameter and a 33.782 mm (1.33 in) inside diameter.

    Does this VVT sprocket come with a bolt or washer?

    No. This listing is one metal VVT sprocket; the bolt, washer and other hardware are not included.

    How can I tell if this intake VVT sprocket is worn?

    A rough idle, a rattle or ticking at the engine, or a check engine light can mean the sprocket is worn. A shop can test the VVT system to confirm.

    Is the VVT702 sprocket adjustable?

    No. This sprocket is not adjustable; it has one mounting hole, a keyway notch and one timing mark.
