VVT Sprocket for 2007-2009 Honda CR-V - Standard Ignition VVT640

$252.99

Vehicles this part fits

    Part number: VVT640
    UPC: 033086346557
    Condition: New
    Weight: 1.79 LBS
    Item Package Quantity: 1
    $252.99
    Adding to cart… The item has been added

    Have questions?

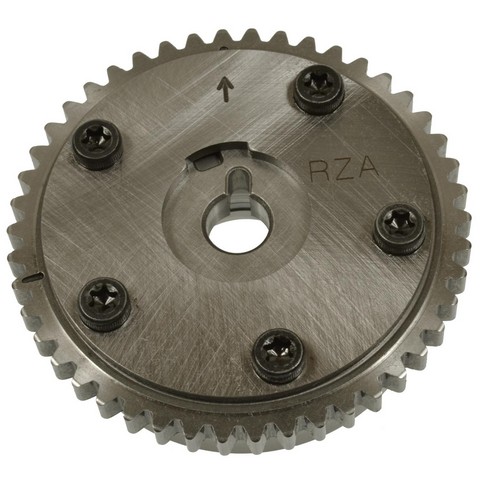

    Standard Ignition Engine Variable Valve Timing (VVT) Sprocket P/N:VVT640
    Standard Ignition Engine Variable Valve Timing (VVT) Sprocket P/N:VVT640
    $252.99
    $252.99

    Standard Ignition VVT640 VVT sprocket for the 2007-2009 Honda CR-V 4-cylinder 2.4L is the intake-side sprocket that lets the variable valve timing system set valve timing. Also called an engine variable valve timing VVT sprocket, it is precision-machined for accurate timing.

    • Designed to help restore engine horsepower and torque curves while reducing emissions
    • Designed to lower leakage and lash for noise-free operation
    • 46-tooth sprocket with tooth profiles shaped for quiet operation
    • Precision-machined for accurate variable valve timing
    • 100% end-of-line testing on every unit

    Quick facts

    • Part: Standard Ignition VVT640 VVT sprocket
    • Also called: engine variable valve timing VVT sprocket
    • Fits: the 2007-2009 Honda CR-V 4-cylinder 2.4L
    • Position: Intake
    • Material: Metal
    • Condition: New

    A worn sprocket can show up as rough idle, noise from the timing area or poor drivability. Before you replace it, rule out a faulty VVT solenoid or a wiring problem that could mimic those signs. This listing is one sprocket, and the engine takes one on the intake side.

    Fits

    This sprocket is a direct-fit replacement for the 2007-2009 Honda CR-V 4-cylinder 2.4L (L4-2.4L).

    Specifications

    Fit and size

    • Position: Intake
    • Quantity per vehicle: 1
    • Outside diameter: 90.932 mm (3.58 in)
    • Inside diameter: 28.702 mm (1.13 in)
    • Lug hole diameter: 12.192 mm (0.48 in)
    • Mounting holes: 1
    • Thickness: 7.366 mm (0.29 in)
    • Number of teeth: 46
    • Tooth width: 7.366 mm (0.29 in)

    Build and materials

    • Material: Metal
    • Number of rows: 1
    • Timing marks: 3
    • Keyway notch: Yes
    • Condition: New
    • Country of origin: China

    In the box

    One VVT sprocket. Hardware is not included, so plan on new bolts, since the old ones may not be reusable.

    Product information is for general reference and may contain errors. See our Disclaimer.

    Frequently Asked Questions

    Does the Standard Ignition VVT640 fit the 2007-2009 Honda CR-V 4-cylinder 2.4L?

    Yes. Standard Ignition VVT640 is an intake VVT sprocket listed for the 2007-2009 Honda CR-V 4-cylinder 2.4L (L4-2.4L), and the engine takes one.

    Do bolts come with this VVT sprocket?

    No. Hardware is not included, and this listing is one VVT sprocket. Plan on new bolts, since the old ones may not be reusable.

    How many teeth does the VVT640 sprocket have?

    Standard Ignition VVT640 has 46 teeth, with a 90.932 mm (3.58 in) outside diameter and a 28.702 mm (1.13 in) inside diameter.

    What problems can a worn VVT sprocket cause?

    Rough idle, noise from the timing area or reduced drivability can come from a worn VVT sprocket. A shop can test the VVT system to find the cause.

    Is every Standard Ignition VVT640 sprocket tested?

    Yes. Every Standard Ignition VVT640 goes through 100% end-of-line testing, and the tooth profiles are shaped for quiet operation.
