VVT Sprocket for 2019 Jeep Wrangler & More - Standard Ignition VVT712

$200.99

Vehicles this part fits

    Part number: VVT712
    UPC: 033086501673
    Condition: New
    Weight: 2.43 LBS
    Item Package Quantity: 1
    $200.99
    Adding to cart… The item has been added

    Have questions?

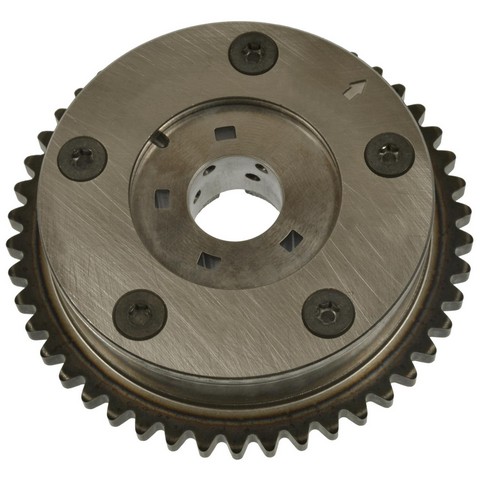

    Standard Ignition Engine Variable Valve Timing (VVT) Sprocket P/N:VVT712
    Standard Ignition Engine Variable Valve Timing (VVT) Sprocket P/N:VVT712
    $200.99
    $200.99

    Standard Ignition VVT712 VVT sprocket for the 2019 Jeep Wrangler 4-cylinder 2.0L and other vehicles is the intake-side sprocket that helps the engine adjust its valve timing.

    • Precision-machined to help keep variable valve timing accurate
    • Designed to lower leakage and lash, which supports noise-free operation
    • 50-tooth sprocket with a tooth profile shaped for quiet operation
    • Every sprocket goes through 100% end-of-line testing

    Quick facts

    • Part: Standard Ignition VVT712 VVT sprocket
    • Also called: engine variable valve timing vvt sprocket
    • Fits: 2019 Jeep Wrangler 4-cylinder 2.0L and other vehicles
    • Position: Intake
    • Material: Metal
    • Condition: New

    A rough idle, a ticking or rattling noise from the timing area or a warning light can mean the sprocket is worn, though the VVT solenoid or the timing chain can be behind them too. If a worn sprocket is the cause, this one replaces it.

    Fits

    This VVT sprocket is a direct-fit replacement for the 2019 Jeep Wrangler 4-cylinder 2.0L and the 2019 Jeep Cherokee 4-cylinder 2.0L, and a single sprocket goes on either engine.

    Specifications

    Fit and size

    • Position: Intake
    • Quantity per vehicle: 1
    • Outside diameter: 113.538 mm (4.47 in)
    • Inside diameter: 48.768 mm (1.92 in)
    • Lug hole diameter: 21.844 mm (0.86 in)
    • Thickness: 6.096 mm (0.24 in)
    • Number of teeth: 50
    • Mounting hole quantity: 1
    • Number of timing marks: 4

    Build and materials

    • Material: Metal
    • Condition: New
    • Adjustable: No
    • Number of rows: 1
    • Country of origin: United States

    In the box

    One VVT sprocket. Hardware and a washer are not included, so plan on new bolts rather than reusing the old ones.

    Interchange: 35-1513
    VV5217 · 5048153AA · 5048153AB · 5048153AC · VVTB10275 · ECP1914

    Product information is for general reference and may contain errors. See our Disclaimer.

    This part cross-references / interchanges with the following part numbers:

    VV5217, 5048153AA, 5048153AB, 5048153AC, VVTB10275, ECP1914, 35-1513

    Frequently Asked Questions

    Will the Standard Ignition VVT712 fit a 2019 Jeep Cherokee 4-cylinder 2.0L?

    Yes. The Standard Ignition VVT712 VVT sprocket fits the 2019 Jeep Cherokee 4-cylinder 2.0L and the 2019 Jeep Wrangler 4-cylinder 2.0L, one per engine.

    Does this engine variable valve timing vvt sprocket come with bolts?

    No. Hardware and a washer are not included, so plan on new bolts with this Standard Ignition VVT712 sprocket.

    How many teeth and what outside diameter does the VVT712 sprocket have?

    The Standard Ignition VVT712 has 50 teeth and an outside diameter of 113.538 mm (4.47 in). Its inside diameter is 48.768 mm (1.92 in).

    Is every VVT712 sprocket tested before it is sold?

    Yes. Every sprocket goes through 100% end-of-line testing, and it is precision-machined to support accurate variable valve timing.

    Does the VVT712 replace the 5048153AB sprocket number?

    Yes. 5048153AB is one of the numbers the Standard Ignition VVT712 sprocket replaces.
