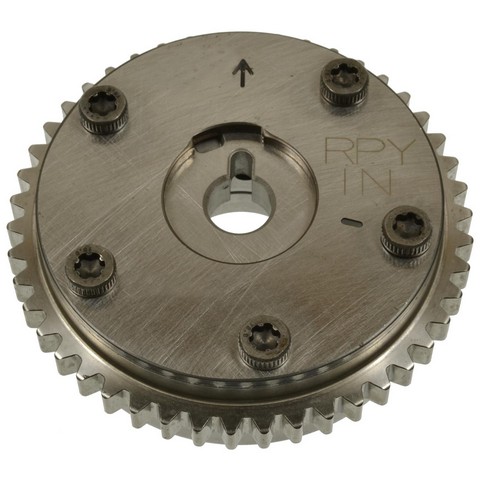

Standard Ignition VVT595 VVT sprocket for the 2018-2024 Honda Civic 4-cylinder 2.0L and other vehicles sets the variable valve timing for the intake side of the engine. The catalog also lists it as an engine variable valve timing VVT sprocket.
- Designed to lower leakage and lash for noise-free operation
- 46 teeth with a tooth profile shaped for quiet operation
- Precision-machined for accurate variable valve timing
- 100% end-of-line testing on every unit
Quick facts
- Part: Standard Ignition VVT595 VVT sprocket
- Also called: engine variable valve timing VVT sprocket
- Fits: 2018-2024 Honda Civic 4-cylinder 2.0L and other vehicles
- Position: Intake
- Material: Metal
- Condition: New
A worn or failing VVT sprocket can show up as a rough idle, noise from the timing area or poor drivability. Before you replace it, rule out other causes of those signs, such as low or dirty oil or a problem elsewhere in the timing drive.
Fits
This sprocket is a direct-fit OE replacement for vehicles that include the 2018-2024 Honda Civic 4-cylinder 2.0L, the 2018-2022 Honda Accord 4-cylinder 2.0L and the 2019-2022 Acura RDX 4-cylinder 2.0L.
Specifications
Fit and size
- Position: Intake
- Quantity per vehicle: 1
- Outside diameter: 90.932 mm (3.58 in)
- Inside diameter: 28.702 mm (1.13 in)
- Lug hole diameter: 12.192 mm (0.48 in)
- Thickness: 7.366 mm (0.29 in)
- Number of teeth: 46
- Mounting hole quantity: 1
- Number of timing marks: 5
Build and materials
- Material: Metal
- Keyway notch: Yes
- Adjustable: No
- Number of rows: 1
- Condition: New
- Country of origin: United States
In the box
One VVT sprocket, which is the quantity the engine calls for. Hardware is not included, so plan on new fasteners rather than reusing the old ones.
Interchange: 35-1393
VV5100 · VVTB10195 · ECP1797 · 14310RPYG01
Product information is for general reference and may contain errors. See our Disclaimer.
This part cross-references / interchanges with the following part numbers:
VV5100, VVTB10195, ECP1797, 14310RPYG01, 35-1393, VVT595
Frequently Asked Questions
Will the Standard Ignition VVT595 fit a 2018-2024 Honda Civic 4-cylinder 2.0L?
Yes, Standard Ignition VVT595 fits the 2018-2024 Honda Civic 4-cylinder 2.0L and the 2018-2022 Honda Accord 4-cylinder 2.0L. If your car is not named here, look it up in the "Vehicles it fits" section.
Does the VVT595 sprocket come with bolts?
No. Standard Ignition VVT595 is a single sprocket sold without hardware, so plan on new fasteners rather than reusing the old ones.
How many teeth and what outside diameter does this VVT sprocket have?
This sprocket has 46 teeth and an outside diameter of 90.932 mm (3.58 in), with a 28.702 mm (1.13 in) inside diameter.
Can a rough idle come from a worn intake VVT sprocket?
Yes, a worn sprocket can be one source of rough idle, a rattle near the timing area or weak drivability. Testing the system takes the engine running, so a shop can do that.
Does the Standard Ignition VVT595 cross-reference to VVTB10195?
Yes. VVTB10195 is listed as an interchange number for Standard Ignition VVT595, along with 35-1393, VV5100, ECP1797 and 14310RPYG01.
