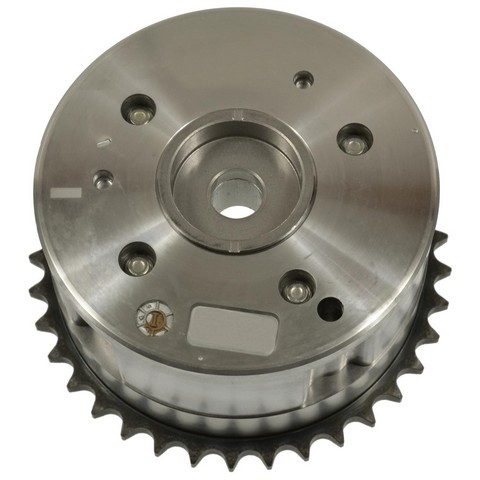

Standard Ignition VVT661 VVT sprocket for the 2012-2016 Kia Soul 4-cylinder 1.6L and other vehicles replaces the intake sprocket in the variable valve timing system. Its tooth profiles match OE for quiet operation.
- Designed to lower leakage and lash, which supports noise-free operation
- Precision-machined for accurate variable valve timing
- 36 teeth in a single row, with three timing marks
- 100% end-of-line testing on every sprocket
Quick facts
- Part: Standard Ignition VVT661 VVT sprocket
- Also called: engine variable valve timing VVT sprocket
- Fits: 2012-2016 Kia Soul 4-cylinder 1.6L and other vehicles
- Position: Intake
- Material: Metal
- Condition: New
A worn VVT sprocket can show up as a rough idle, engine noise or a check engine light. Those signs alone don't prove the sprocket is the problem, since a faulty VVT solenoid can cause them too.
Fits
The 2012-2016 Kia Soul 4-cylinder 1.6L, the 2012-2019 Kia Rio 4-cylinder 1.6L and the 2012-2017 Hyundai Accent 4-cylinder 1.6L are among the vehicles that take this direct-fit OE replacement, one sprocket per engine on the intake side. If your car isn't named here, look for it in the "Vehicles it fits" section of this page.
Specifications
Fit and size
- Position: Intake
- Quantity per application: 1
- Number of teeth: 36
- Outside diameter: 93.218 mm (3.67 in)
- Inside diameter: 31.75 mm (1.25 in)
- Thickness: 4.064 mm (0.16 in)
- Tooth width: 4.064 mm (0.16 in)
- Lug hole diameter: 10.16 mm (0.4 in)
- Mounting hole quantity: 1
Build and materials
- Material: Metal
- Number of rows: 1
- Number of timing marks: 3
- Adjustable: No
- Condition: New
- Country of origin: China
In the box
One VVT sprocket. Hardware is not included, so plan on new bolts; the old ones may not be reusable.
Interchange: 35-1458
VV5166 · VVTB10240 · ECP1863 · 243502B600
Product information is for general reference and may contain errors. See our Disclaimer.
This part cross-references / interchanges with the following part numbers:
VV5166, VVTB10240, ECP1863, 243502B600, 35-1458, VVT661
Frequently Asked Questions
Does the Standard Ignition VVT661 fit a 2012-2019 Kia Rio 4-cylinder 1.6L?
Yes. Standard Ignition VVT661 is listed for the 2012-2019 Kia Rio 4-cylinder 1.6L. Other cars it fits are in the "Vehicles it fits" section of the page.
Do I get mounting hardware with the VVT661 sprocket?
No. This listing is one VVT sprocket with no hardware. Buy new bolts, because the old ones may not be reusable.
How many teeth does the VVT661 sprocket have, and how big is it?
Standard Ignition VVT661 has 36 teeth, a 93.218 mm (3.67 in) outside diameter, a 31.75 mm (1.25 in) inside diameter and a thickness of 4.064 mm (0.16 in).
Is this engine variable valve timing VVT sprocket adjustable?
No. This sprocket is not adjustable and has no keyway notch. It has three timing marks and a single row of teeth.
Can I use VVT661 in place of 243502B600?
Yes. 243502B600 is one of the other numbers Standard Ignition VVT661 replaces, and it is listed on the Interchange line.
