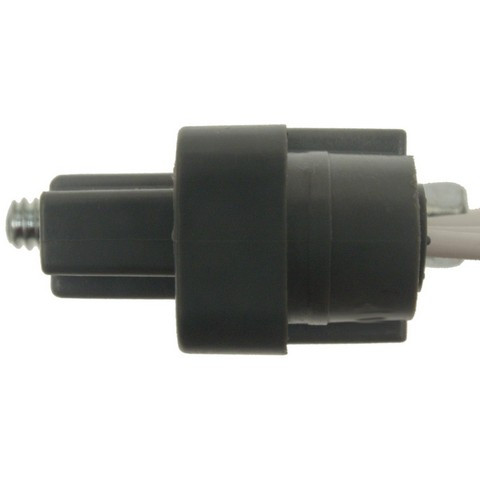

Wiring Harness Connector for 2005-2009 Buick LaCrosse & More - Standard Ignition S-1026

$118.99
WARNING:California Proposition 65▾

Vehicles this part fits

    Part number: S-1026
    UPC: 025623224763
    Condition: New
    Weight: 0.47 LBS
    Item Package Quantity: 1
    $118.99
    Adding to cart… The item has been added

    Have questions?

    Standard Ignition Engine Wiring Harness Connector,Ignition Control Module Connector P/N:S-1026
    Standard Ignition Engine Wiring Harness Connector,Ignition Control Module Connector P/N:S-1026
    $118.99
    $118.99

    Standard Ignition S-1026 wiring harness connector for the 2005-2009 Buick LaCrosse and other vehicles connects the ignition control module to its wiring. Also listed as an engine wiring harness connector, it replaces a damaged connector end on the harness.

    • Weatherproof sealed, weather-resistant connector
    • Plastic connector body with metal contact terminals for conductivity
    • 14 wires of 20 gauge with 14 blade terminals
    • Push-on attachment on a rectangular connector body
    • Designed to correct the failure problems of the original connector

    Quick facts

    • Part: Standard Ignition S-1026 wiring harness connector
    • Also called: engine wiring harness connector
    • Fits: 2005-2009 Buick LaCrosse and other vehicles
    • Material: Plastic
    • Condition: New

    A cracked or melted body, corroded terminals or a plug that fits loosely are common signs of a worn connector. These signs alone do not prove this part is the problem; a faulty ignition control module can look the same.

    Fits

    The 2005-2009 Buick LaCrosse, the 2000-2005 Chevrolet Impala and the 1995-2002 Chevrolet Camaro are among the Buick, Chevrolet, Oldsmobile and Pontiac vehicles this connector fits, and a single connector goes on each. If your car is not one of those, look up its year and model in the "Vehicles it fits" section.

    Specifications

    Fit and size

    • Quantity per vehicle: 1
    • Connector shape: Rectangle
    • Connector length: 1.5 in
    • Harness length: 17 in (431.8 mm)
    • Number of wires: 14, wire gauge 20
    • Terminals: 14 female blade
    • Attachment method: Push on

    Build and materials

    • Connector material: Plastic
    • Contact terminal material: Metal
    • Weatherproof sealed and weather resistant
    • Wiring harness: included, with 14 butt splices
    • Condition: New
    • Country of origin: Taiwan

    In the box

    One wiring harness connector with its harness lead and 14 butt splices. A dust shield is not included.

    Installation notes

    • Comes factory-assembled, so no specialized tools are needed.
    • Extended lead wires are supplied where applicable.

    Interchange: PT5903 · 966 · EC494 · 12117262 · 12167123 · 15305858

    Product information is for general reference and may contain errors. See our Disclaimer.

    This part cross-references / interchanges with the following part numbers:

    PT5903, 966, EC494, 12117262, 12167123, 15305858

    Frequently Asked Questions

    Will Standard Ignition S-1026 fit a 2005-2009 Buick LaCrosse?

    Yes. Standard Ignition S-1026 fits the 2005-2009 Buick LaCrosse, and one connector is needed per vehicle. If your car is a different one, look it up in the "Vehicles it fits" section.

    Does the S-1026 connector come with wire splices?

    Yes. This connector includes 14 butt splices and a 17-inch (431.8 mm) harness lead. A dust shield is not included.

    How many wires and what gauge does this wiring harness connector have?

    Standard Ignition S-1026 has 14 wires of 20 gauge and 14 female blade terminals, and it attaches with a push-on fit.

    Is this connector weatherproof?

    Yes. This connector is weatherproof sealed and weather resistant, with a plastic body and metal contact terminals.

    Do I need special tools to install this connector?

    No. The connector comes factory-assembled with wire connectors, so no specialized tools are needed.
