Ignition Coil for 2000-2006 Honda Insight - Standard UF-257

$103.99

Vehicles this part fits

    Part number: UF-257
    UPC: 091769483555
    Condition: New
    Weight: 0.41 LBS
    Item Package Quantity: 1
    $103.99
    Adding to cart… The item has been added

    Have questions?

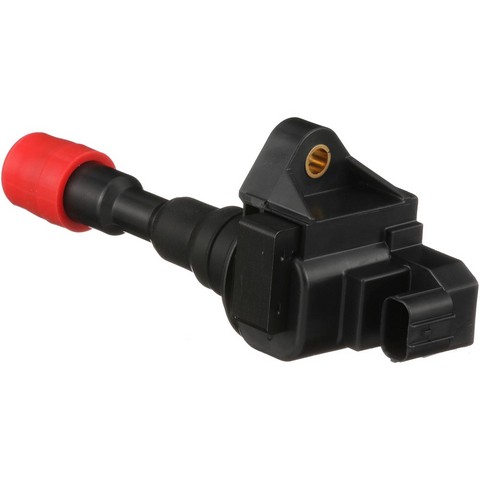

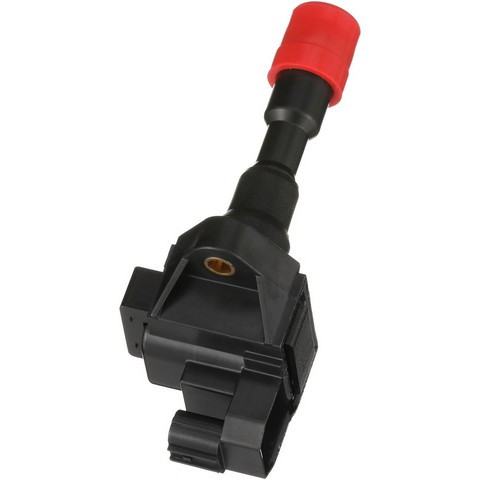

    Standard Ignition Ignition Coil P/N:UF-257
    Standard Ignition Ignition Coil P/N:UF-257
    $103.99
    $103.99

    Standard Ignition UF-257 ignition coil for the 2000-2006 Honda Insight 3-cylinder 1.0L turns battery voltage into the high-voltage spark that fires the plug. This Standard Ignition coil sits directly on the spark plug in a distributorless ignition system.

    • Bobbin technology, a silicone magnetic steel core and an optimized winding for accurate high-energy output
    • Tested for spark energy output, impedance and durability in all operating conditions
    • High-dielectric epoxy injected into the case and pulled into vacuum to remove air pockets and block moisture intrusion and internal energy loss
    • High-temp boot prevents high-voltage leaks; stainless-steel spring with internal ferrite noise suppressor prevents radiofrequency interference (RFI)
    • 100% pure copper windings in the primary and secondary bobbins for resistance to internal shorts and dielectric breakdown

    Quick facts

    • Part: Standard Ignition UF-257 ignition coil
    • Fits: 2000-2006 Honda Insight 3-cylinder 1.0L
    • Condition: New

    A misfire, rough idle or hard starting can mean a coil is failing. Before you replace this coil, rule out worn spark plugs and a damaged connector or wiring, since either can produce a misfire too. If the coil is the cause, this one replaces it.

    Fits

    Engineered specifically for Honda vehicles, this coil is a direct-fit replacement for the 2000-2006 Honda Insight 3-cylinder 1.0L.

    Specifications

    Fit and size

    • Quantity per vehicle: 3
    • Voltage: 12 V
    • Terminals: 3 male blade terminals
    • Connector: 1 female
    • Mount type: bolt on

    Build and materials

    • Design: coil on plug
    • Ignition type: distributorless
    • Condition: New
    • Country of origin: China

    In the box

    One ignition coil with its mounting bracket. This listing holds one coil, and the 2000-2006 Honda Insight 3-cylinder 1.0L takes three. Mounting hardware is not included, so plan on new bolts.

    Product information is for general reference and may contain errors. See our Disclaimer.

    Frequently Asked Questions

    Does the Standard Ignition UF-257 fit the 2000-2006 Honda Insight 3-cylinder 1.0L?

    Yes. Standard Ignition UF-257 is listed for the 2000-2006 Honda Insight 3-cylinder 1.0L, which takes three coils.

    Does this ignition coil come with its mounting bracket and bolts?

    Standard Ignition UF-257 includes the mounting bracket, but not the mounting hardware, so buy new bolts to secure it.

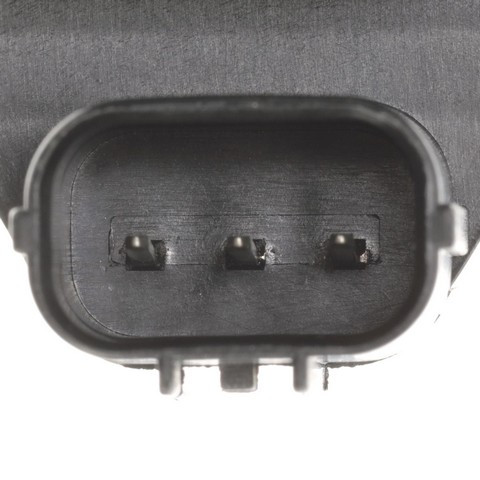

    What connector and terminals does the UF-257 coil use?

    This ignition coil has one female connector and three male blade terminals, and it is a 12 V part.

    Can a misfire or rough idle mean a coil-on-plug coil is failing?

    Yes. A misfire, rough idle or hard starting can be signs of a failing coil, and a shop can test the coil to confirm.

    How is the UF-257 sealed against moisture and voltage leaks?

    High-dielectric epoxy is injected into the case and pulled into vacuum to remove air pockets and keep moisture out. A high-temp boot prevents high-voltage leaks.
