Standard Ignition Ignition Lock Cylinder and Switch,Ignition Lock Cylinder,Ignition Switch P/N:US-176
Standard Motor Products

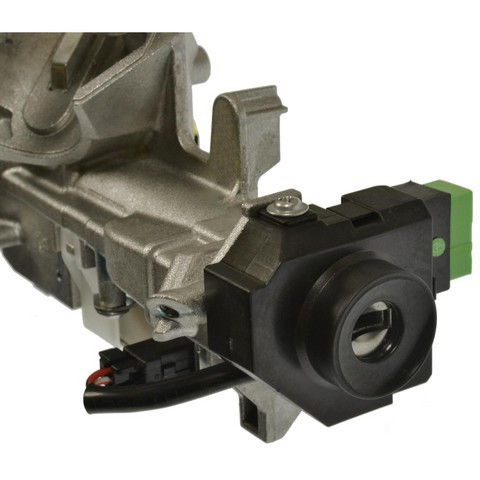

Standard Ignition US-1114 ignition lock and cylinder switch for the 2008 Honda Pilot replaces the Pilot switch and lock cylinder in one unit. The cylinder takes the key, and the switch behind it passes the signal that starts the vehicle.
A key that turns stiffly, sticks or will not come out, or an engine that starts only on some tries, can mean this ignition lock and cylinder switch is worn, though a weak battery or a faulty starter can be behind the same no-start.
It is a direct-fit OE replacement engineered for the 2008 Honda Pilot.
Fit and size
Build and materials
One ignition lock and cylinder switch with a mounting bracket and two keys. This listing holds one unit, and the 2008 Honda Pilot takes one.
Interchange: CS1477 · KS7475 · 06351S9VC10 · 35100S9VC11 · LA10235
Product information is for general reference and may contain errors. See our Disclaimer.
This part cross-references / interchanges with the following part numbers:
Does the Standard Ignition US-1114 fit the 2008 Honda Pilot?
Yes. Standard Ignition US-1114 is a direct-fit OE replacement for the 2008 Honda Pilot, which takes one.
Does this ignition lock and cylinder switch come with keys?
Yes. It includes two coded keys and a mounting bracket along with the lock cylinder and switch. No instruction sheet is included.
What are the keys and tumblers made of on the US-1114?
Standard Ignition US-1114 has solid brass tumblers, chrome plated brass keys and die-cast zinc lock cores.
My key sticks in the ignition. Could the lock cylinder be worn?
A key that sticks, turns stiffly or won't come out can mean the lock cylinder is worn. A shop can test the switch side if the car won't start.

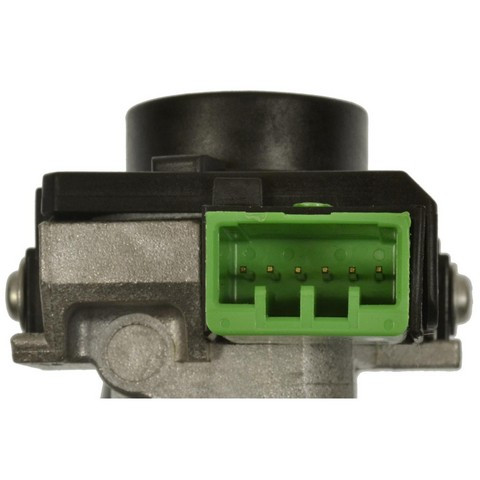

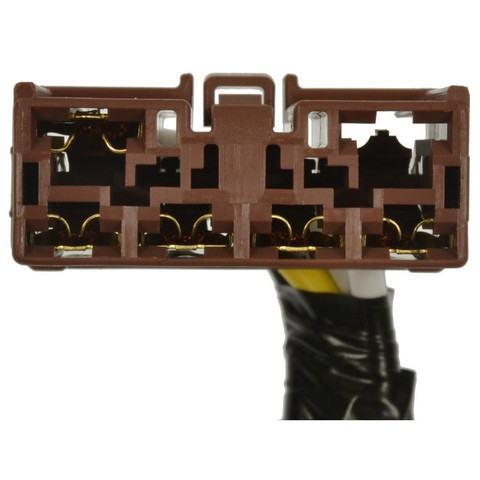

How many terminals does the US-1114 connector have?
The Standard Ignition US-1114 has one connector with 6 pin terminals and a 3-position switch.
