Ignition Lock and Cylinder Switch for 2000-2003 Subaru Outback & More - Standard Ignition US-366

$183.99

Vehicles this part fits

    Part number: US-366
    UPC: 091769533199
    Condition: New
    Weight: 2.00 LBS
    Item Package Quantity: 1
    $183.99
    Adding to cart… The item has been added

    Have questions?

    Standard Ignition Ignition Lock Cylinder and Switch P/N:US-366
    Standard Ignition Ignition Lock Cylinder and Switch P/N:US-366
    $183.99
    $183.99

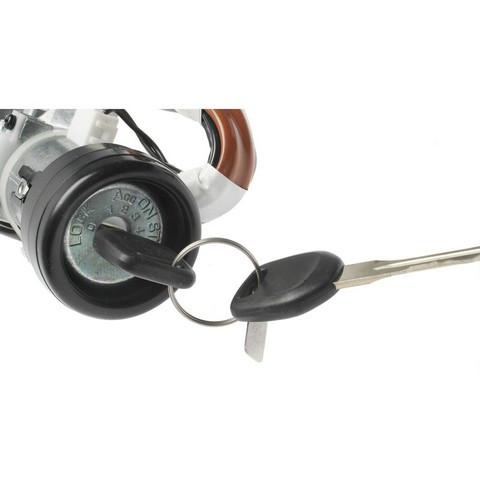

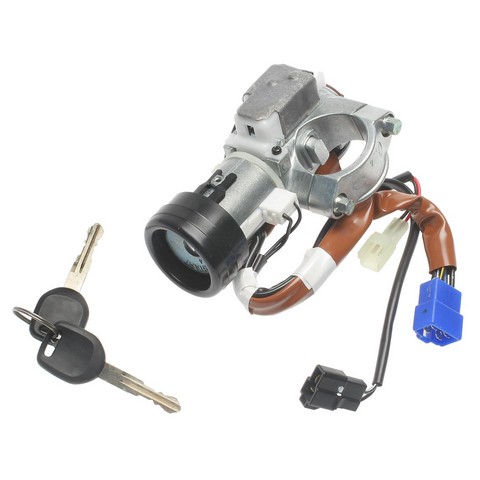

    Standard Ignition US-366 ignition lock and cylinder switch for the 2000-2003 Subaru Outback and other vehicles pairs a keyed lock cylinder with the ignition switch on the steering column. The key turns the cylinder, and the switch passes that motion on to the ignition circuit.

    • Copper alloy conductors for good electrical conductivity with low resistive losses
    • Each unit is 100% tested for mechanical and electrical switching performance

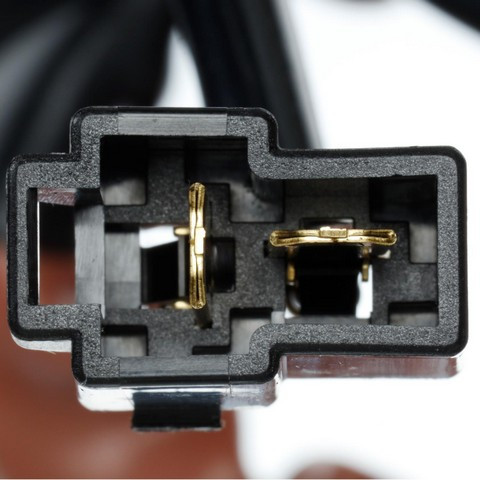

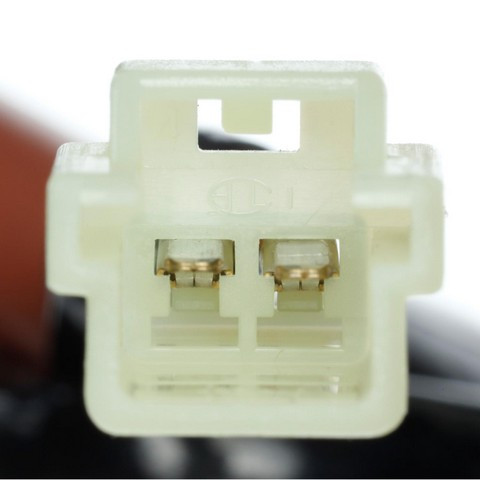

    • Three female connectors and eight male blade terminals
    • Coded lock cylinder supplied with 2 keys

    Quick facts

    • Part: Standard Ignition US-366 ignition lock and cylinder switch
    • Fits: 2000-2003 Subaru Outback and other vehicles
    • Condition: New

    A key that sticks, a lock that turns loosely or an engine that will not crank can mean this switch or lock cylinder is worn, though a weak battery or a failing starter can be behind a no-crank as well.

    Fits

    It fits the 2000-2003 Subaru Outback and the 2000-2003 Subaru Legacy.

    Specifications

    Fit and size

    • Mounting location: column
    • Quantity per vehicle: 1
    • Connectors: 3, female
    • Terminals: 8, male blade
    • Keys: 2

    Build and materials

    • Coding: coded
    • Finish: aluminum
    • Condition: new
    • Country of origin: Taiwan

    In the box

    This listing holds one ignition lock and cylinder switch, and each vehicle takes one. It comes with 2 keys and a mounting bracket. Mounting hardware and instructions are not included, so plan on new fasteners rather than reusing the old ones.

    Interchange: CS678 · LS1081 · KS6299 · LA23601 · 83191AE02A · 83191AE02B

    Product information is for general reference and may contain errors. See our Disclaimer.

    This part cross-references / interchanges with the following part numbers:

    CS678, LS1081, KS6299, LA23601, US-366, 83191AE02A, 83191AE02B

    Frequently Asked Questions

    Is this a switch for the 2000-2003 Subaru Legacy?

    Yes. Standard Ignition US-366 fits the 2000-2003 Subaru Legacy, and each car takes one.

    Is this the ignition lock for the 2000-2003 Subaru Outback?

    Yes. Standard Ignition US-366 fits the 2000-2003 Subaru Outback and is a column-mounted ignition lock and cylinder switch.

    Do keys come with this ignition lock and cylinder switch?

    Yes. The assembly includes 2 keys and a mounting bracket. Mounting hardware and instructions are not included.

    How many terminals does this ignition lock and cylinder switch have?

    The switch has 8 male blade terminals and 3 female connectors.

    How can I tell if this ignition lock and cylinder switch is worn?

    A key that is hard to pull out, or dash lights that flicker when the key moves, can be signs of wear. A shop can test the switch electrically.
