Switch for 1996-1997 Honda Civic Del Sol - Standard Ignition US-390

$513.99

Vehicles this part fits

    Part number: US-390
    UPC: 091769549718
    Condition: New
    Weight: 1.22 LBS
    Item Package Quantity: 1
    $513.99
    Adding to cart… The item has been added

    Have questions?

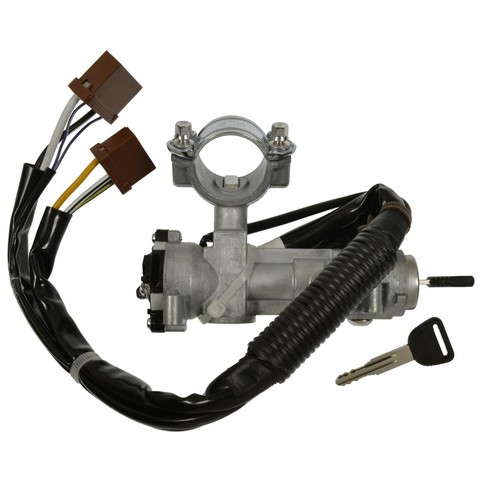

    Standard Ignition Ignition Lock Cylinder and Switch P/N:US-390
    Standard Ignition Ignition Lock Cylinder and Switch P/N:US-390
    $513.99
    $513.99

    Standard Ignition US-390 switch for the 1996-1997 Honda Civic Del Sol combines the ignition lock cylinder and the switch behind it. This Standard Ignition switch is designed to fix the inherent failure issues of the original part.

    • Solid brass tumblers and chrome plated brass keys
    • Die-cast zinc lock cores with multiple, randomly assigned key codes

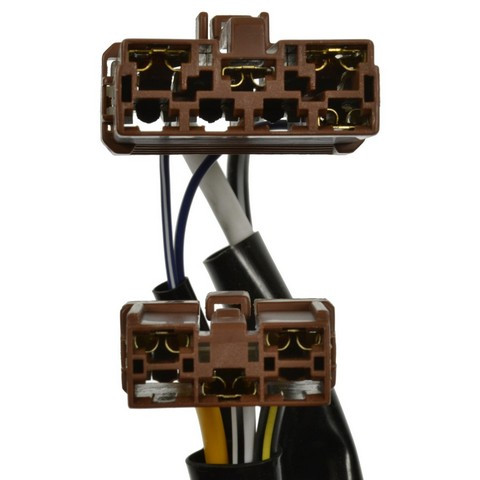

    • Two male connectors with 12 female blade terminals

    Quick facts

    • Part: Standard Ignition US-390 switch
    • Fits: 1996-1997 Honda Civic Del Sol

    A key that sticks, turns stiffly or will not come out, or a car that starts only some of the time, can mean the lock cylinder or switch is worn. Before you replace this switch, rule out a worn key, a weak battery and a loose connector, since each can look like a failing switch.

    Fits

    It is a direct-fit replacement for the 1996-1997 Honda Civic Del Sol, and the lock is matched to the original for precise installation.

    Specifications

    Fit and size

    • Mounting location: dashboard
    • Quantity per vehicle: 1
    • Connectors: 2, male
    • Terminals: 12, female blade

    Build and materials

    • Lock cylinder: coded, with 2 keys
    • Tumblers: solid brass
    • Keys: chrome plated brass
    • Lock cores: die-cast zinc
    • Country of origin: Taiwan

    In the box

    One switch with its lock cylinder and two keys. This listing holds one switch, and the 1996-1997 Honda Civic Del Sol takes one. Mounting hardware is not included, so plan on new fasteners, because the old ones may not be reusable.

    Installation notes

    • A mounting bracket comes with the part.
    • An instruction sheet is included for the installation steps.

    Interchange: CS662 · KS6288 · 35100SR2A01 · LA23441

    Product information is for general reference and may contain errors. See our Disclaimer.

    This part cross-references / interchanges with the following part numbers:

    CS662, KS6288, 35100SR2A01, LA23441, US-390

    Frequently Asked Questions

    Is this Standard Ignition US-390 switch the right one for the 1996-1997 Honda Civic Del Sol?

    Yes. Standard Ignition US-390 is a direct-fit switch for the 1996-1997 Honda Civic Del Sol, and that car takes one.

    Does the US-390 come with keys and a mounting bracket?

    Yes. The Standard Ignition US-390 includes two keys, a mounting bracket and an instruction sheet. Mounting hardware is not included.

    What are the tumblers and keys made of on this switch?

    The tumblers are solid brass and the keys are chrome plated brass. The lock cores are die-cast zinc, with multiple, randomly assigned key codes.

    How do I know if the lock cylinder on this switch is wearing out?

    A key that sticks, turns stiffly or will not come out can be a sign of wear. A shop can test the electrical side of the switch.

    Does Standard Ignition US-390 replace KS6288?

    Yes. KS6288 is an interchange number for this switch, along with CS662, 35100SR2A01 and LA23441.
