Switch for 2003-2006 Suzuki XL-7 & More - Standard Ignition US-817

$318.99

Vehicles this part fits

    Part number: US-817
    UPC: 707390944531
    Condition: New
    Weight: 3.00 LBS
    Item Package Quantity: 1
    $318.99
    Adding to cart… The item has been added

    Have questions?

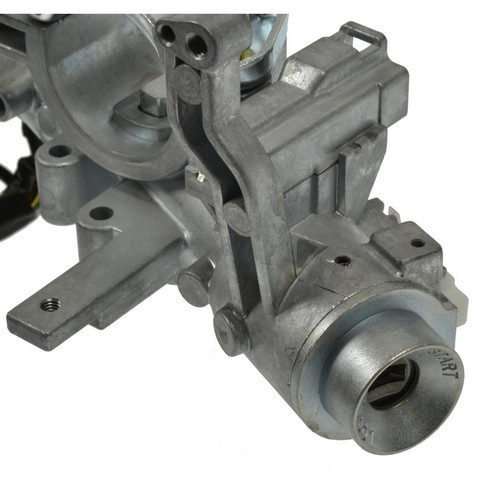

    Standard Ignition Ignition Lock Cylinder and Switch P/N:US-817

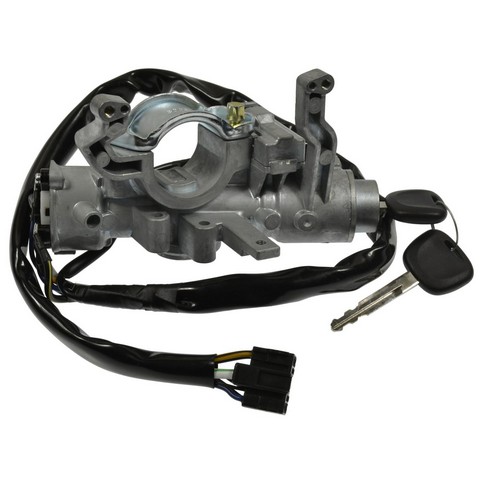

    Standard Ignition Ignition Lock Cylinder and Switch P/N:US-817
    $318.99
    $318.99

    Standard Ignition US-817 switch for the 2003-2006 Suzuki XL-7 and other vehicles switches the ignition circuits when you turn the key. The assembly combines the ignition switch and the lock cylinder in one piece.

    • Copper alloy conductors with low resistive losses
    • 100% tested for mechanical and electrical switching performance
    • Coded lock cylinder supplied with two keys
    • Mounting bracket included for the column mounting location

    Quick facts

    • Part: Standard Ignition US-817 switch
    • Fits: 2003-2006 Suzuki XL-7 and other vehicles

    Dash power that cuts out, or a car that does not crank when you turn the key, can mean this switch is worn. A weak battery or a failing starter can also be the source of those problems, so rule those two out before replacing the switch.

    Fits

    It fits the 2003-2006 Suzuki XL-7 and works as a switch for the 2004-2005 Suzuki Grand Vitara and the 2004 Suzuki Vitara. The 2003-2006 Suzuki XL-7 takes one, and this listing is a single switch.

    Specifications

    Fit and size

    • Mounting location: Column
    • Quantity per vehicle: 1
    • Connector: 1 rectangular, male
    • Terminals: 7 female blade terminals

    Build and materials

    • Construction: ignition switch and lock cylinder assembly
    • Coding: Coded
    • Key programmable: No
    • Country of origin: Taiwan

    In the box

    One ignition switch and lock cylinder assembly with two keys and a mounting bracket. Mounting hardware and instructions are not included, and the old fasteners may not be reusable, so plan on new ones.

    Interchange: CS1177 · KS7177 · LA2921 · 3710867820

    Product information is for general reference and may contain errors. See our Disclaimer.

    This part cross-references / interchanges with the following part numbers:

    CS1177, KS7177, LA2921, US-817, 3710867820

    Frequently Asked Questions

    Is this switch right for the 2003-2006 Suzuki XL-7?

    Yes. Standard Ignition US-817 fits the 2003-2006 Suzuki XL-7, which takes one per vehicle.

    Does this Standard Ignition switch come with keys?

    Yes. Standard Ignition US-817 includes the lock cylinder, two keys and a mounting bracket. Mounting hardware and instructions are not included.

    How many terminals does the connector on this switch have?

    The switch has one rectangular male connector with seven female blade terminals.

    My key is stiff in the ignition. Could the switch be the reason?

    Possibly. A stiff key, or dash power that cuts out as you turn it, can mean a worn ignition switch or lock cylinder.

    Is KS7177 an interchange number for this switch?

    Yes. KS7177 is one of the other-brand numbers that Standard Ignition US-817 replaces.
