Switch for 2002-2006 Nissan Maxima - Standard Ignition US-860

$246.99

Vehicles this part fits

    Part number: US-860
    UPC: 707390942797
    Condition: New
    Weight: 2.10 LBS
    Item Package Quantity: 1
    $246.99
    Adding to cart… The item has been added

    Have questions?

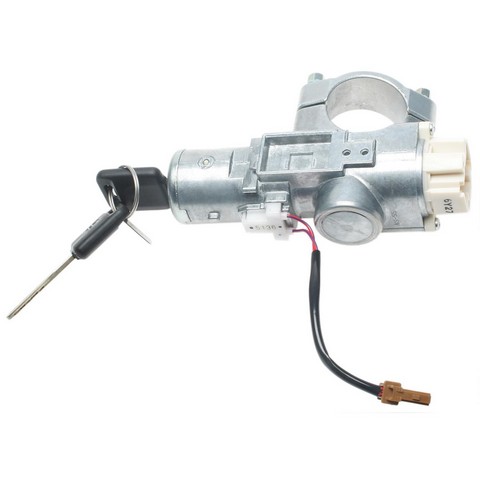

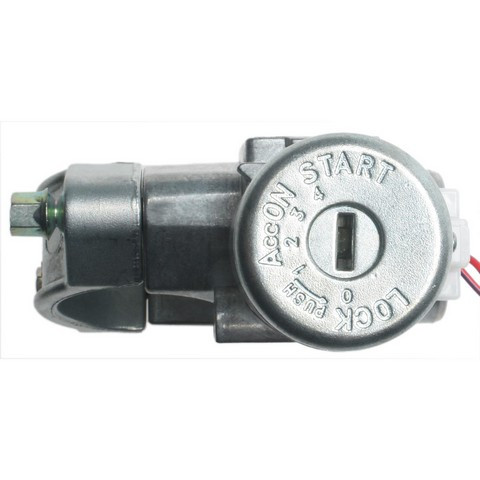

    Standard Ignition Ignition Lock Cylinder and Switch P/N:US-860
    Standard Ignition Ignition Lock Cylinder and Switch P/N:US-860
    $246.99
    $246.99

    Standard Ignition US-860 switch for the 2002-2006 Nissan Maxima carries power to the ignition circuits when you turn the key. This Standard Ignition switch comes with its lock cylinder and mounts on the column.

    • Copper alloy conductors with low resistive losses
    • Every unit is tested for both mechanical and electrical switching performance
    • Coded lock cylinder with two keys
    • Mounting bracket included
    • Two connectors with eight blade terminals

    Quick facts

    • Part: Standard Ignition US-860 switch
    • Fits: 2002-2006 Nissan Maxima
    • Condition: New

    A key that sticks or will not turn, or an engine that does not crank, can mean the switch or lock cylinder is worn. These signs alone do not prove the switch is the problem, since a weak battery can also keep the engine from cranking.

    Fits

    This switch fits the 2002-2006 Nissan Maxima, and the car takes one.

    Specifications

    Fit and size

    • Quantity per vehicle: 1
    • Mounting location: column
    • Connectors: 2, female
    • Terminals: 8, blade type, male and female
    • Keys: 2

    Build and materials

    • Type: ignition switch with coded lock cylinder
    • Finish: aluminum, plastic
    • Mounting bracket: included
    • Condition: New
    • Country of origin: Taiwan

    In the box

    One switch with lock cylinder, two keys and a mounting bracket. Mounting hardware and instructions are not included, so plan on new fasteners.

    Interchange: CS1220 · LS1534 · KS7220 · LA3351 · D87006J028 · D87008J026 · D87008J028

    Product information is for general reference and may contain errors. See our Disclaimer.

    This part cross-references / interchanges with the following part numbers:

    CS1220, LS1534, KS7220, LA3351, D87006J028, D87008J026, D87008J028, US-860

    Frequently Asked Questions

    Is this Maxima switch the right one for the 2002-2006 Nissan Maxima?

    Yes. Standard Ignition US-860 fits the 2002-2006 Nissan Maxima, and the car takes one.

    Does this switch come with keys for the lock cylinder?

    Yes. It comes with two keys for the coded lock cylinder and a mounting bracket. Mounting hardware and instructions are not included.

    How many terminals does the Standard Ignition US-860 switch have?

    The Standard Ignition US-860 has eight blade terminals, spread across two female connectors.

    My key sticks in the ignition. Could this switch be the cause?

    A sticking key can come from a worn lock cylinder, which this unit includes. If the cylinder or the switch is the cause, this part replaces both together.

    Does this switch replace LS1534?

    Yes. LS1534 is one of the numbers this switch replaces.
